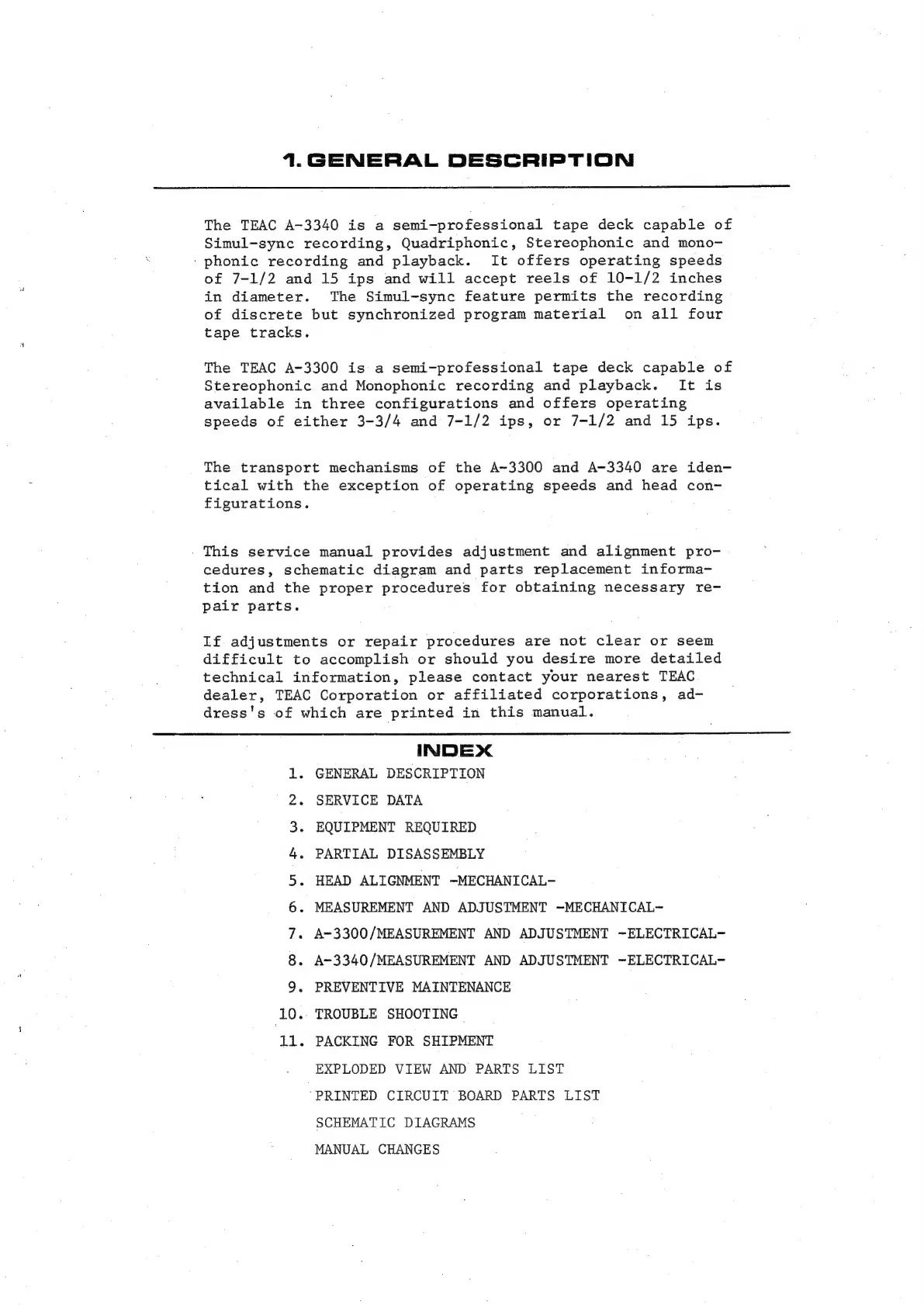

1.GENERAL DESCRIPTION
The TEAC A-3340 is a semi-professional tape deck capable of
Simul-syne recording, Quadriphonic, Stereophonic and mono-
- phonic recording and playback. It offers operating speeds
of 7-1/2 and 15 ips and will accept reels of 10-1/2 inches
in diameter. The Simul-sync feature permits the recording
of discrete but synchronized program material on all four
tape tracks.
The TEAC A-3300 is a semi-professional tape deck capable of
Stereophonic and Monophonic recording and playback. It is
available in three configurations and offers operating
speeds of either 3-3/4 and 7-1/2 ips, or 7-1/2 and 15 ips.
The transport mechanisms of the A-3300 and A-3340 are iden-
tical with the exception of operating speeds and head con-
figurations.
This service manual provides adjustment and alignment pro-
cedures, schematic diagram and parts replacement informa-
tion and the proper procedures for obtaining necessary re-
pair parts.
If adjustments or repair procedures are not clear or seem
difficult to accomplish or should you desire more detailed
technical information, please contact your nearest TEAC
dealer, TEAC Corporation or affiliated corporations, ad-
dress's of which are printed in this manual.
INDEX
GENERAL DESCRIPTION
SERVICE DATA
. EQUIPMENT REQUIRED
PARTIAL DISASSEMBLY
. HEAD ALIGNMENT -MECHANICAL-
. MEASUREMENT AND ADJUSTMENT -MECHANICAL-
A-3300/MEASUREMENT AND ADJUSTMENT -ELECTRICAL-
A~3340/MEASUREMENT AND ADJUSTMENT -ELECTRICAL-
PREVENTIVE MAINTENANCE
TROUBLE SHOOTING
. PACKING FOR SHIPMENT
EXPLODED VIEW AND PARTS LIST
‘PRINTED CIRCUIT BOARD PARTS LIST
SCHEMATIC DIAGRAMS
MANUAL CHANGES
