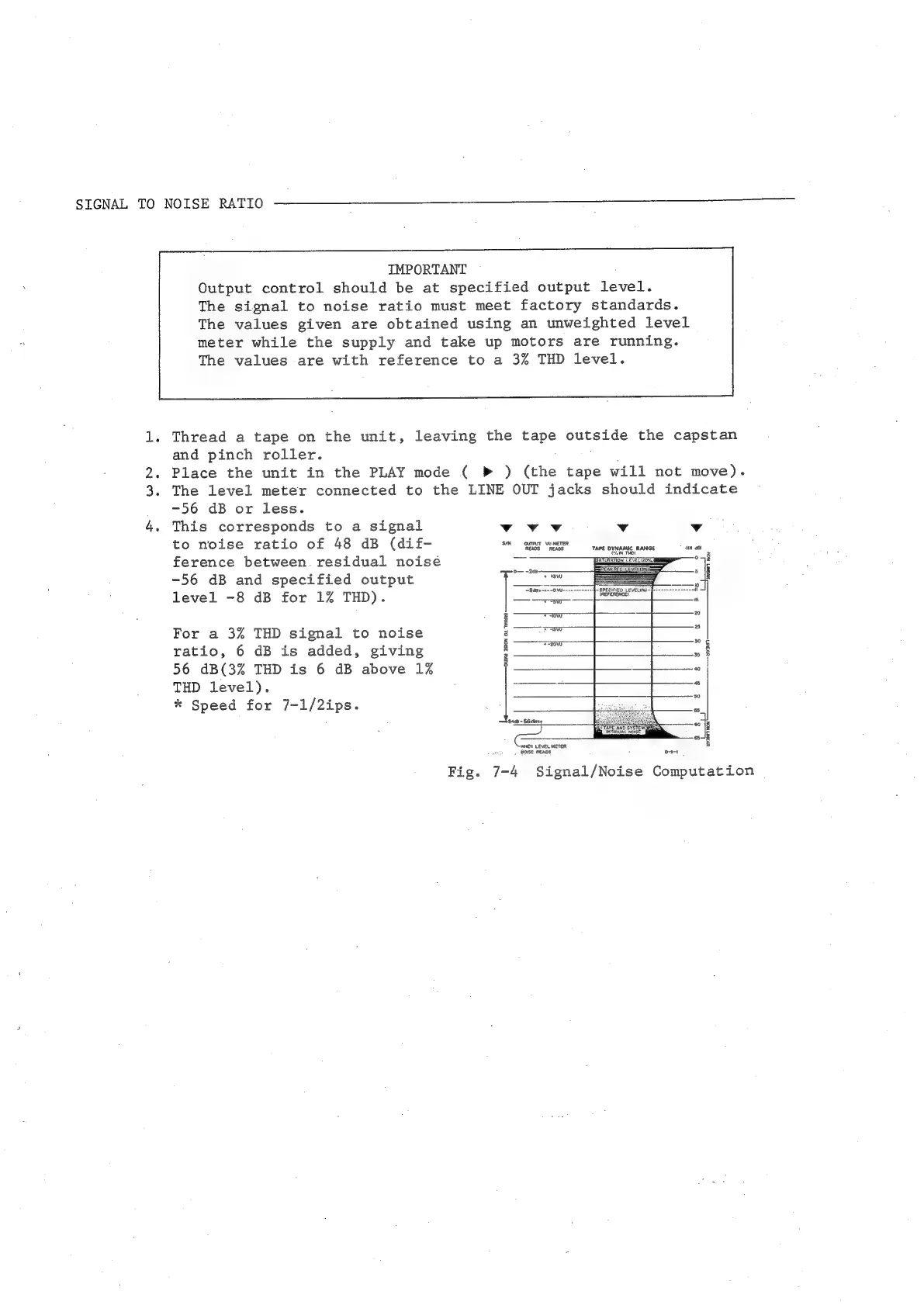

Teac A-3340 - SIGNAL-TO-NOISE RATIO MEASUREMENT

SIGNAL
TO
NOLSE
RATIO
—-WWHHNWWWH_—_—.nrvwoO
Orn»
IMPORTANT
Output control should be at specified output level.
The signal to noise ratio must meet factory standards.
The values given are obtained using an unweighted level
meter while the supply and take up motors are running.
The values are with reference to a 3% THD level.
1. Thread a tape on the unit, leaving the tape outside the capstan
and pinch roller. ae
2. Place the unit in the PLAY mode ( P» ) (the tape will not move).
3. The level meter connected to the LINE OUT jacks should indicate
-56 dB or less.
4. This corresponds to a signal vvy v v
to noise ratio of 48 dB (dif- . oe eae TAPE DYNAMIC RANGE * IN 38)
ference between. residual noise ai “E
: * iz a
-56 dB and specified output pra 50
level -8 dB for 1% THD). icra aed oa :
For a 3% THD signal to noise
ratio, 6 dB is added, giving
56 dB(3% THD is 6 dB above 1%
THD level).
* Speed for 7-1/2ips.
Fig. 7-4 Signal/Noise Computation
