Teac A-3340 - TROUBLESHOOTING GUIDE; MALFUNCTION GUIDE

NOTE

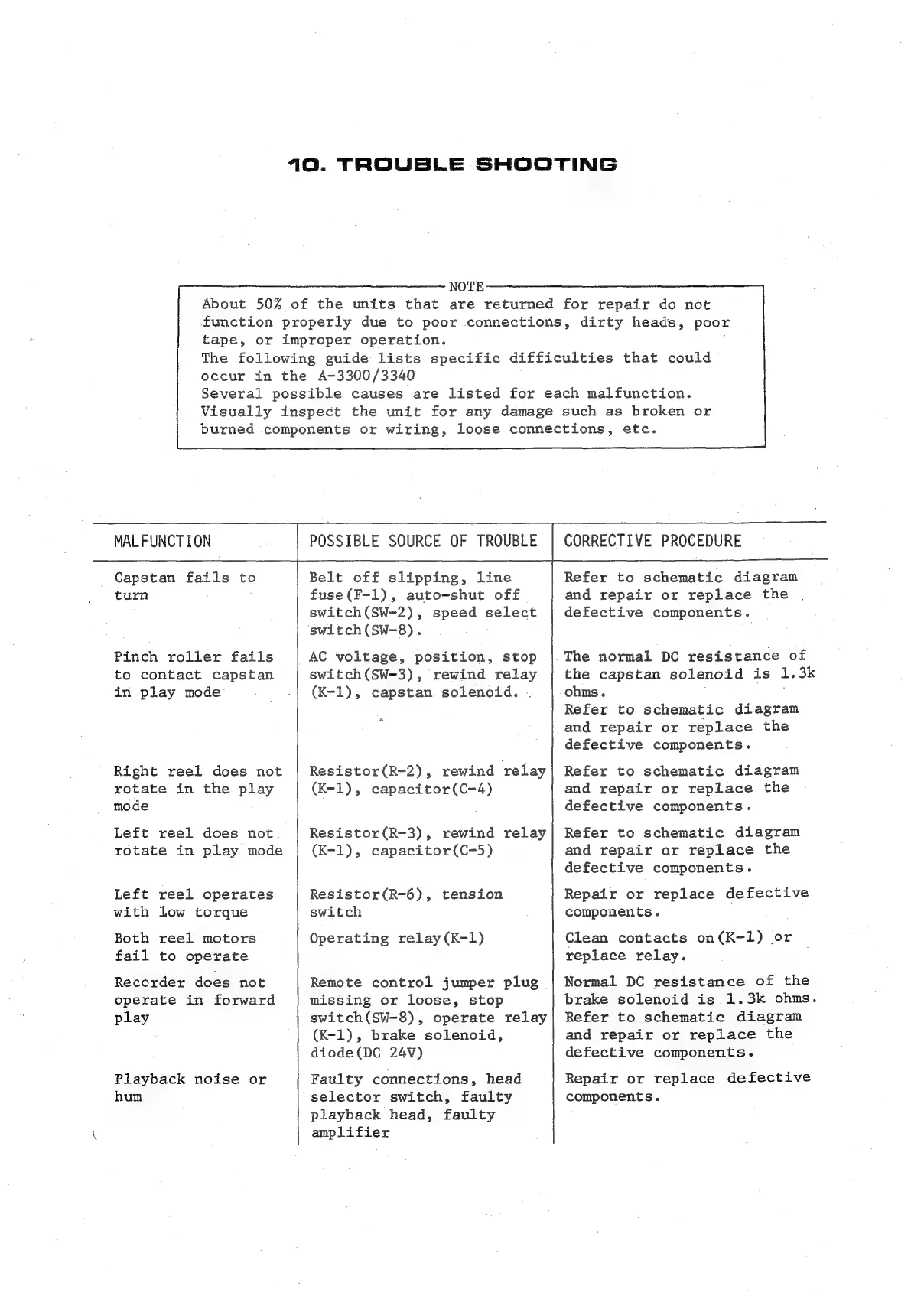

10. TROUBLE SHOOTING
About 50% of the units that are returned for repair do not
function properly due to poor connections, dirty heads, poor
tape, or improper operation.
The following guide lists specific difficulties that could
occur in the A-3300/3340
Several possible causes are listed for each malfunction.
Visually inspect the unit for any damage such as broken or
burned components or wiring, loose connections, etc.
MALFUNCTION
POSSIBLE SOURCE OF TROUBLE
Capstan fails to
turn
Pinch roller fails
to contact capstan
in play mode
Right reel does not
rotate in the play
mode
Left reel does not
rotate in play mode
Left reel operates
with low torque
Both reel motors
fail to operate
Recorder does not
operate in forward
play
Playback noise or
hum
Belt off slipping, line
fuse (F-1), auto-shut off
switch(SW-2), speed select
switch(SW-8).
AC voltage, position, stop
switch(SW-3), rewind relay
(K-1), capstan solenoid. .
Resistor(R-2), rewind relay
(K-1), capacitor(C-4)
Resistor(R-3), rewind relay
(K-1), capacitor(C-5)
Resistor(R-6), tension
switch
Operating relay (K-1)
Remote control jumper plug
missing or loose, stop
switch(SW-8), operate relay
(K-1), brake solenoid,
diode(DC 24V)
Faulty connections, head
selector switch, faulty
playback head, faulty
amplifier
CORRECTIVE PROCEDURE
Refer to schematic diagram
and repair or replace the
defective components.
The normal DC resistance of
the capstan solenoid is 1.3k
ohms.
Refer to schematic diagram
and repair or replace the
defective components.
Refer to schematic diagram
and repair or replace the
defective components.
Refer to schematic diagram
and repair or replace the
defective components.
Repair or replace defective
components.
Clean contacts on(K-1) or
replace relay.
Normal DC resistance of the
brake solenoid is 1.3k ohms.
Refer to schematic diagram
and repair or replace the
defective components.
Repair or replace defective
components.
