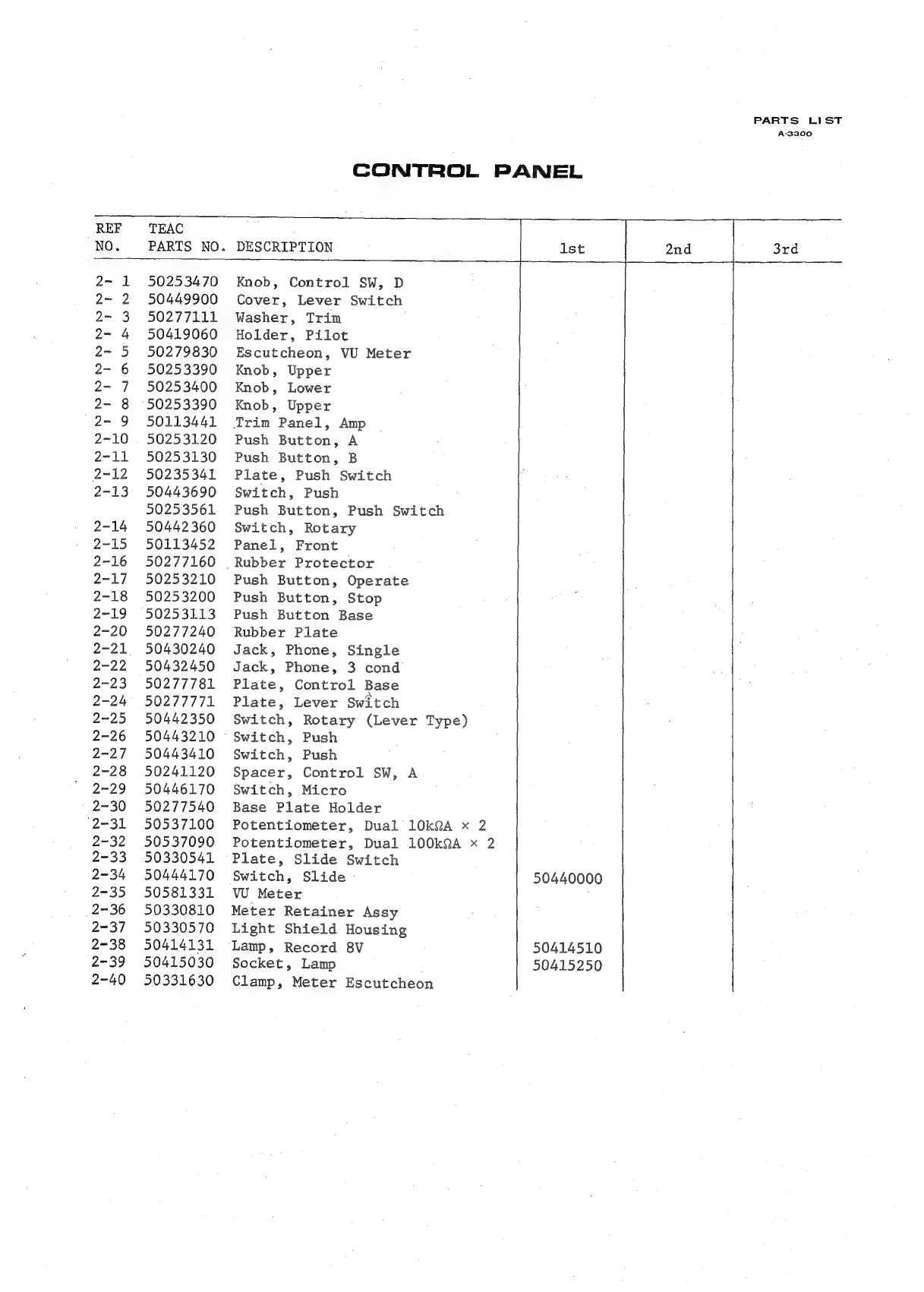

Teac A-3340 - Page 48

CONTROL PANEL
PARTS LIST
A-3300
TEAC ,
PARTS NO. DESCRIPTION
1st I 2nd
+
3rd
No ht
j |
bh
CWOON AU RWN Ee
ee
ain NB
2-13
2-14
2-18
2-19
2-20
2-21
2-22
2-23
2-24
2-25
2-26
2-27
2-28
2-29
2-30
(2-31
2-32
2-33
2-34
2-35
2-36
2-37
2-38
2-39
2-40
50253470 Knob, Control SW, D
50449900 Cover, Lever Switch
50277111 Washer, Trim
50419060 Holder, Pilot
50279830 Escutcheon, VU Meter
50253390 Knob, Upper
50253400 Knob, Lower
°50253390 Knob, Upper
50113441 Trim Panel, Amp
50253120 Push Button, A
50253130 Push Button, B
50235341 Plate, Push Switch
50443690 Switch, Push
50253561 Push Button, Push Switch
50442360 Switch, Rotary
50113452 Panel, Front
50277160 Rubber Protector
50253210 Push Button, Operate
50253200 Push Button, Stop
50253113 Push Button Base
50277240 Rubber Plate
50430240 Jack, Phone, Single
50432450 Jack, Phone, 3 cond
50277781 Plate, Control Base
50277771 Plate, Lever Switch
50442350 Switch, Rotary (Lever Type)
50443210 Switch, Push
50443410 Switch, Push
50241120 Spacer, Control SW, A
50446170 Switch, Micro
50277540 Base Plate Holder
50537100 Potentiometer, Dual 10kR2A x 2
50537090 Potentiometer, Dual 1LOOkMA x 2
50330541 Plate, Slide Switch
50444170 Switch, Slide
50581331 VU Meter
50330810 Meter Retainer Assy
50330570 Light Shield Housing
50414131 ‘Lamp, Record 8V
50415030 Socket, Lamp
50331630
Clamp,
Meter
Escutcheon
50440000
50414510
50415250
+
