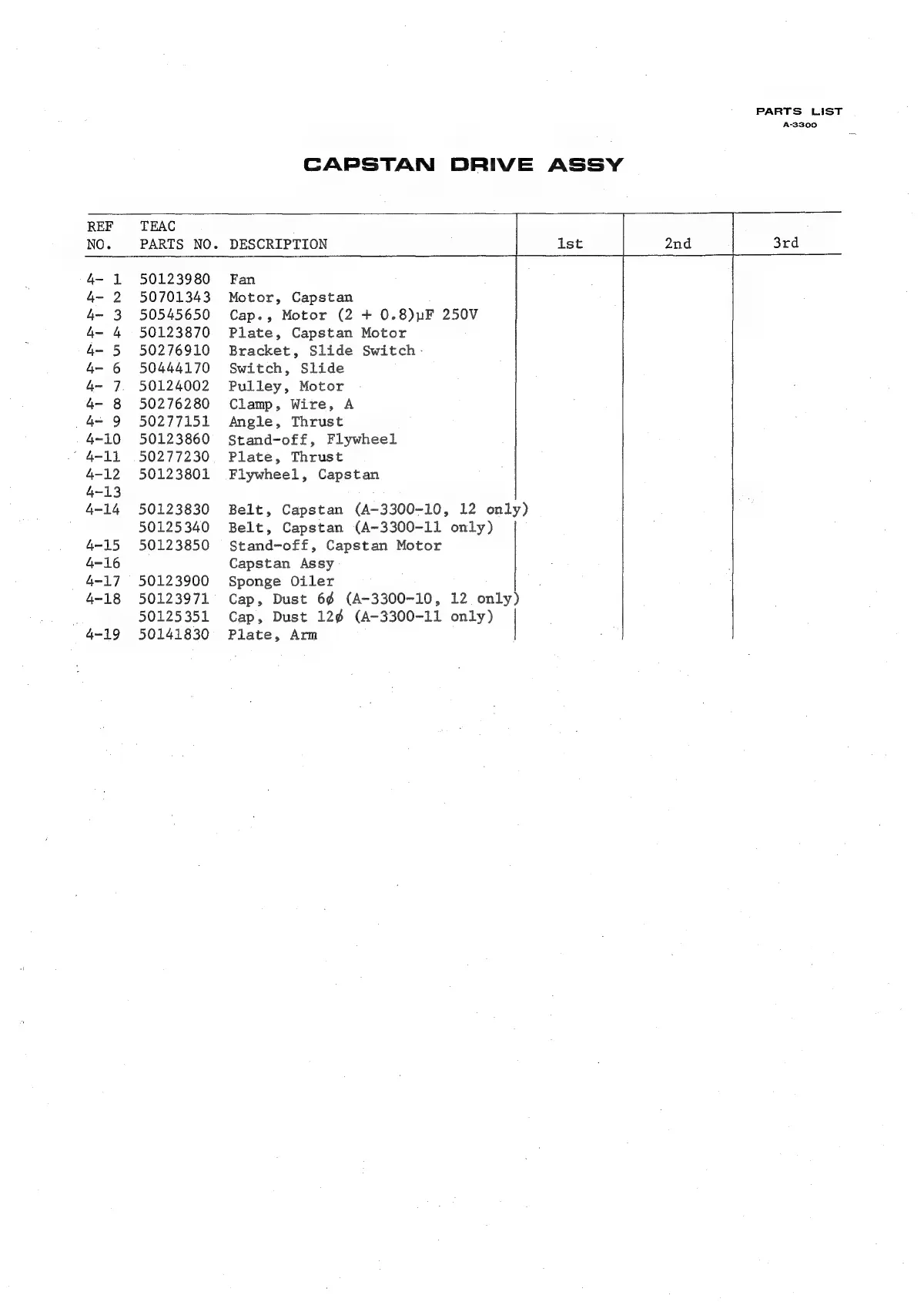

CAPSTAN DRIVE ASSY
TEAC
50123980
50701343
50545650
50123870
50276910
50444170
50124002
50276280
50277151
50123860
50277230
50123801
50123830
50125340
50123850
50123900
50123971
50125351
50141830
PARTS NO.
DESCRIPTION
Fan
Motor, Capstan
Cap., Motor (2 + 0.8)uF 250V
Plate, Capstan Motor
Bracket, Slide Switch.
Switch, Slide
Pulley, Motor
Clamp, Wire, A
Angle, Thrust
Stand-off, Flywheel
Plate, Thrust
Flywheel, Capstan
Belt, Capstan (A-3300-10, 12 only)
Belt, Capstan (A-3300-11 only)
Stand-off, Capstan Motor
Capstan Assy
Sponge Oiler
Cap, Dust 6¢ (A-3300-10, 12 only)
Cap, Dust 12¢ (A-3300-11 only)
Plate, Arm
PARTS LIST
A-3300
