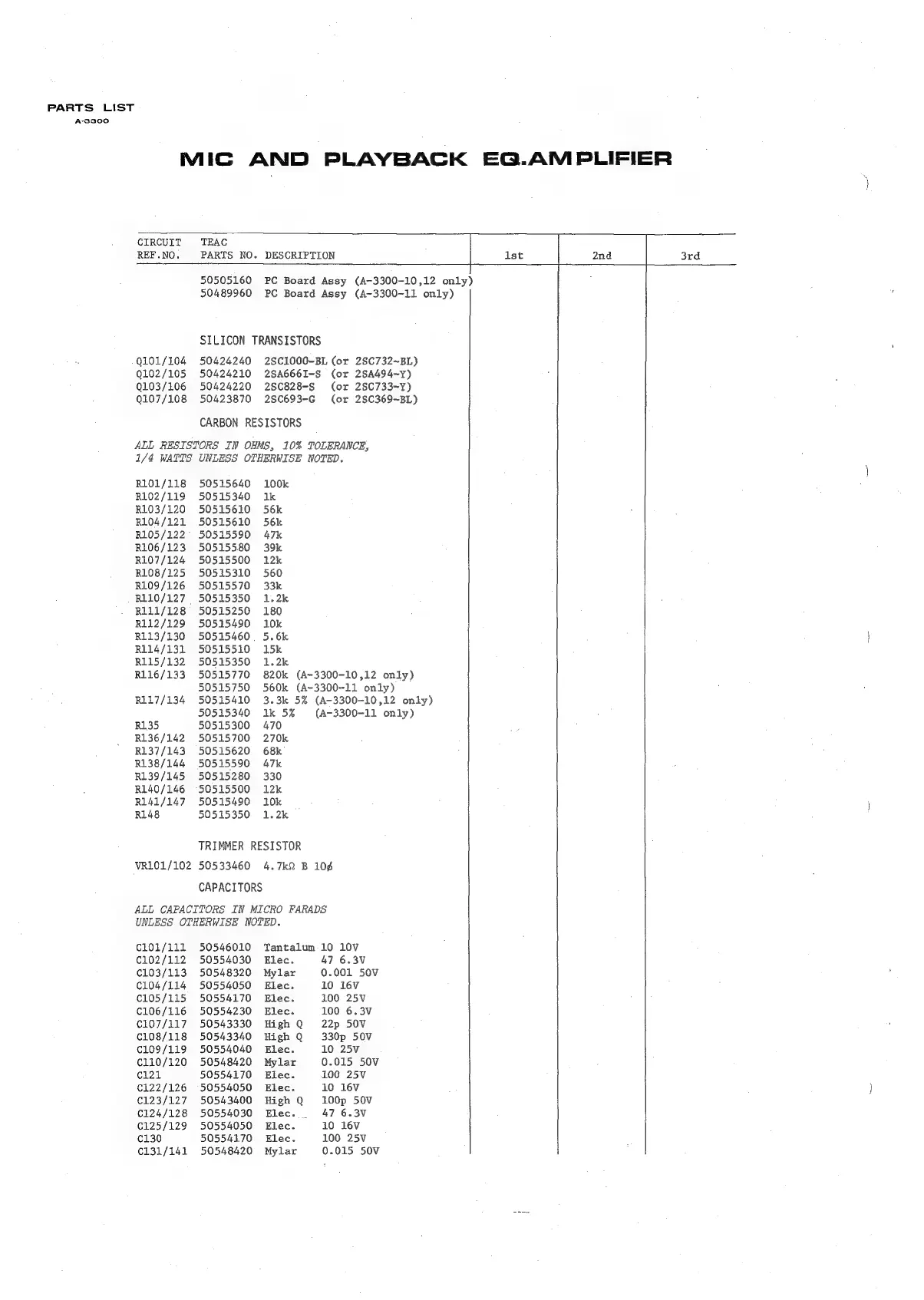

Teac A-3340 - MIC AND PLAYBACK EQ.AMPLIFIER PARTS

PARTS LIST
A-3300
MIC AND PLAYBACK EG.AMPLIFIER
CIRCUIT TEAC
REF.NO. PARTS NO. DESCRIPTION ist 2nd 3rd
50505160 PC Board Assy (A-3300-10,12 only)
50489960 PC Board Assy (A-3300-11 only)
SILICON TRANSISTORS
Q101/104 50424240 28C1000-BL (or 28C732~BL)
Q102/105 50424210 2SA666I-S (or 2SA494~Y)
Q103/106 50424220 28C828-S (or 28C733-Y)
Ql07/108 50423870 28C693-G (or 28C369~BL)
CARBON RESISTORS
ALL RESISTORS IN OHMS, 10% TOLERANCE,
1/4 WATTS UNLESS OTHERWISE NOTED.
R1O1/118
R102/119
R103/120
RLO4/121
R105/122°
R106/123
R107/124
R108/125
R109/126
R110/127
R111/128
R112/129
R113/130
R114/131
R115/132
R116/133
RL17/134
R135
R136/142
RL37/143
R138/144
R139/145
R140/146
R141/147
R148
50515640
50515340
50515610
50515610
50515590
50515580
50515500
50515310
50515570
50515350
50515250
50515490
50515460 |
50515510
50515350
50515770
50515750
50515410
50515340
50515300
50515700
50515620
50515590
50515280
50515500
50515490
50515350
100k
1k
56k
56k
47k
39k
12k
560
33k
1.2k
180
10k
5.6k
15k
1.2k
820k (A~3300-10,12 only)
560k (A~3300-11 only)
3.3k 5% (A-3300-10,12 only)
ik 52% (A-3300-11 only)
470
270k
68k
47k
330
12k
10k
1.2k
TRIMMER RESISTOR
VR101/102 50533460 4.7k2 B 10¢
CAPACITORS
ALL CAPACITORS IN MICRO FARADS
UNLESS OTHERWISE WOTED.
C101/111 50546010 Tantalum 10 10V
€102/112 50554030 Elec. 47 6.3V
€103/113 50548320 Mylar 0.001 50V
C104/114 50554050 Elec. 10 16V
€105/115 50554170 Elec. 100 25V
C106/116 50554230 Elec. 100 6.3V
C107/117 50543330 High Q 22p 50V
C108/118 50543340 High Q 330p 50V
€109/119 50554040 Elec. 10 25V
C110/120 50548420 Mylar 0.015 50V
e121 50554170 Elec. 100 25V
€122/126 50554050 Elec. 10 16V
€123/127 50543400 High Q 100p 50V
C124/128 50554030 Elec. 47 6.3V
C125/129 50554050 Elec. 10 16V
C130 50554170 Elec. 100 25V
C131/141 50548420
Mylar 0.015 50V
