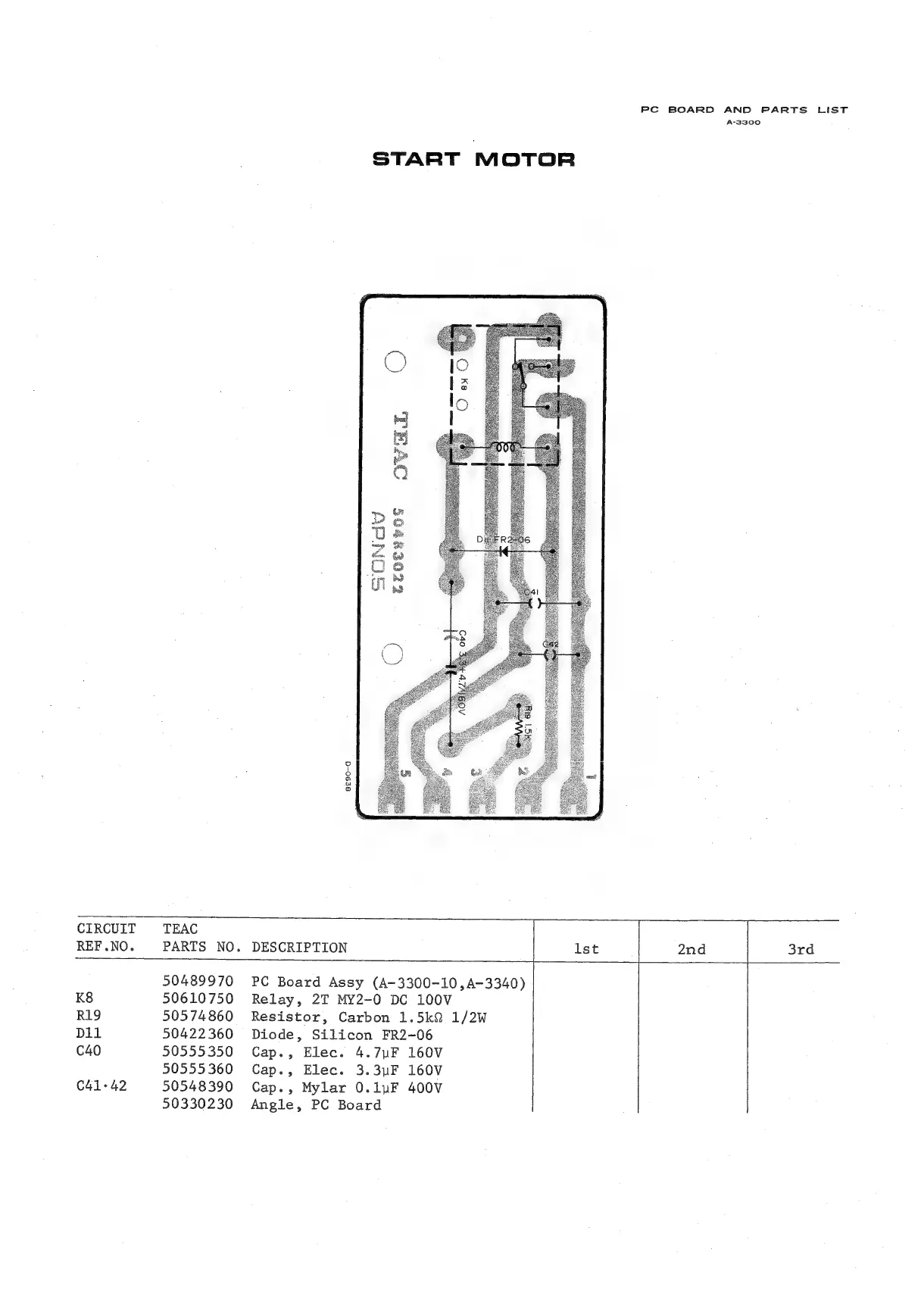

Teac A-3340 - START MOTOR PC BOARD AND PARTS LIST

PC BOARD AND PARTS LIST
A-3300
START MOTOR
©
Ov aL
DS
Tl &
Og
Us
g£90-0
CIRCUIT TEAC
REF.NO.
PARTS
NO.
DESCRIPTION
lst
2nd
3rd
50489970
PC
Board Assy
(A-3300-10,A-3340)
K8 50610750 Relay, 2T MY2-0 DC 100V
R19 50574860 Resistor, Carbon 1.5kQ 1/2W
DIL 50422360 Diode, Silicon FR2-06
C40 50555350 Cap., Elec. 4.7uF 160V
50555360 Cap., Elec. 3.3uF 160V
C41-42 50548390 Cap., Mylar 0.1uF 400V
50330230 Angle, PC Board
