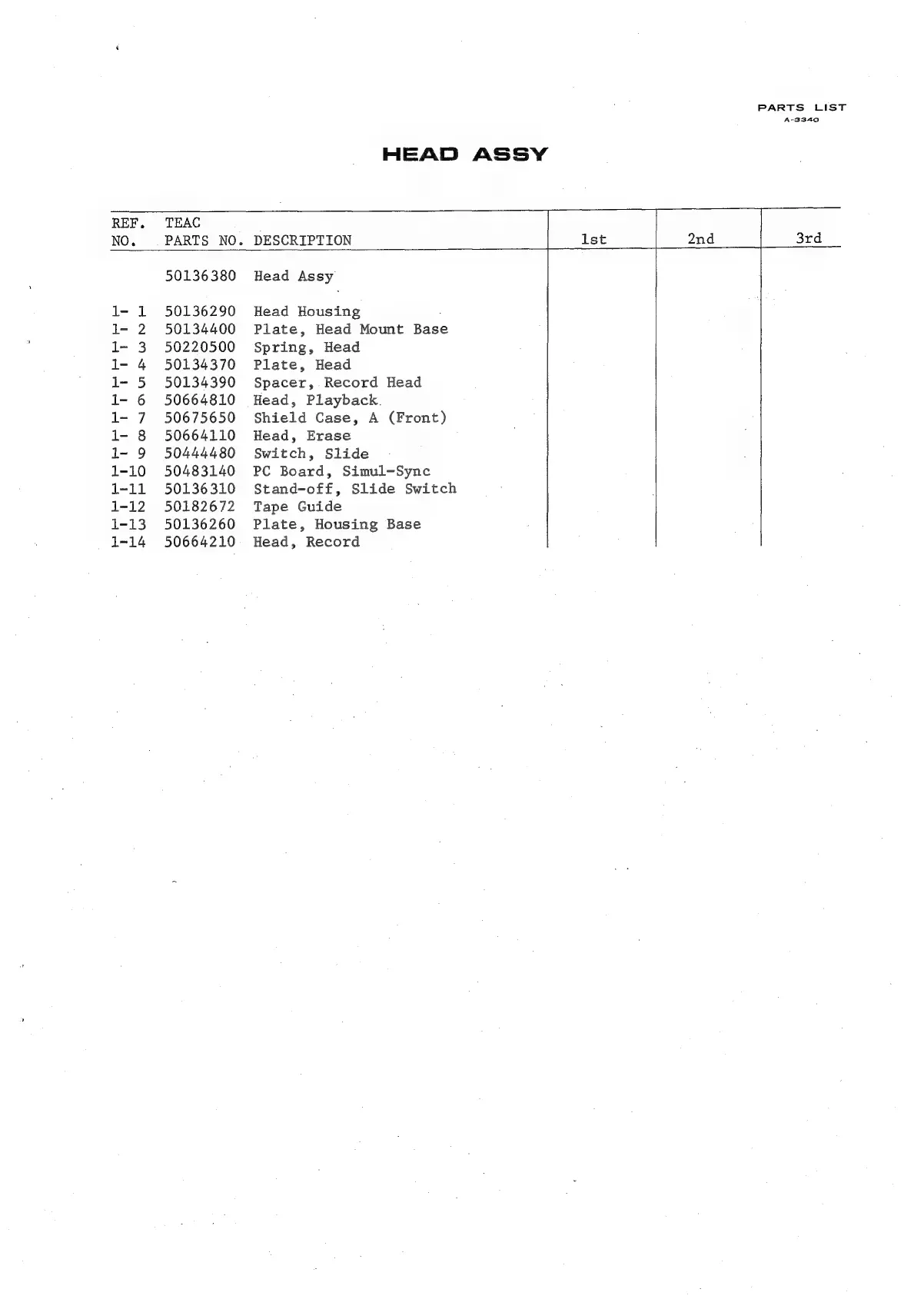

Teac A-3340 - HEAD CONFIGURATION DETAILS

HEAD ASSY
PARTS LIST
A-3340
REF.
NO.
TEAC
PARTS NO. DESCRIPTION
lst
2nd
i
I
1+
rm
ke
OOAN DNL WME
50136380
50136290
50134400
50220500
50134370
50134390
50664810
50675650
50664110
50444480
50483140
50136310
50182672
50136260
50664210
Head Assy
Head Housing
Plate, Head Mount Base
Spring, Head
Plate, Head
Spacer, Record Head
Head, Playback.
Shield Case, A (Front)
Head, Erase
Switch, Slide
PC Board, Simul-Synec
Stand-off, Slide Switch
Tape Guide
Plate, Housing Base
Head, Record
3rd
