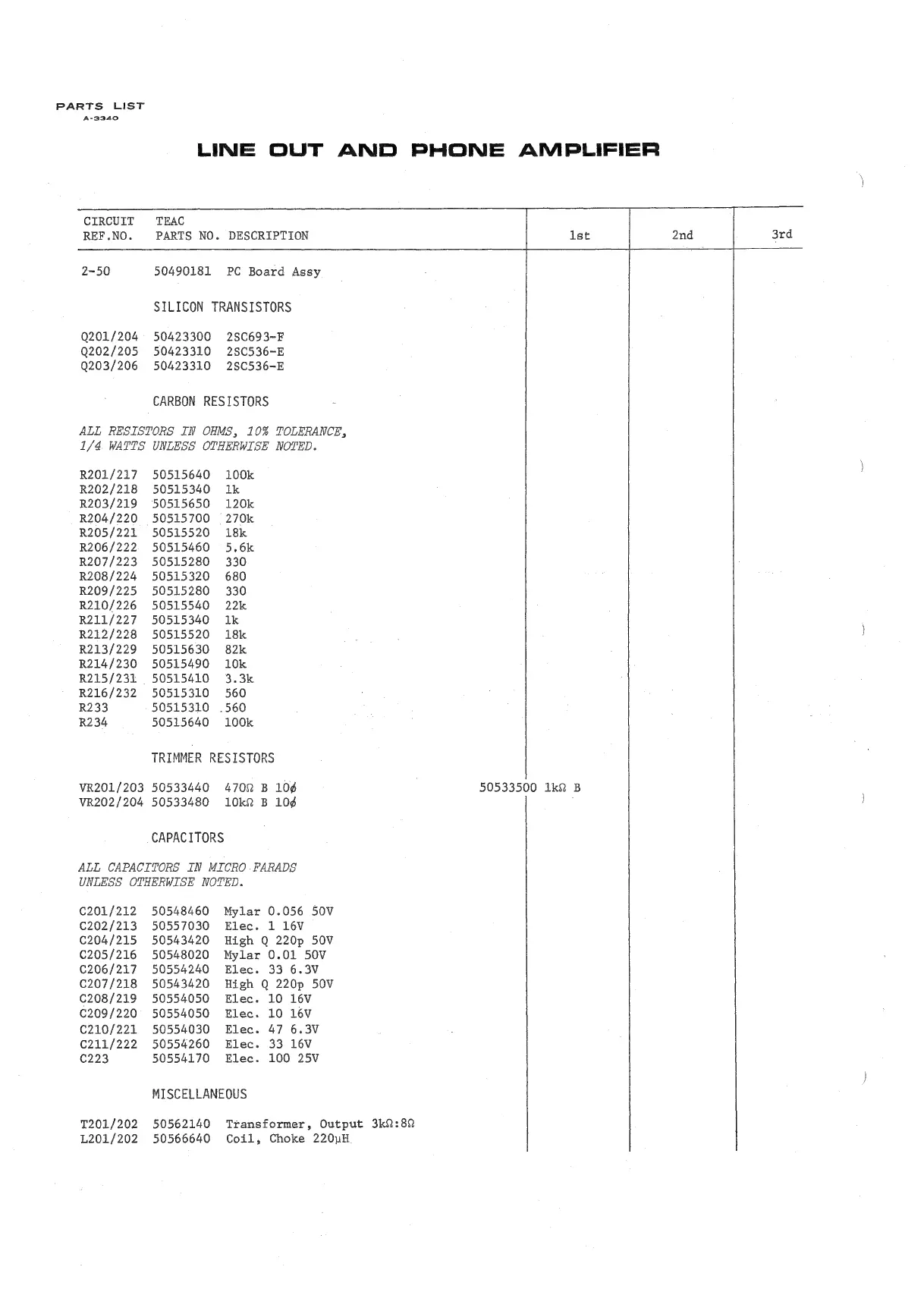

PARTS LIST
A-3340
LINE OUT AND PHONE AMPLIFIER
CIRCUIT TEAC
REF.NO. PARTS NO. DESCRIPTION lst 2nd 3rd
2~50 50490181 PC Board Assy
SILICON TRANSISTORS
Q201/204 50423300 25C693~F
Q202/205 50423310 2SC536~E
Q203/206 50423310 28C536-E
CARBON RESISTORS -
ALL RESISTORS IN OHMS, 10% TOLERANCE,
1/4 WATTS UNLESS OTHERWISE NOTED.
R201/217 50515640 100k
R202/218 50515340 ik
R203/219 50515650 120k
R204/220 50515700 270k
R205/221 50515520 18k
R206/222 50515460 5.6k
R207/223 50515280 330
R208/224 50515320 680
R209/225 50515280 330
R210/226 50515540 22k
R211/227 50515340 1k
R212/228 50515520 18k
R213/229 50515630 82k
R214/230 50515490 10k
R215/231 50515410 3.3k
R216/232 50515310 560
R233 50515310 .560
R234 50515640 100k
TRINMER RESISTORS
VR201/203 50533440 4702 B 10¢ 50533500 1kQ2 B
VR202/204 50533480 10k2 B 10¢
CAPACITORS
ALL CAPACITORS IN MICRO FARADS
UNLESS OTHERWISE NOTED.
C201/212 50548460 Mylar 0.056 50V
C202/213 50557030 Elec. 1 16V
€204/215 50543420 High Q 220p 50V
€205/216 50548020 Mylar 0.01 50V
C206/217 50554240 Elec. 33 6.3V
C207/218 50543420 High Q 220p 50V
C208/219 50554050 Elec. 10 16V
C209/220 50554050 Elec. 10 16V
C210/221 50554030 Elec. 47 6.3V
C211/222 50554260 Elec. 33 16V
C223 50554170 Elec. 100 25V
MISCELLANEOUS
T201/202 50562140 Transformer, Output 3k2:82
L201/202 50566640 Coil, Choke 220uH
