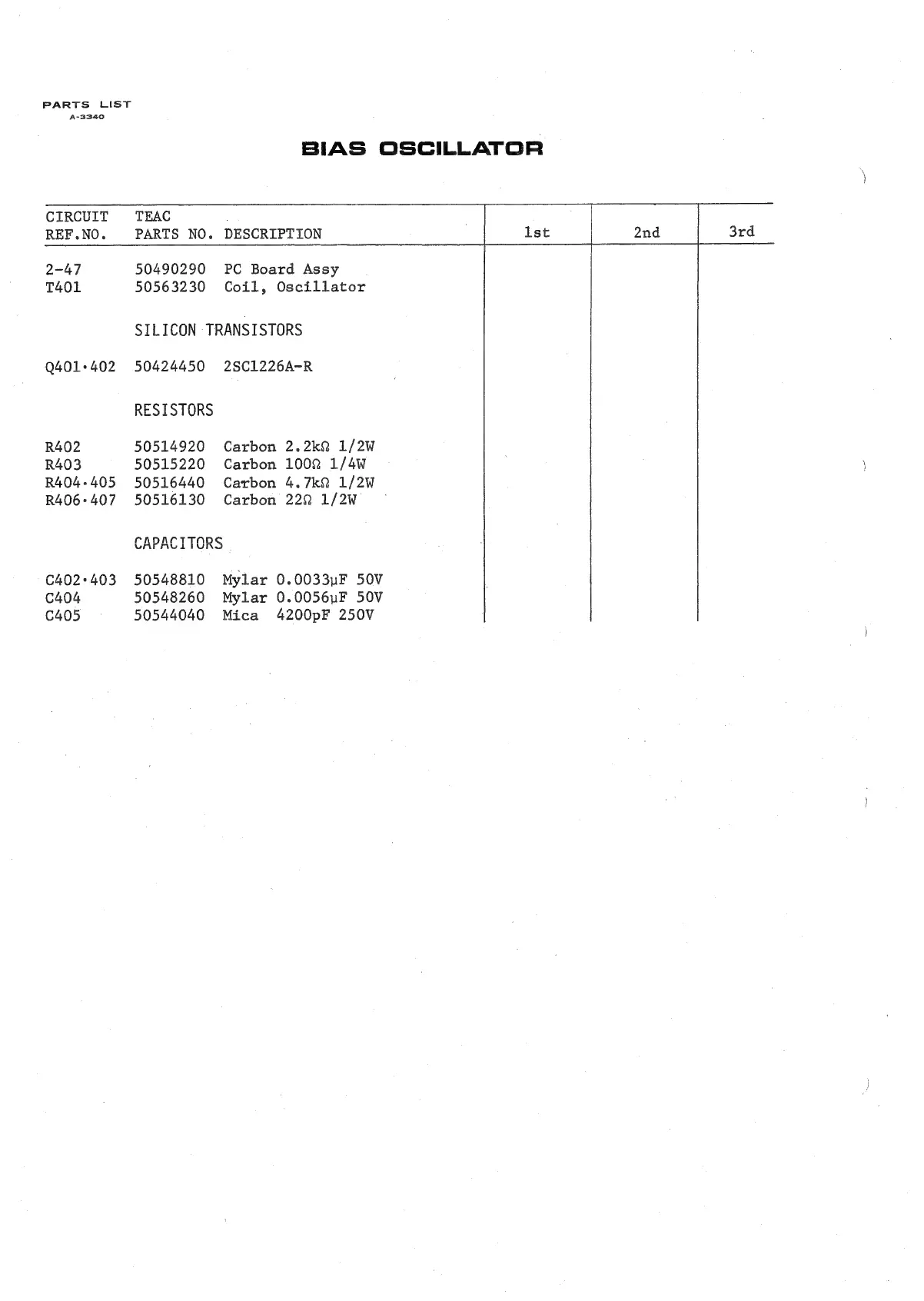

Teac A-3340 - BIAS OSCILLATOR PARTS LIST

PARTS LIST
A-3340
BIAS OSCILLATOR
CIRCUIT TEAC
REF.NO. PARTS NO. DESCRIPTION
2-47 50490290 PC Board Assy
T401 50563230 Coil, Oscillator
SILICON TRANSISTORS
Q401-402 50424450 2SC1226A-R
RESISTORS
R402 50514920 Carbon 2.2k2 1/2W
R403 50515220 Carbon 1002 1/4W
R404-405 50516440 Carbon 4.7k2 1/2W
R406-407 50516130 Carbon 222 1/2W ;
CAPACITORS
C402+403 50548810 Mylar 0.0033uF 50V
C404 50548260 Mylar 0.0056uF 50V
C405 50544040 Mica 4200pF 250V
