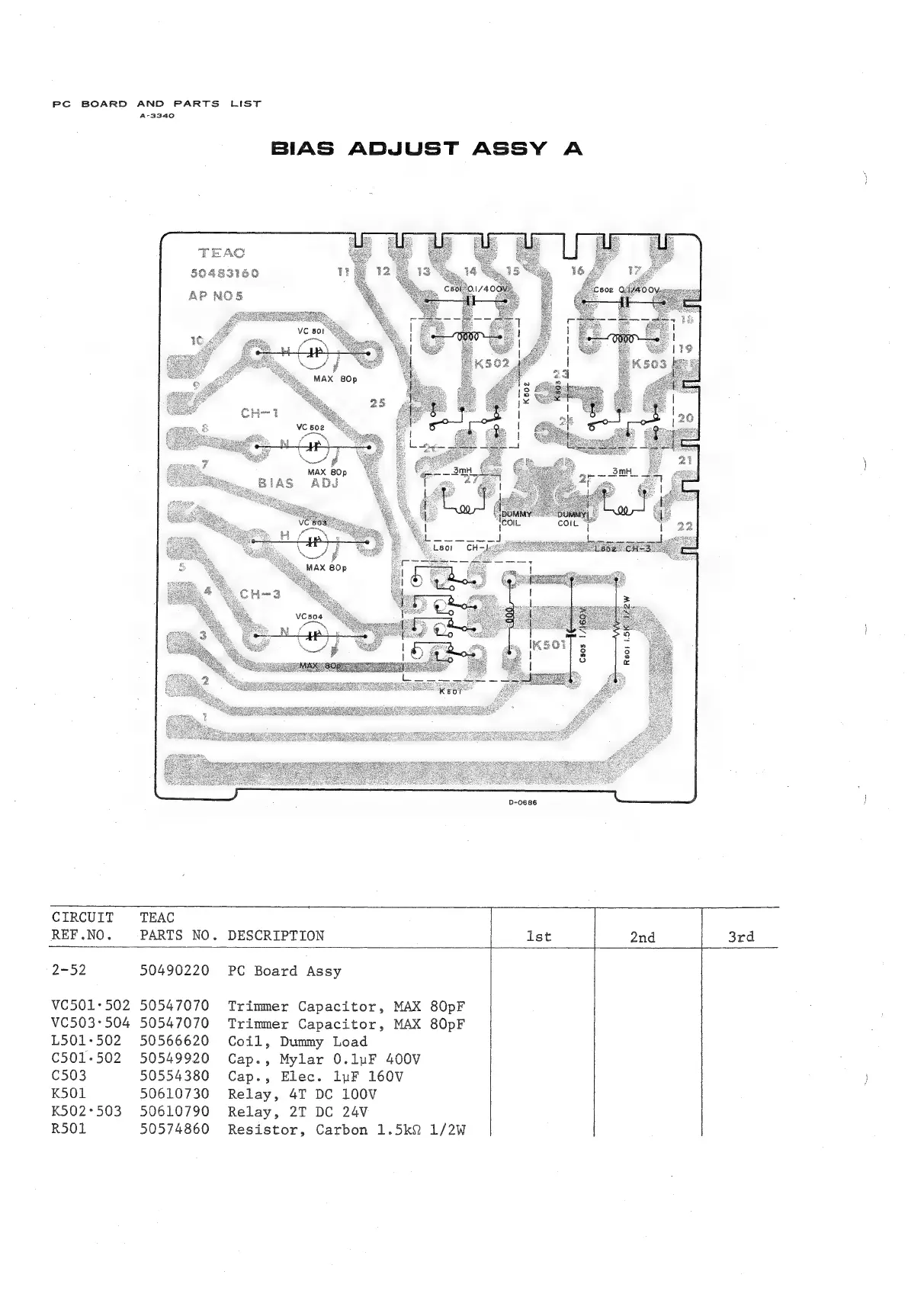

Teac A-3340 - BIAS ADJUST ASSY PARTS LIST

PC BOARD AND PARTS LIST
A-3340
BIAS ADJUST ASSY
TEAG
SO4E3160
=
Ms
Soo
iQ
3
o
a
Ist
2nd
Trimmer Capacitor, MAX 80pF
Trimmer Capacitor, MAX 80pF
CIRCUIT TEAC
REF .NO. PARTS NO. DESCRIPTION
2-52 50490220 PC Board Assy
VC501°502 50547070
VC503°504 50547070
L501:502 50566620 Coil, Dummy Load
C501-502 50549920 Cap., Mylar 0.1uF 400V
C503 50554380 Cap., Elec. luF 160V
K501 50610730 Relay, 4T DC 100V
K502°503 50610790 Relay, 2T DC 24V
R501 50574860
Resistor, Carbon 1.5k2 1/2W
3rd
