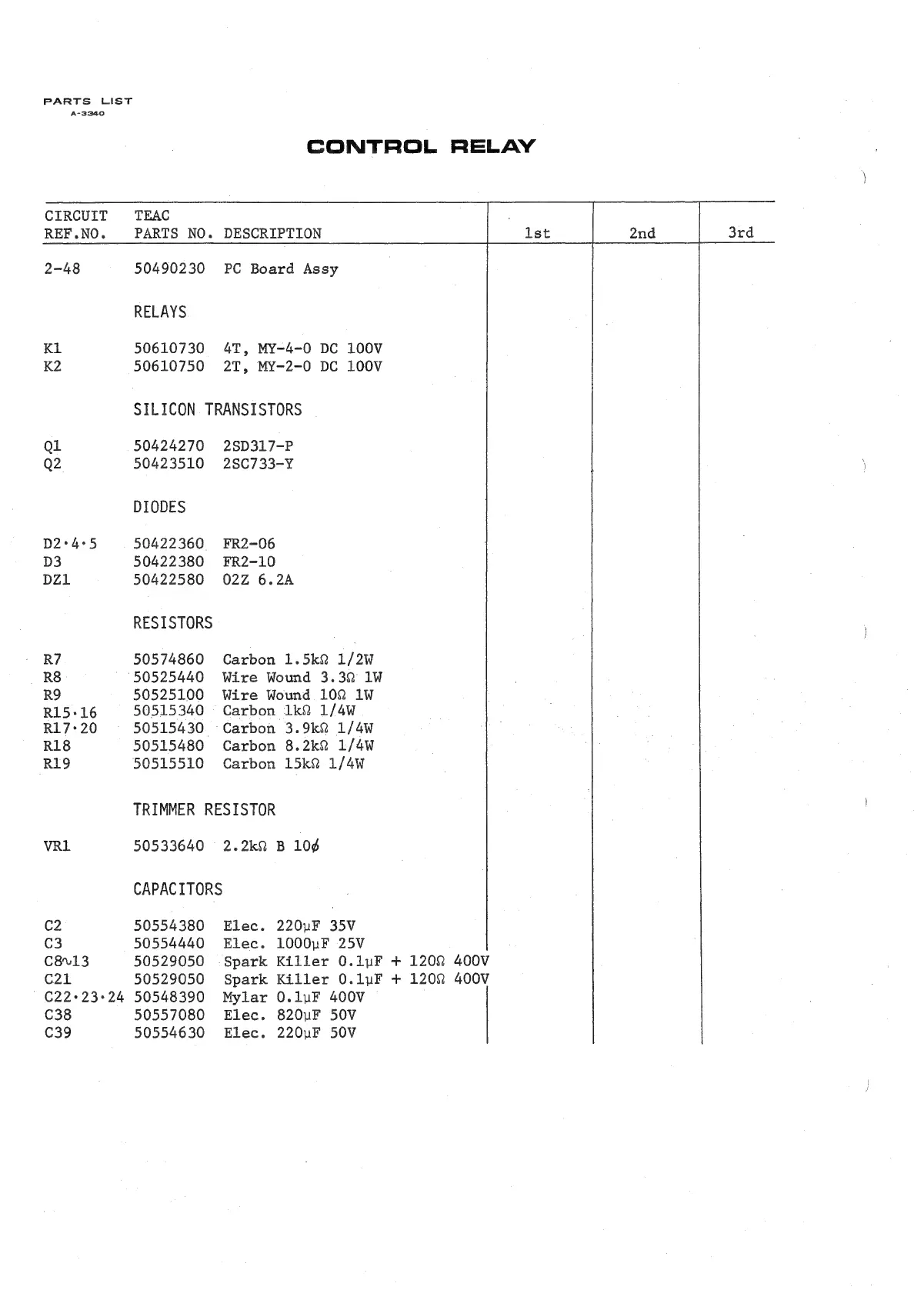

Teac A-3340 - CONTROL RELAY PARTS LIST

PARTS LIST
A-3340
CONTROL RELAY
CIRCUIT TEAC
REF .NO. PARTS NO. DESCRIPTION
2-48 50490230 PC Board Assy
RELAYS
Kl 50610730 4T, MY-4-0 DC 100V
K2 50610750 2T, MY-2-0 DC 100V
SILICON TRANSISTORS
Qi 50424270 2SD317-P
Q2 50423510 2SC733-Y
DIODES
D2°4°5 50422360 FR2-06
D3 50422380 FR2-10
DZ1 50422580 02Z 6.2A
RESISTORS
R7 50574860 Carbon 1.5kQ 1/2W
R8 50525440 Wire Wound 3.32 1W
R9 50525100 Wire Wound 102 1W
R15-16 50515340 Carbon 1k2 1/4W
R17-20 50515430 Carbon 3.9k2 1/4W
R18 50515480 Carbon 8.2kQ 1/4W
RI9 50515510 Carbon 15k22 1/4W
TRIMMER RESISTOR
VRL 50533640 2.2k2 B 10¢
CAPACITORS
C2 50554380 Elec. 220uF 35V
C3 50554440 Elec. 1000uF 25V
C813 50529050 Spark Killer 0.1uF + 1202 400V
C21 50529050 Spark Killer 0.1yF + 1202 400V
C22-23-24 50548390 Mylar 0.1yuF 400V
C38 50557080 Elec. 820uF 50V
C39 50554630 Elec. 220uF 50V
