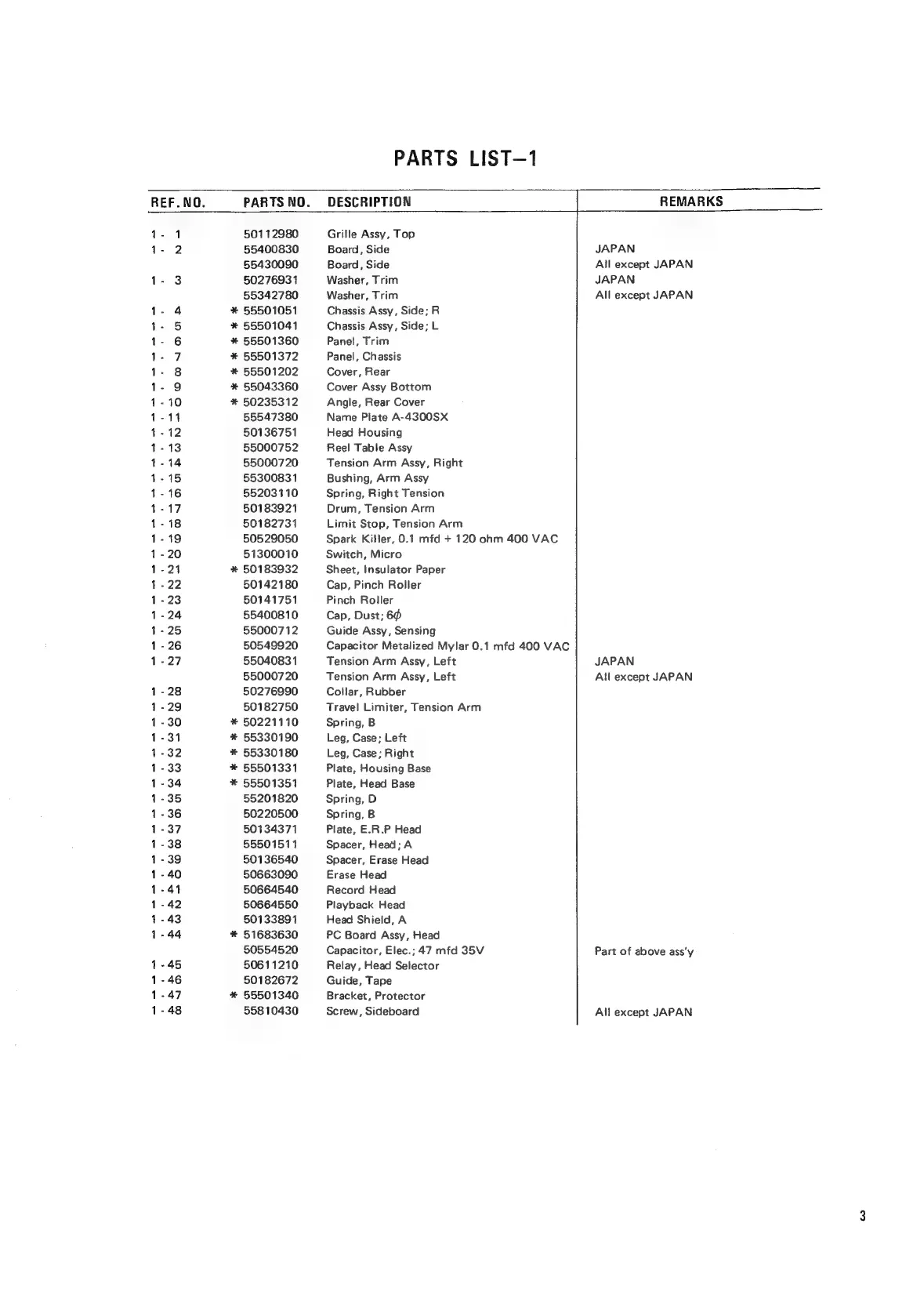

PARTS LIST—1
REF.NQ. PARTS NO. DESCRIPTION REMARKS
———
+ 4 50112980 Grille Assy, Top
1-2 55400830 Board, Side JAPAN
55430090 Board, Side All except JAPAN
1-3 50276931 Washer, Trim JAPAN
55342780 Washer, Trim All except JAPAN
1-4 * 55501051 Chassis Assy, Side; R
1. 5 * 55501041 Chassis Assy, Side; L
1- 6 * 55501360 Panel, Trim
1-7 * 55501372 Panel, Chassis
1- 8 * 55501202 Cover, Rear
1-9 * 55043360 Cover Assy Bottom
1-10 * 50235312 Angle, Rear Cover
1-11 55547380 Name Piate A-4300SX
1-12 50136751 Head Housing
1-13 55000752 Reel Table Assy
1-14 55000720 Tension Arm Assy, Right
1-15 55300831 Bushing, Arm Assy
1-16 55203110 Spring, Right Tension
1-17 50183921 Drum, Tension Arm
1-18 50182731 Limit Stop, Tension Arm
1-19 50529050 Spark Killer, 0.1 mfd + 120 ohm 400 VAC
1-20 51300010 Switch, Micro
1-21 * 50183932 Sheet, Insulator Paper
1-22 50142180 Cap, Pinch Roller
1-23 50141751 Pinch Roller
1-24 55400810 Cap, Dust; 66
1-25 55000712 Guide Assy, Sensing
1-26 50549920 Capacitor Metalized Mylar 0.1 mfd 400 VAC
1-27 55040831 Tension Arm Assy, Left JAPAN
550007 20 Tension Arm Assy, Left Ail except JAPAN
1-28 50276990 Collar, Rubber
1-29 50182750 Travel Limiter, Tension Arm
1-30 * 50221110 Spring, B
1-31 * 55330190 Leg, Case; Left
1-32 * 55330180 Leg, Case; Right
1-33 * 55501331 Plate, Housing Base
1-34 * 55501351 Plate, Head Base
1-35 55201820 Spring, D
1-36 50220500 Spring, B
1-37 50134371 Plate, E.R.P Head
1-38 55501511 Spacer, Head; A
1-39 50136540 Spacer, Erase Head
1-40 50663090 Erase Head
1-41 50664540 Record Head
1-42 50664550 Playback Head
1-43 50133891 Head Shield, A
1-44 * 51683630 PC Board Assy, Head
50554520 Capacitor, Elec.; 47 mfd 35V Part of above ass’y
1-45 50611210 Relay, Head Selector
1-46 50182672 Guide, Tape
1-47 * 55501340 Bracket, Protector
1-48 55810430 Screw, Sideboard All except JAPAN
