Teac A-4300SX - Tape Transport Parts Location; Rear View

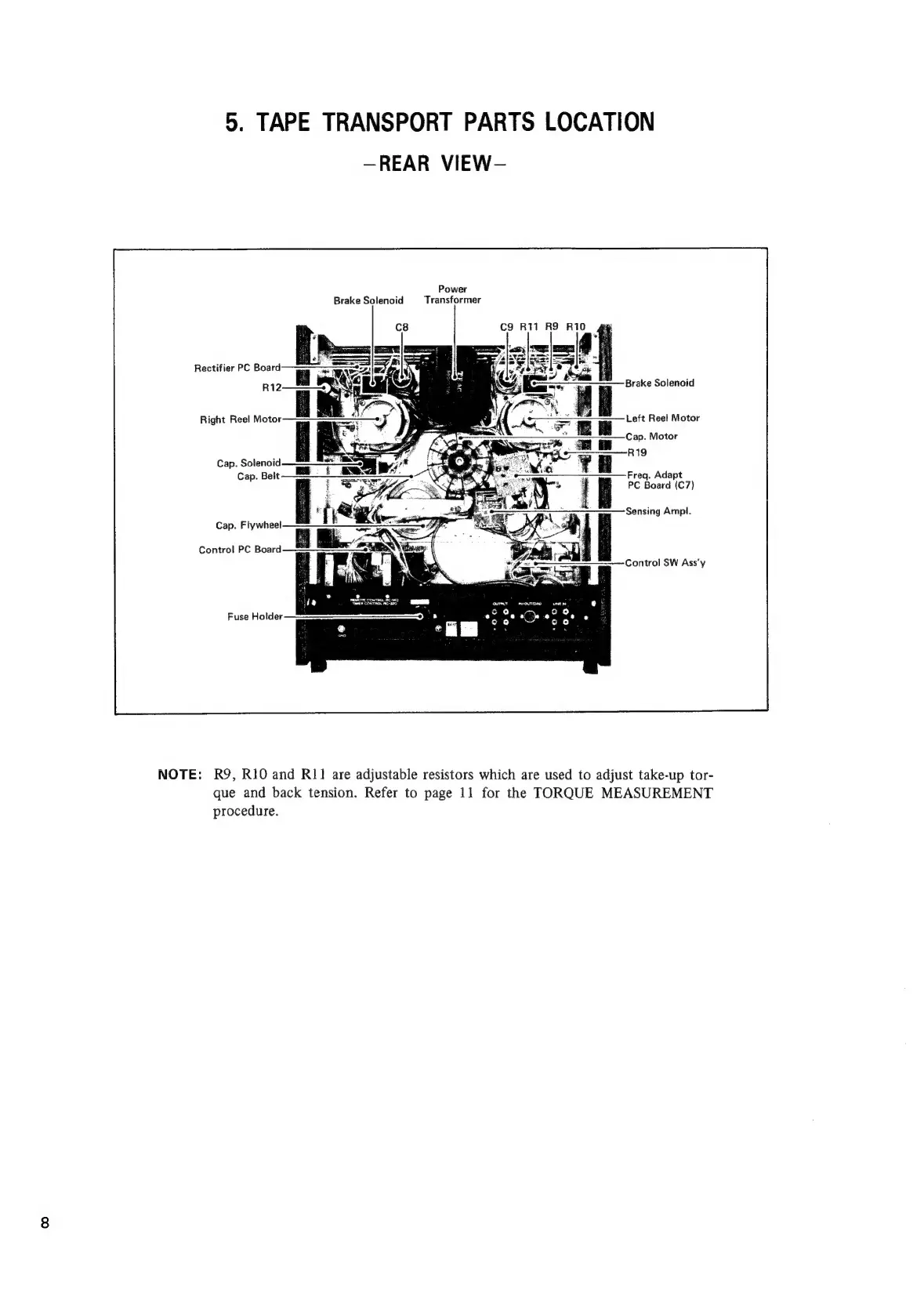

5. TAPE TRANSPORT PARTS LOCATION
—REAR VIEW-—
Power
Brake Solenoid Transformer
c9 R11 RY R10
Rectifier PC Board
R12 : ( 1, : 2 ie £ = Brake Solenoid
Right Reel Motor Left Reel Motor
Cap. Motor
R19
Cap. Solenoid
Cap. Beit Freq. Adapt
PC Board (C7)
Sensing Ampl.
Cap. Flywheel
Control PC Board
Control SW Ass’y
Fuse Holder
NOTE: R9, R10 and R11 are adjustable resistors which are used to adjust take-up tor-
que and back tension. Refer to page 11 for the TORQUE MEASUREMENT
procedure.
