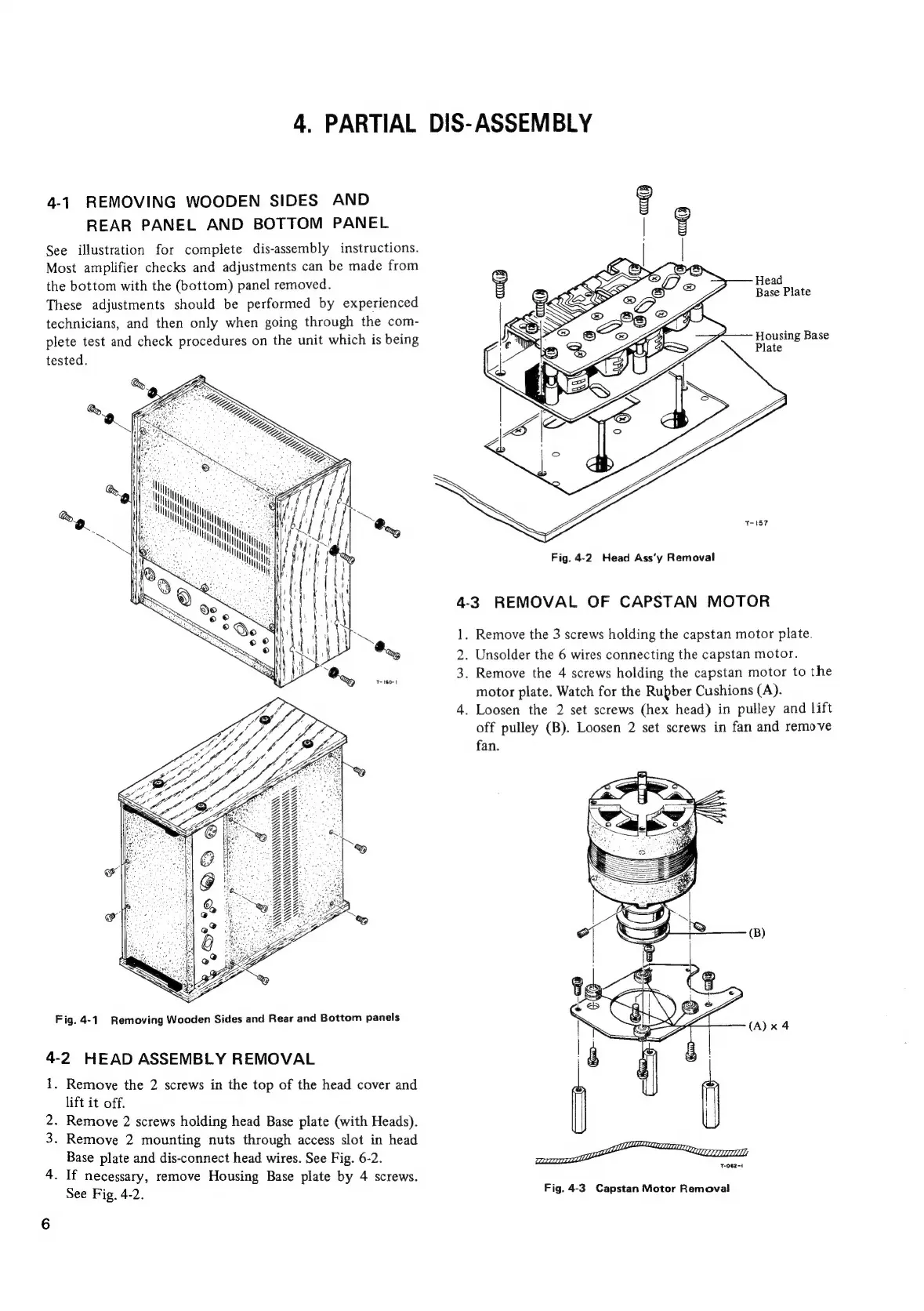

4,
PARTIAL
DIS-
ASSEMBLY
4-1
REMOVING
WOODEN
SIDES
AND
REAR
PANEL
AND
BOTTOM
PANEL
See
illustration
for
complete
dis-assembly
instructions.
Most
amplifier
checks
and
adjustments
can
be
made
from
the
bottom
with
the
(bottom)
panel
removed.
These
adjustments
should
be
performed
by
experienced
technicians,
and
then
only
when
going
through
the
com-
plete
test
and
check
procedures
on
the
unit
which
is
being
tested.
Head
Base
Plate
Housing
Base
Plate
Magli:
e
Sues
ae
LUT
lee
um
lly
Ih
Wyyytll
lin,
Fig.
4-2
Head
Ass‘y
Removal
4-3
REMOVAL
OF
CAPSTAN
MOTOR
1.
Remove
the
3
screws
holding
the
capstan
motor
plate.
2.
Unsolder
the
6
wires
connecting
the
capstan
motor.
3.
Remove
the
4
screws
holding
the
capstan
motor
to
the
motor
plate.
Watch
for
the
Rupber
Cushions
(A).
4.
Loosen
the
2
set
screws
(hex
head)
in
pulley
and
lift
off
pulley
(B).
Loosen
2
set
screws
in
fan
and
remove
fan.
SOOO
MMMM}
Fig.
4-1
Removing
Wooden
Sides
and
Rear
and
Bottom
panels
4-2
HEAD
ASSEMBLY
REMOVAL
1.
Remove
the
2
screws
in
the
top
of
the
head
cover
and
lift
it
off.
2.
Remove
2
screws
holding
head
Base
plate
(with
Heads).
3.
Remove
2
mounting
nuts
through
access
slot
in
head
i :
[PPTL
Base
plate
and
dis-connect
head
wires.
See
Fig.
6-2.
4.
If
necessary,
remove
Housing
Base
plate
by
4
screws.
oe
See
Fig.
4-2.
Fig.
4-3
Capstan
Motor
Removal
