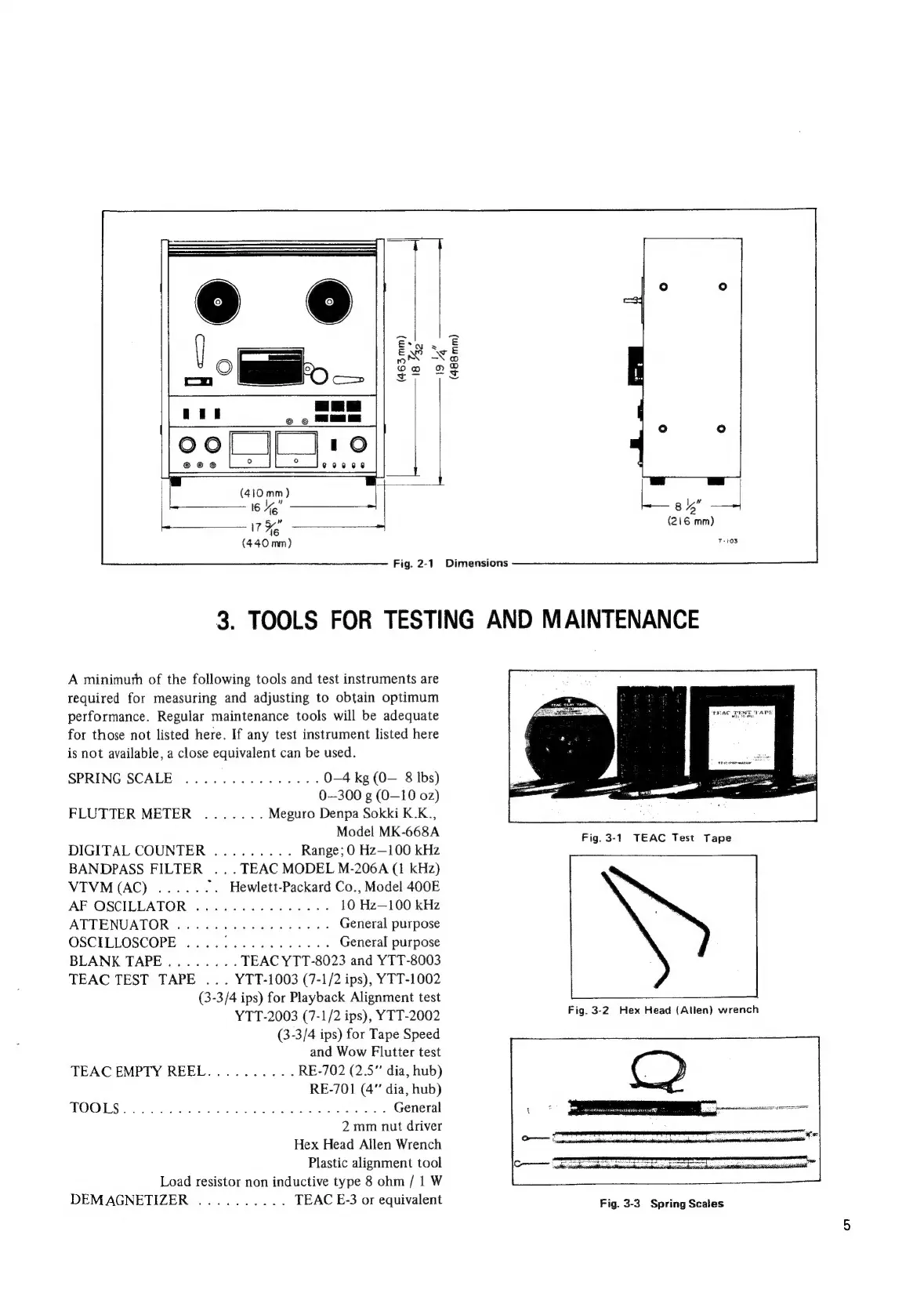

3. TOOLS FOR TESTING AND MAINTENANCE
A minimuth of the following tools and test instruments are
required for measuring and adjusting to obtain optimum _ ee
performance.
Regular
maintenance
tools
will
be
adequate
ghee
URAC
LESE,YAPE
for those not listed here. If any test instrument listed here
is not available, a close equivalent can be used.
SPRING SCALE .........0.0-0. 0-4 kg (O— 8 Ibs)
0-300 g (0-10 oz)
FLUTTER METER ....... Meguro Denpa Sokki K.K..,
Model MK-668A Fig. 3-1 TEAC Test Tape
DIGITAL COUNTER ......... Range; 0 Hz—100 kHz
BANDPASS FILTER ...TEAC MODEL M-206A (1 kHz)
VTVM (AC) ...... ~. Hewlett-Packard Co., Model 400E
AF OSCILLATOR ........----05- 10 Hz—100 kHz
ATTENUATOR ........-..----55 General purpose
OSCILLOSCOPE .............--- General purpose
BLANK TAPE........ TEAC YTT-8023 and YTT-8003
TEAC TEST TAPE ... YTT-1003 (7-1/2 ips), YTT-1002
(3-3/4 ips) for Playback Alignment test
YTT-2003 (7-1/2 ips), YTT-2002 Fig. 3-2 Hex Head (Allen) wrench
(3-3/4 ips) for Tape Speed
and Wow Flutter test
TEAC EMPTY REEL.......... RE-702 (2.5” dia, hub)
RE-701 (4” dia, hub)
TOOK S 5 eee eo et i des SE ees General
2 mm nut driver
Hex Head Allen Wrench
Plastic alignment tool
Load resistor non inductive type 8 ohm / 1 W
DEMAGNETIZER .......... TEAC E-3 or equivalent
Fig. 3-3 Spring Scales
