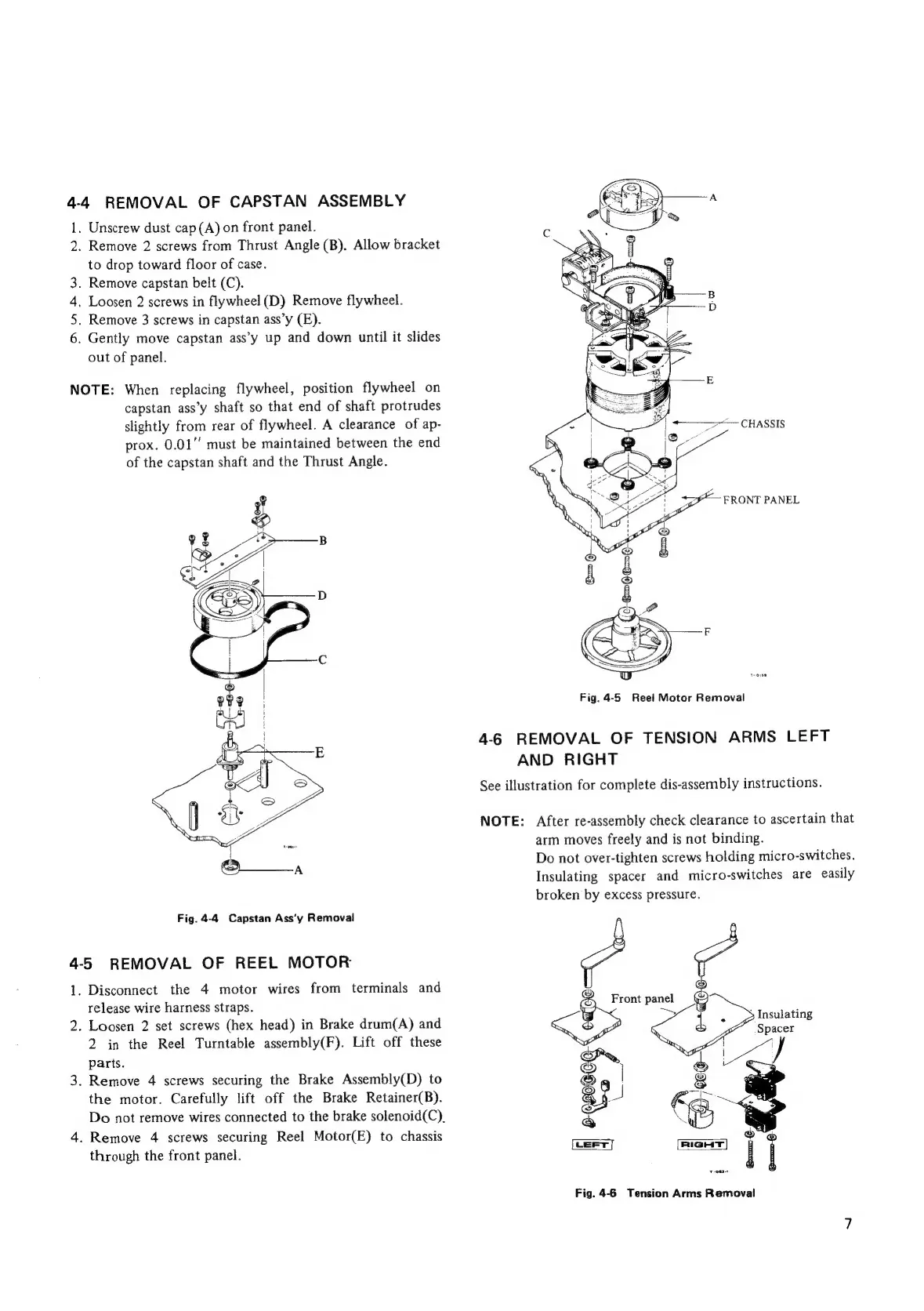

4-4 REMOVAL OF CAPSTAN ASSEMBLY
Dank WwW
. Unscrew dust cap(A) on front panel.
. Remove 2 screws from Thrust Angle (B). Allow bracket
to drop toward floor of case.
. Remove capstan belt (C).
. Loosen 2 screws in flywheel (D) Remove flywheel.
. Remove 3 screws in capstan ass’y (E).
. Gently move capstan ass’y up and down until it slides
out of panel.
NOTE: When replacing flywheel, position flywheel on
capstan ass’y shaft so that end of shaft protrudes
slightly
from
rear
of
flywheel.
A
clearance
of
ap-
prox. 0.01’’ must be maintained between the end
of the capstan shaft and the Thrust Angle.
Fig. 4-4 Capstan Ass‘y Removal
45 REMOVAL OF REEL MOTOR
1.
2.
Disconnect the 4 motor wires from terminals and
release wire harness straps.
Loosen 2 set screws (hex head) in Brake drum(A) and
2 in the Reel Turntable assembly(F). Lift off these
parts.
. Remove 4 screws securing the Brake Assembly(D) to
the motor. Carefully lift off the Brake Retainer(B).
Do not remove wires connected to the brake solenoid(C),
. Remove 4 screws securing Reel Motor(E) to chassis
through the front panel.
<> CHASSIS
FRONT PANEL
Fig. 4-5 Reel Motor Removal
4-6
REMOVAL
OF
TENSION
ARMS
LEFT
AND
RIGHT
See
illustration
for
complete
dis-assembly
instructions.
NOTE:
After
re-assembly
check
clearance
to
ascertain
that
arm
moves
freely
and
is not
binding.
Do
not
over-tighten
screws
holding
micro-switches.
Insulating
spacer
and
micro-switches
are
easily
broken
by
excess
pressure.
as panel
Fig. 4-6 Tension Arms Removal
