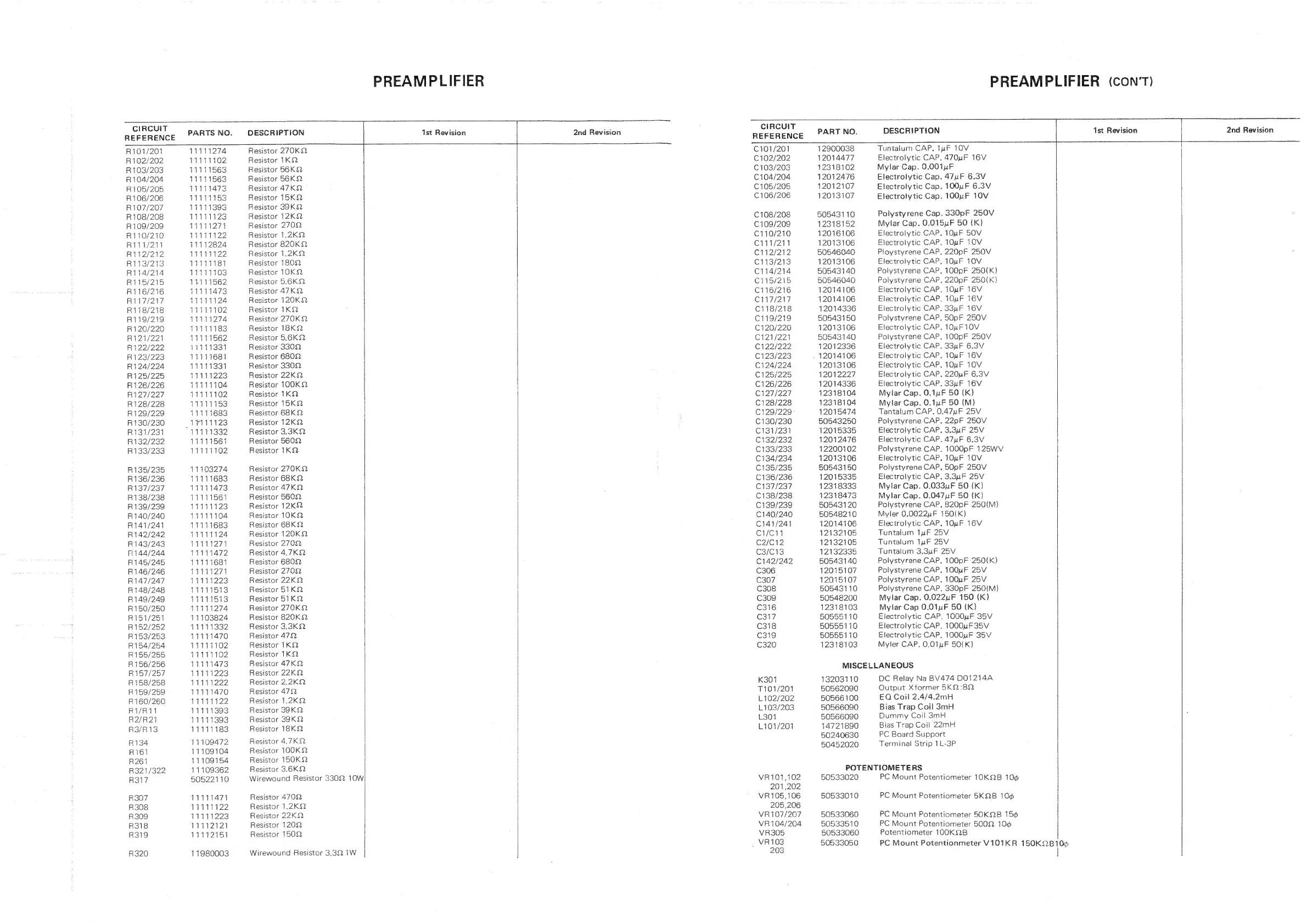

Teac A-7010 - Page 27

PREAMPLIFIER
CIRCUIT
REFERENCE
PARTS
NO.
DESCRIPTION
1st
Revision
2nd
Revision
R101/201
11111274
Resistor
270KQ
R102/202
1111102
Resistor
1KQ
R103/203
11111563
Resistor
56K
R104/204
11111563
Resistor
56KQ
R
105/205
11111473
Resistor
47K
R
106/206
T1T163
Resistor
15KQ
R107/207
1111393
Resistor
39KQ
|
R
108/208
111
23
Resistor
12KQ
R
109/209
11111271
Resistor
2702
R110/210
11122
Resistor
1.2KQ
R111/211
11112824
Resistor
820KQ
R112/212
11122
Resistor
1.2KQ
R113/213
1111181
Resistor
180Q
R114/214
11111103
Resistor
10KQ
R115/215
562
Resistor
5.6K
R116/216
11111473
Resistor
47KQ
PLigeealy
124
Resistor
120KQ
R118/218
11102
Resistor
1KQ
R119/219
1111274
Resistor
270KQ
R120/220
1111183
Resistor
18KQ
R121/221
1111562
Resistor
5.6K
R122/222
71111331
Resistor
330Q
R123/223
11111681
Resistor
680Q
R124/224
11111331
Resistor
3302
R125/225
11111223
Resistor
22KQ
R126/226
11111104
Resistor
100KQ
R127/227
11111102
Resistor
1KQ
R128/228
11111153
Resistor
15KQ
R129/229
11111683
Resistor
68KQ
R130/230
197111123
Resistor
12KQ
R131/231
11111332
Resistor
3.3KQ
R132/232
11111561
Resistor
5602
R133/233
11111102
Resistor
1KQ
R135/235
11103274
Resistor
270KQ
R136/236
111683
Resistor
68KQ
R137/237
111473
Resistor
47KQ
R
138/238
11111561
Resistor
560Q
R139/239
11111123
Resistor
12KQ
R140/240
11111104
Resistor
10KQ
R141/241
111683
Resistor
68KQ
R142/242
11111124
Resistor
120KQ
R143/243
1111271
Resistor
2702
1144/244
1111472
Resistor
4.7KQ
R145/245
111681
Resistor
6802
R146/246
111271
Resistor
2702
R147/247
1111223
Resistor
22KQ
R148/248
11111513
Resistor
51KQ
R149/249
1111513
Resistor
51KQ2
R150/250
1111274
Resistor
270KQ
R151/251
03824
Resistor
820KQ
R152/252
332
Resistor
3.3KQ
R153/253
11470
Resistor
47Q
R154/254
111102
Resistor
1KQ
R155/255
11111102
Resistor
1KQ
R156/256
11111473
Resistor
47KQ
157/257
11111223
Resistor
22K
R158/258
11111222
Resistor
2,2KQ
R159/259
11111470
Resistor
479
R160/260
1122
Resistor
1.2KQ
R1/R11
11111393
Resistor
39KQ
R2/R21
11111393
Resistor
39K2
R3/R13
11111183
Resistor
18KQ
R134
11109472
Resistor
4.7K
&
R161
11109104
Resistor
100KQ
R261
11109154
Resistor
150KQ
R321/322
11109362
Resistor
3.6KQ2
R317
50522110
Wirewound
Resistor
3302
10W
R307
11111471
Resistor
4702
R308
11111122
Resistor
1.2KQ
R309
11111223
Resistor
22KQ
R318
11112121
Resistor
1202
R319
11112151
Resistor
150Q
R320
11980003
Wirewound
Resistor
3.32
1W
PREAMPLIFIER (coN’T)
CIRCUIT
———~
1st Revision
2nd Revision
REFERENCE PART NCO. DESCRIPTION
C101/201 12900038 Tuntalum CAP, 1uF 10V
C102/202 12014477 Electrolytic CAP, 470uF 16V
C103/203 12318102 Mylar Cap. 0.001uF
C104/204 12012476 Electrolytic Cap. 47uF 6.3V
C105/205 12012107 Electrolytic Cap. 100uF 6.3V
C106/206 12013107 Electrolytic Cap. 100uF 10V
C108/208 50543110 Polystyrene Cap. 330pF 250V
C109/209 12318152 Mylar Cap. 0.015uF 50 (K)
C110/210 12016106 Electrolytic CAP. 10uF 50V
C111/211 12013106 Electrolytic CAP. 10uF 10V
C112/212 50546040 Ploystyrene CAP, 220pF 250V
C113/213 12013106 Electrolytic CAP, 10uF 10V
C114/214 50543140 Polystyrene CAP, 100pF 250(K)
C115/215 50546040 Polystyrene CAP, 220pF 250(K)
C116/216 12014106 Electrolytic CAP. 10uF 16V
C117/217 12014106 Electrolytic CAP. 10uF 16V
C118/218 12014336 Electrolytic CAP, 33uF 16V
C119/219 50543150 Polystyrene CAP, 50pF 250V
C120/220 12013106 Electrolytic CAP. 10uF10V
C121/221 50543140 Polystyrene CAP, 100pF 250V
C122/222 12012336 Electrolytic CAP, 33uF 6.3V
C123/223 . 12014106 Electrolytic CAP. 10uF 16V
C124/224 12013106 Electrolytic CAP. 10uF 10V
C125/225 12012227 Electrolytic CAP. 220uF 6.3V
C126/226 12014336 Electrolytic CAP. 33uF 16V
C127/227 12318104 Mylar Cap. 0.1uF 50 (K)
C128/228 12318104 Mylar Cap. 0.1uF 50 (M)
C129/229 12015474 Tantalum CAP. 0.47uF 25V
C130/230 50543250 Polystyrene CAP, 22pF 250V
C131/231 12015335 Electrolytic CAP. 3.3uF 25V
C132/232 12012476 Electrolytic CAP. 47uF 6.3V
C133/233 12200102 Polystyrene CAP. 1000pF 125WV
C134/234 12013106 Electrolytic CAP. 10uF 10V
€135/235 50543150 Polystyrene CAP, 50pF 250V
C136/236 12015335 Electrolytic CAP, 3.3uF 25V
C137/237 12318333 Mylar Cap. 0.033uF 50 (K)
C138/238 12318473 Mylar Cap. 0.047uF 50 (K)
C139/239 50543120 Polystyrene CAP, 820pF 250(M)
C140/240 50548210 Myler 0,0022uF 150(K)
C141/241 12014106 Electrolytic CAP. 10uF 16V
C1/C11 12132105 Tuntalum 1uF 25V
C2/C12 12132105 Tuntalum 1uF 25V
C3/C13 12132335 Tuntalum 3.3uF 25V
C142/242 50543140 Polystyrene CAP, 100pF 250(K)
C306 12015107 Polystyrene CAP, 100uF 25V
C307 12015107 Polystyrene CAP, 100uF 25V
C308 50543110 Polystyrene CAP. 330pF 250(M)
C309 50548200 Mylar Cap. 0.022uF 150 (K)
C316 12318103 Mylar Cap 0.01uF 50 (K)
C317 50555110 Electrolytic CAP. 1000uF 35V
C318 50555110 Electrolytic CAP, 1000uF35V
C31 50555110 Electrolytic CAP. 1000uF 35V
C320 12318103 Myler CAP. 0.01uF 50(K)
MISCELLANEOUS
301 13203110 DC Relay Na BV474 DO01214A
7T101/201 50562090 Output Xformer 5K2:8Q
L102/202 50566100 EQ Coil 2.4/4.2mH
L103/203 50566090 Bias Trap Coil 3mH
L301 50566080 Dummy Coil 3mH
L101/201 14721890 Bias Trap Coil 22mH
50240630 PC Board Support
50452020 Terminal Strip 1L-3P
POTENTIOMETERS
VR101,102 50533020 PC Mount Potentiometer 10KQB 106
201,202
VR105,106 50533010 PC Mount Potentiometer 5K2B 10¢
205,206
VR 107/207 50533060 PC Mount Potentiometer 50K2B 154
VR104/204 50533510 PC Mount Potentiometer 5002 10¢
VR305 50533060 Potentiometer 100KQB
;
as
50533050
PC
Mount
Potentionmeter
V101KR
150K2B106
