Teac A-7010 - Back Panel; Back Panel Parts List

Fay Cees
5—10
PART NO.
54744900
5043026
16780743
16357110
16704061
13291060
13291060
50431051
50434650
13150059
13224003
13150046
50434090
50434630
50111811
5061042
50133880
54810600
16920320
50480490
BACK PANEL
BACK PANEL
DESCRIPTION
Dummy Plug
Dummy Plug Pause
Rearname Plate
Ground Terminal
Chassis
Fuse 2A
Fuse holder voltage conversion plug
AC power
Socket (to amp)
Socket {remote}
Slide switch (6 pol)
Socket (pause) (6 pin)
Socket (rec/erase head)
Dual pin jack connector
Shield plate
Head Relay
Head Relay Mounting Plate
8 Pin Inter Connecting Cable
{nter connecting cable w/pin jacks
Phase sensing PC board assy
ee

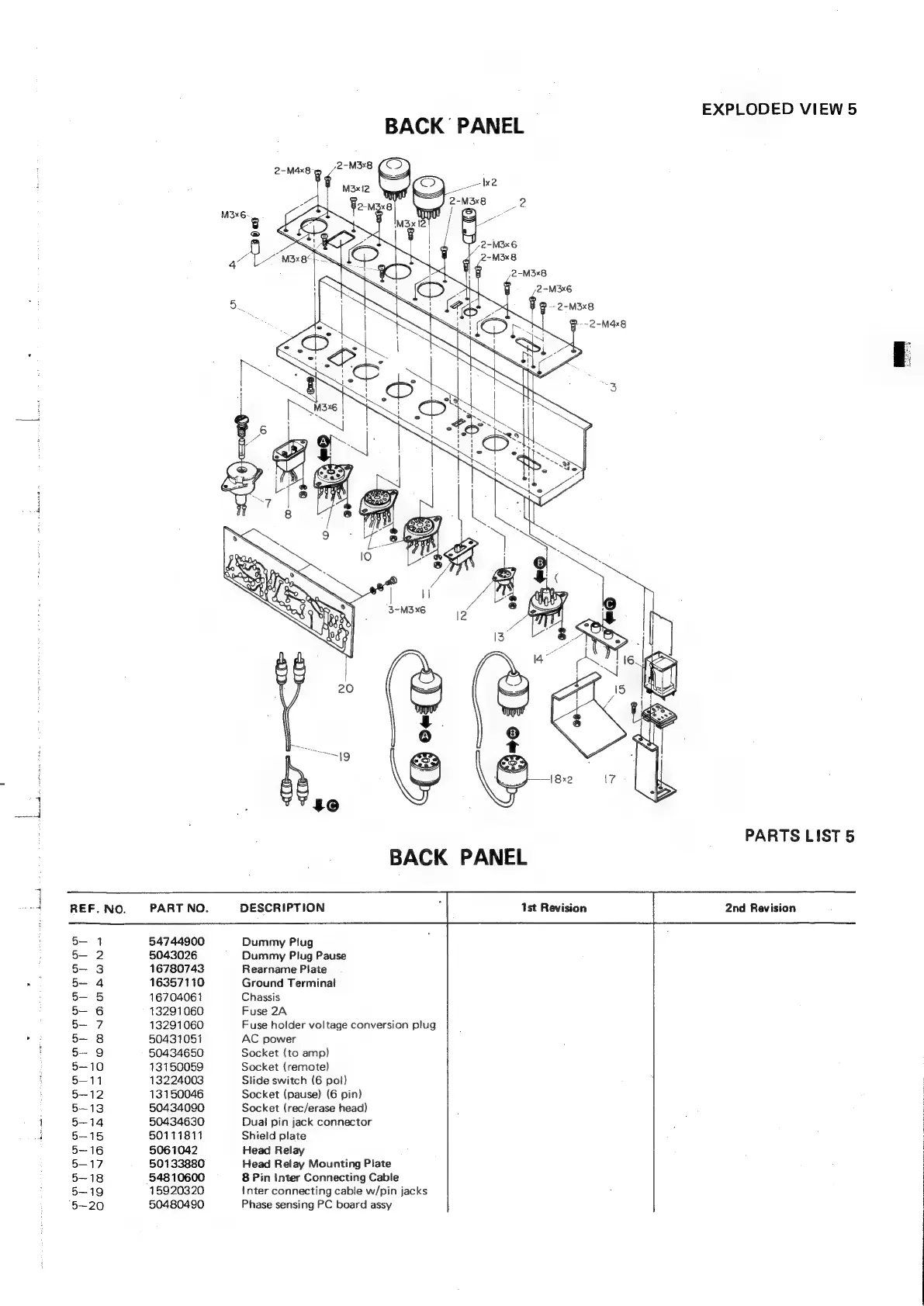

EXPLODED VIEW 5
PARTS LIST 5
2nd Revision
