Teac A-BX10 - Specifications

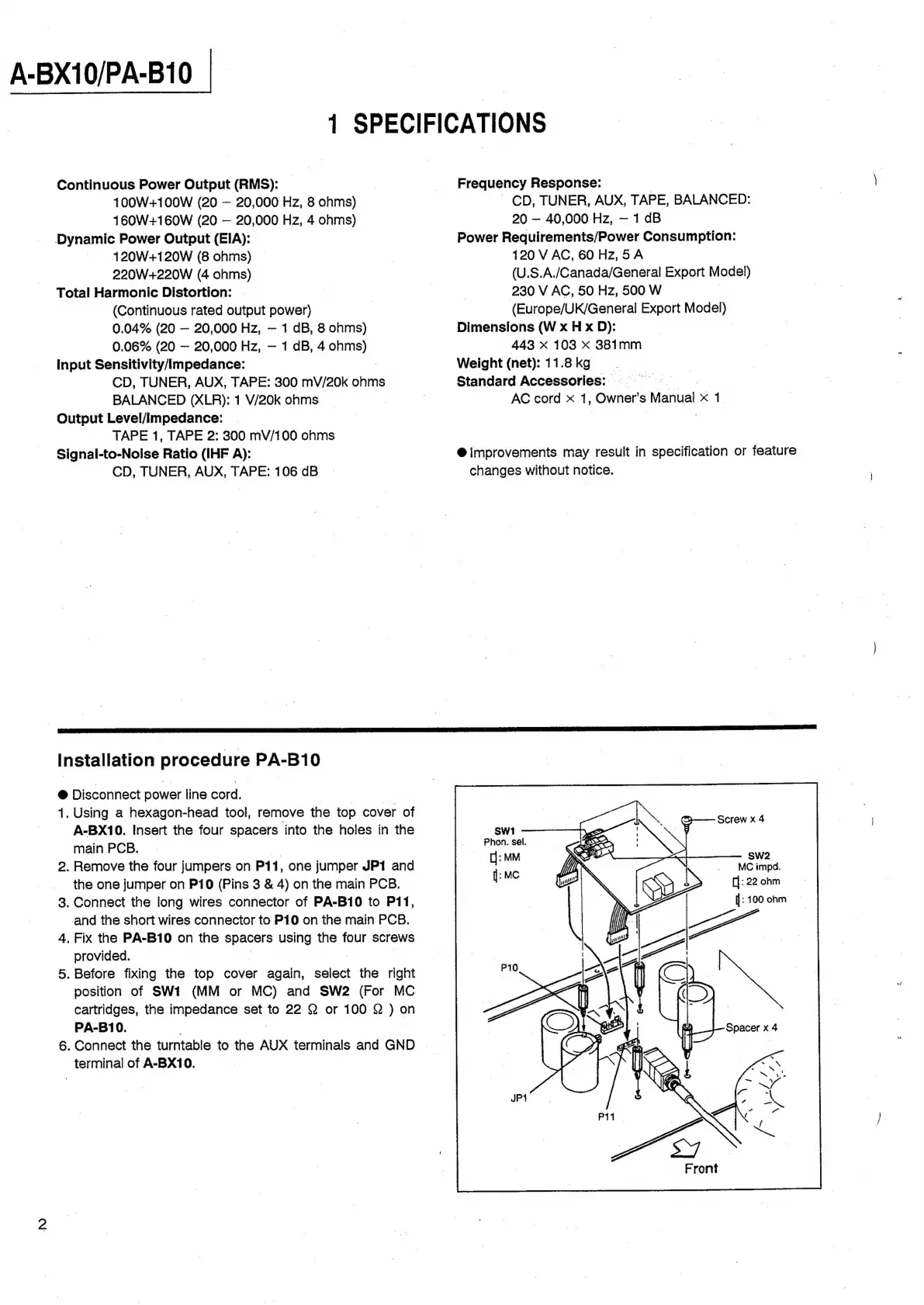

A-BX10/PA-B10
1 SPECIFICATIONS
Continuous Power Output (RMS):
100W+100W (20 — 20,000 Hz, 8 ohms)
160W+160W (20 — 20,000 Hz, 4 ohms)
Dynamic Power Output (EIA):
120W+120W (8 ohms)
220W+220W (4 ohms)
Total Harmonic Distortion:
(Continuous rated output power)
0.04% (20 — 20,000 Hz, — 1 dB, 8 ohms)
0.06% (20 — 20,000 Hz, — 1 dB, 4 ene)
Input Sensitivity/Impedance:
CD, TUNER, AUX, TAPE: 300 mV/20k ohms
BALANCED (XLR): 1 V/20k ohms
Output Level/impedance:
TAPE 1, TAPE 2: 300 mV/100 ohms
Signal-to-Noise Ratio (IHF A):
CD, TUNER, AUX, TAPE: 106 dB
Installation procedure PA-B10
® Disconnect power line cord,
uF
Using a hexagon-head tool, remove the top cover of
A-BX10. Insert the four spacers into the holes in the
main PCB. -
Remove the four jumpers on P11, one jumper JP1 and
the one jumper on P10 (Pins 3 & 4) on the main PCB.
. Connect the long wires connector of PA-B10 to P11,
and the short wires connector to P10 on the main PCB.
. Fix the PA-B10 on the spacers using the four screws
provided.
. Before fixing the top cover again, select the right
position of SW1 (MM or MC) and SW2 (For MC
cartridges, the impedance set to 22 Q or 100 2 Ps on
PA-B10.
. Connect the turntable to the AUX terminals and GND
terminal of A-BX10.
Frequency Response:
~ CD, TUNER, AUX, TAPE, BALANCED:
20 — 40,000 Hz, ~— 1 dB
Power Requirements/Power Consumption:
120 V AC, 60 Hz, 5A
(U.S.A./Canada/General Export Model)
230 V AC, 50 Hz, 500 W
(Europe/UK/General Export Model)
Dimensions (W x H x D):
443 x 103 x 381mm
Weight (net): 11.8kg
Standard Accessories:
AC cord x 1, ‘Owner's Manual x1.
@ improvements may result in specification or feature
changes without notice.
Screw x 4
SW2
qt: 22 ohm
[|: 100 ohm
