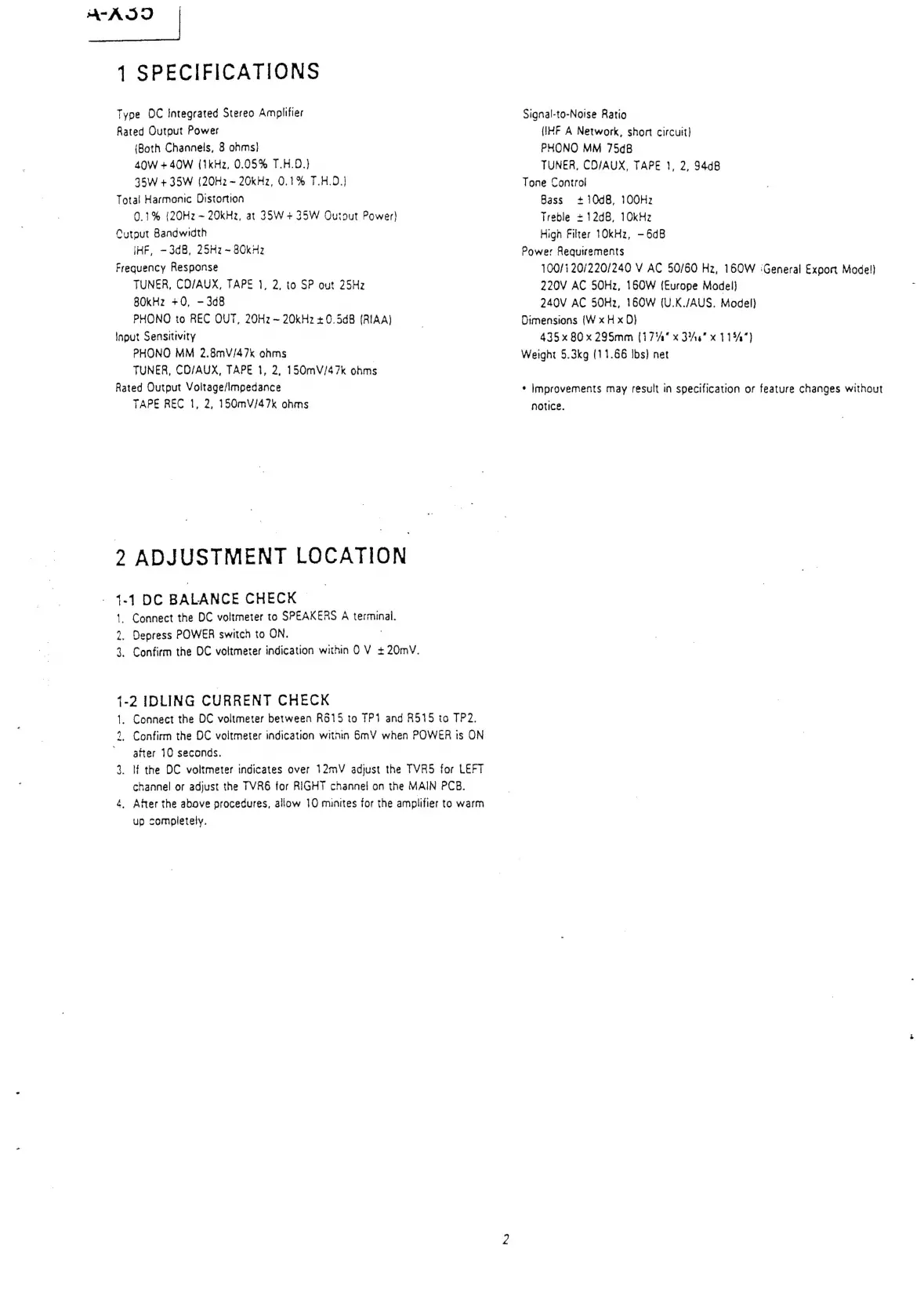

1 SPECIFICATIONS
Type OC Integrated Stereo Amplifier Signal-to-Noise Ratio
Rated Output Power (IHF A Network, short circuit)
(Both Channels, 8 ohms} PHONO MM 75dB8
40W + 40W (1kHz, 0.05% T.H.D.) TUNER, CDO/AUX, TAPE 1, 2, 94dB
35W + 35W (20H2 ~ 20kHz, 0.1% T.H.D.} Tone Control
Total Harmonic Distortion Bass +10d8, 100H2z
0.1% {20Hz ~ 20kHz, at 35W+35W Outout Power} Treble +12d8, 10kHz
Curput Bandwidth High Filter 10kHz, -6d8
IHF, -3dB, 25Hz ~ 80kHz Power Requirements
Frequency Response 100/14 20/220/240 V AC 50/60 Hz, 160W ‘General Export Model}
TUNER, CD/AUX, TAPE 1, 2, to SP out 25Hz 220V AC 50Hz, 160W (Europe Model)
80kHz +0, -3d8 240V AC 5OH2z, 160W {(U.K./AUS. Model)
PHONO to REC OUT, 20Hz ~ 20kH2 + 0.5d8 (RIAA) | Dimensions {W x H x D)
Input Sensitivity 435 x 80x 295mm (17'%" x 3%5" x 115A)
PHONO MM 2.8mV/47k ohms | Weight 5.3kq (11.66 Ibs) net
TUNER, CD/AUX, TAPE 1, 2, 150mV/47k ohms
Rated Output Voltage/Impedance * Improvements may result in specification or feature changes without
TAPE REC 1, 2, 150mV/47k ohms notice.
2 ADJUSTMENT LOCATION
14-1 DC BALANCE CHECK ©
1. Connect the DC voltmeter to SPEAKERS A terminal.
2,
Depress
POWER
switch
to
ON.
3. Confirm the OC voltmeter indication within 0 V +20mV.
-2 IDLING CURRENT CHECK
Connect the DC voltmeter between R615 to TP1 and R515 to TP2.
Confirm the DC voltmeter indication within BMV when POWER ts ON
after 10 seconds.
3. If the DC voltmeter indicates over 12mV adjust the TVR5 for LEFT
channel or adjust the TVR6 for RIGHT channel on the MAIN PCB.
4. After the above procedures, allow 10 minites for the amplifier to warm
up completely.
