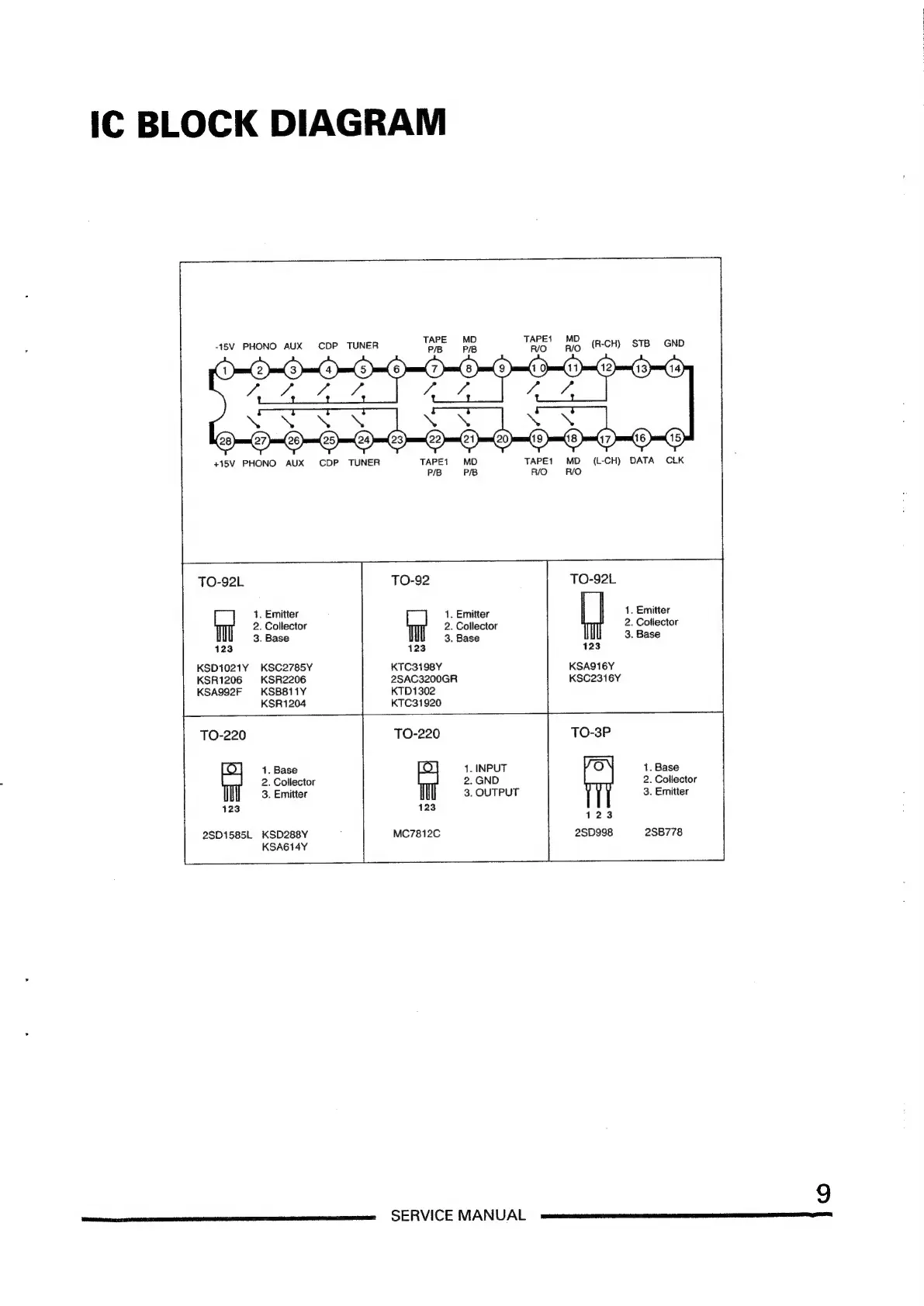

IC BLOCK DIAGRAM
-15V PHONO AUX
TAPE MD
P/B P/B
MD
RO (R-CH) STB GND
+15V PHONO AUX
TAPE1 MD
PIB PB
MD (L-CH) DATA CLK
R/O
TO-92L
4. Emitter
2. Collector
3. Base
123
KSD1021Y KSC2785Y
KSR1206 KSR2206
KSA992F KSB811Y
KSR1204
1. Base
2. Collector
3. Emitter
123
2SD1585L KSD288Y
KSA614Y
TO-92
1. Emitter
2. Collector
3. Base
123
KTC3198Y
2SAC3200GR
KTD1302
KTC31920
1. INPUT
2. GND
3. OUTPUT
MC7812C
TO-92L
1, Emitter
2. Collector
3. Base
123
KSA916Y
KSC2316Y
VON
1. Base
2. Collector
yyy 3. Emitter
123
2SD998 2SB778
9
