Teac AG-H500 Service Manual

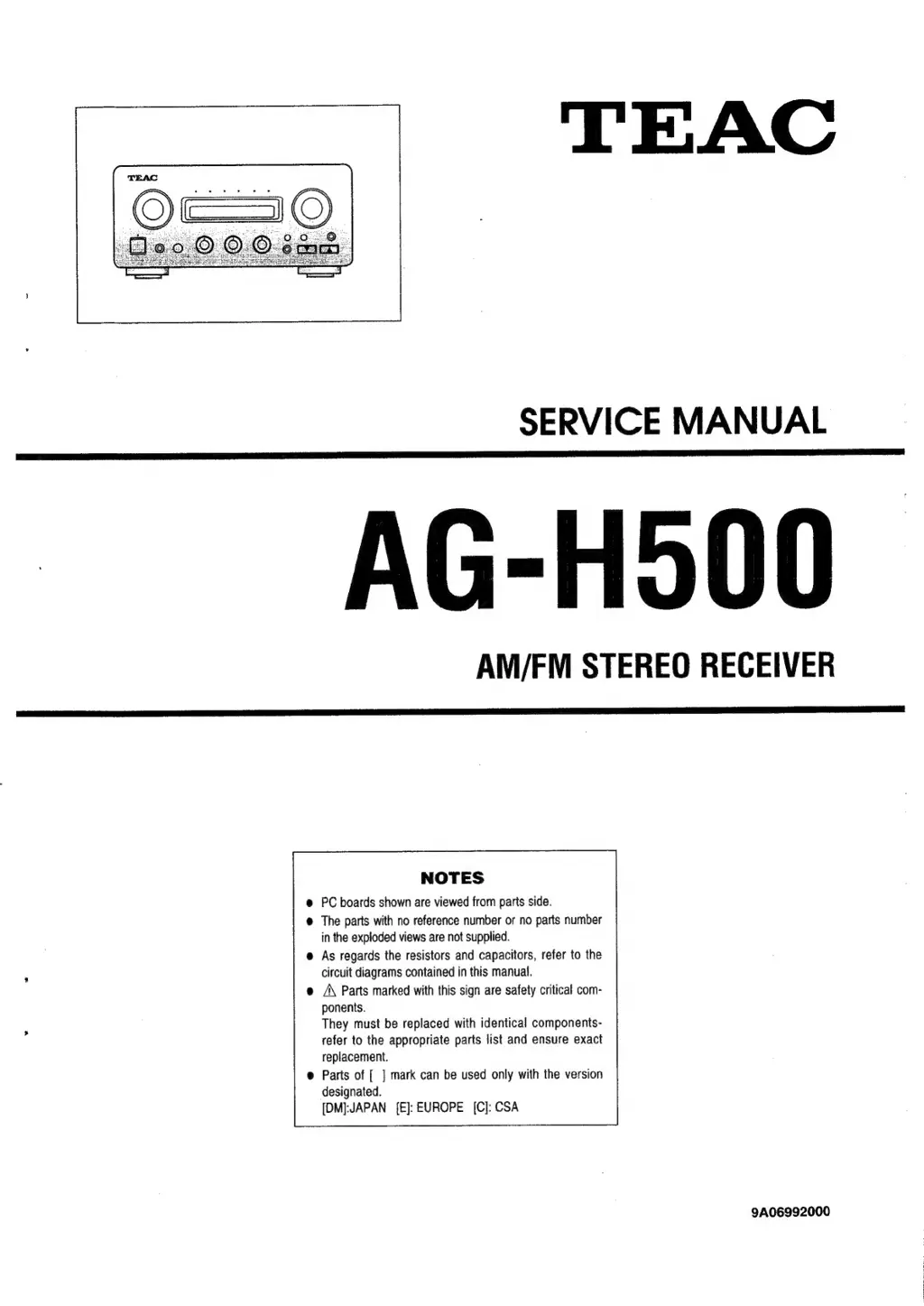

SERVICE MANUAL
AG-H500
AM/FM STEREO RECEIVER
NOTES
PC boards shown are viewed from parts side.
The parts with no reference number or no parts number
in the exploded views are not supplied.
As regards the resistors and capacitors, refer to the
circuit diagrams contained in this manual.
A\ Parts marked with this sign are safety critical com-
ponents.
They must be replaced with identical components-
refer to the appropriate parts list and ensure exact
replacement.
Parts of [ ] mark can be used only with the version
designated.
[DM]:JAPAN [E]: EUROPE [C]: CSA
9A06992000

Teac AG-H500 Specifications

General

Type	Stereo Receiver
Audio Channels	2
Total Harmonic Distortion	0.05%
FM Tuning Range	87.5 - 108 MHz
Input Sensitivity	150mV (line), 2.5mV (MM phono)
Signal-to-Noise Ratio	100 dB
Input Impedance	47 kOhms
Tuning Range	FM
Power Output	50W per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
