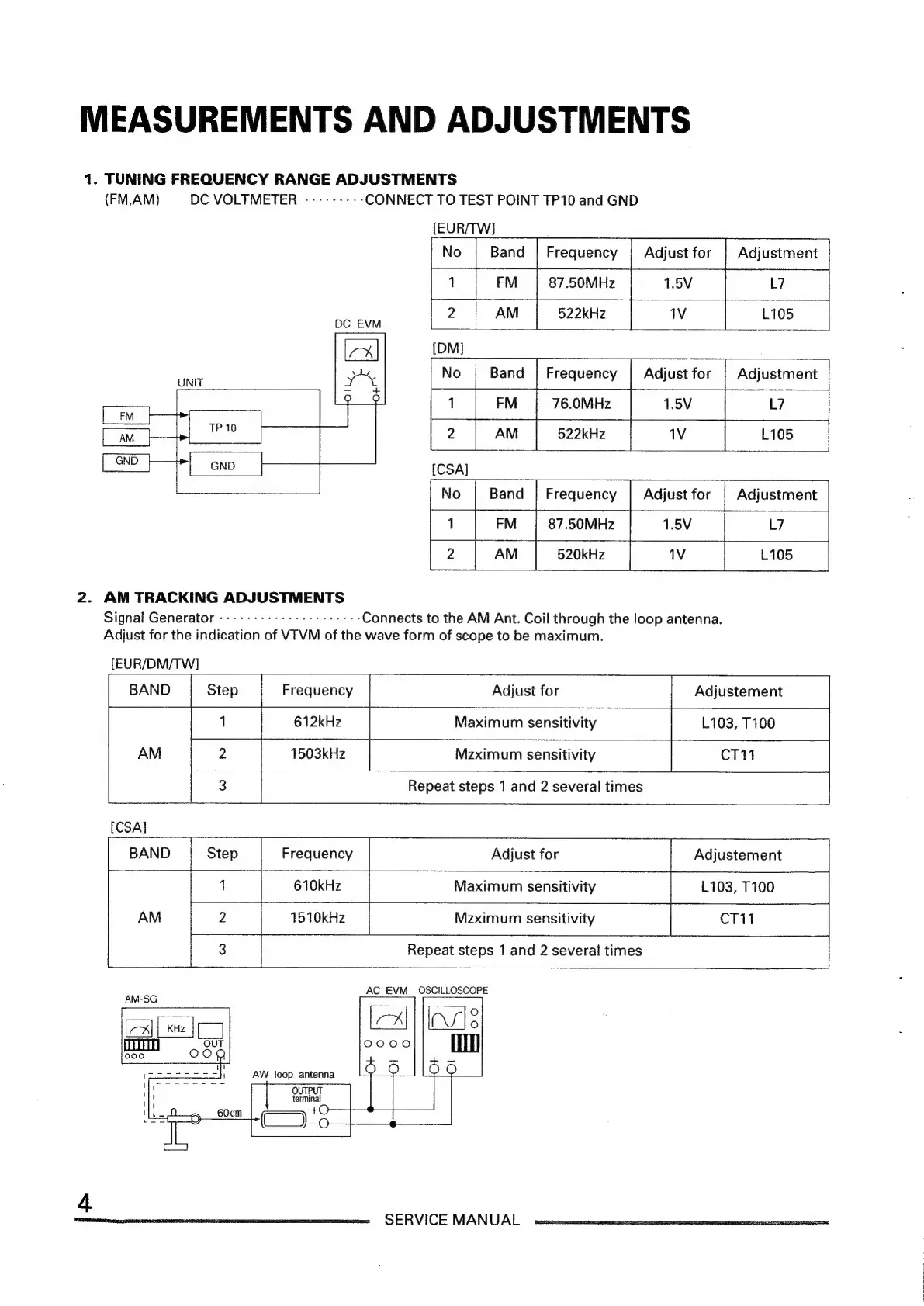

MEASUREMENTS AND ADJUSTMENTS
1. TUNING FREQUENCY RANGE ADJUSTMENTS
(FM,AM) DC VOLTMETER --------- CONNECT TO TEST POINT TP10 and GND
[EUR/TW]
Frequency
87.50MHz 1.5V
2 522kHz 1V
[DM]
No Band | Frequency | Adjust for | Adjustment
1 FM 76.0MHz 1.5V L7
2 AM 522kHz 1V L105
Frequency | Adjustfor | Adjustment
87.50MHz 1.5V L7
520kHz 1V L105
2. AM TRACKING ADJUSTMENTS
Signal Generator -------+-++---+-+-+-- Connects to the AM Ant. Coil through the loop antenna.
Adjust for the indication of VTVM of the wave form of scope to be maximum.
[EUR/DM/TW]
612kHz Maximum sensitivity L103, T100
1503kHz Mzximum sensitivity CT11
Repeat steps 1 and 2 several times
[CSA]
BAND Step Frequency | Adjust for q Adjustement
1 610kHz Maximum sensitivity L103, T100
| AM 2 1510kHz Mzximum sensitivity CT11
[ Repeat steps 1 and 2 several times
AC_EVM_ OSCILLOSCOPE
OUTPUT
terminal
C5*5
SERVICE MANUAL
