Teac AI-2000 - Front Panel

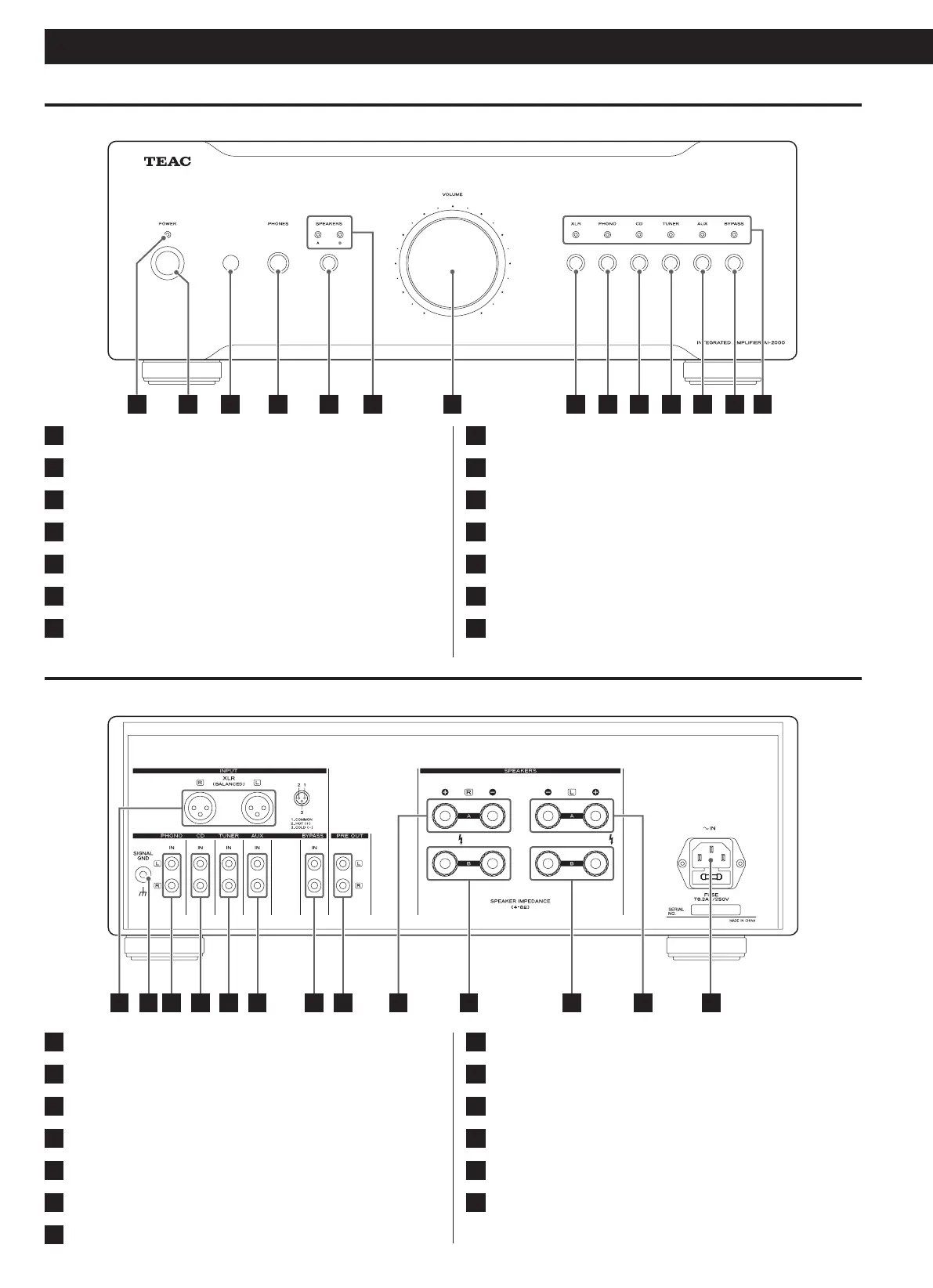

Identifying the Parts
A
POWER indicator
B
POWER button
C
Remote control receiver
D
PHONES (earphone jack)
E
A/B SPEAKER selector
F
A/B SPEAKER indicator
G
VOLUME knob
H
XLR signal selector
I
PHONO signal selector
J
CD signal selector
K
TUNER signal selector
L
AUX signal selector
M
BYPASS signal selector
N
Input status indicators
a
XLR signal input terminal
b
Grounding terminal
c
PHONO signal input terminal
d
CD signal input terminals
e
TUNER signal input terminals
f
AUX signal input terminals
g
BYPASS input terminals
h
PRE OUT output terminals
i
Right channel speaker output terminals (group A)
j
Right channel speaker output terminals (group B)
k
Left channel speaker output terminals (group B)
l
Left channel speaker output terminals (group A)
m
AC power inlet (with fuse)
6
Front panel
C D E G H I J K L MA
B
NF
Rear panel
b c d e f
g
h ma i
j
lk
