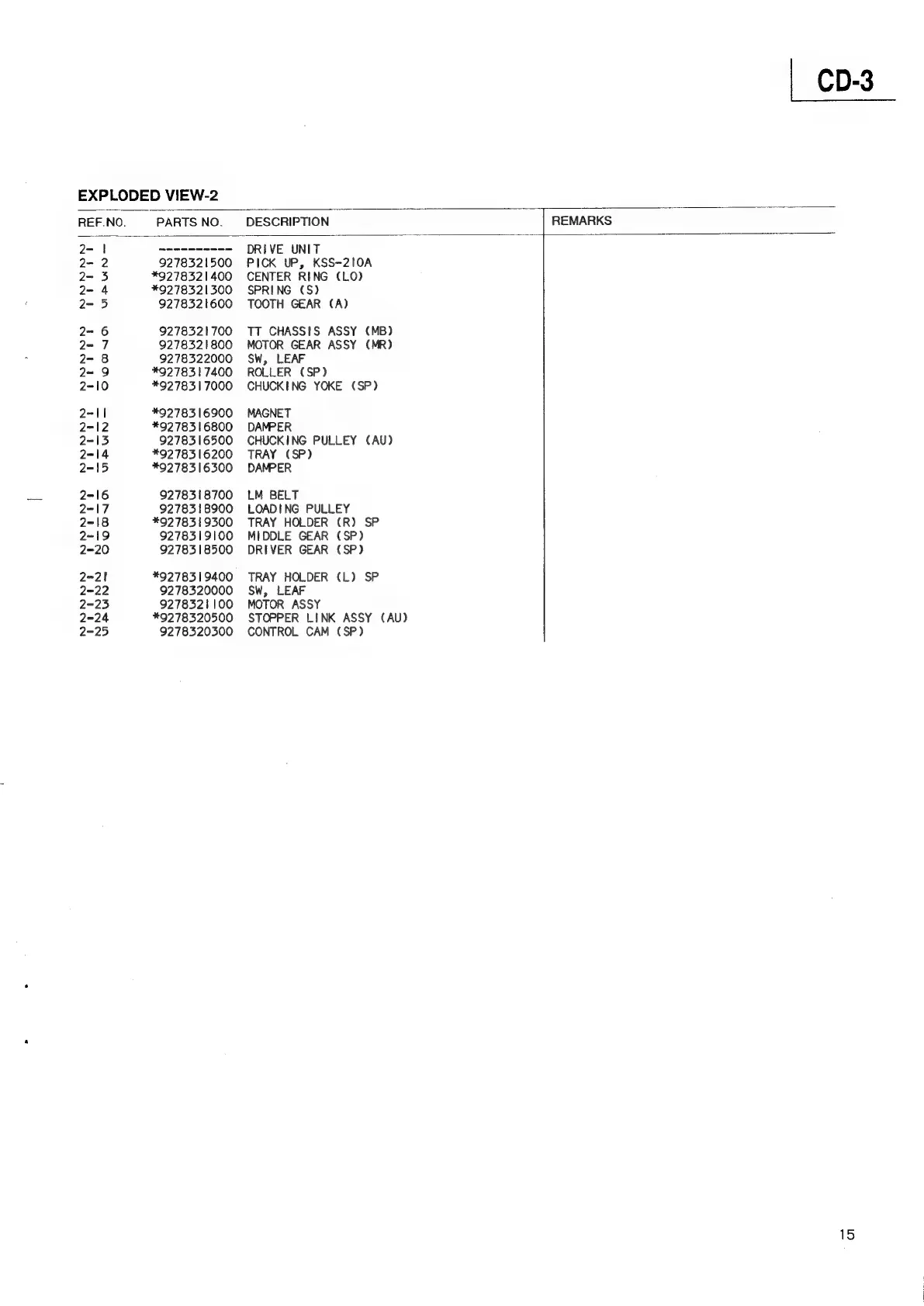

EXPLODED VIEW-2
CD-3
REF.NO. PARTS NO.
DESCRIPTION
REMARKS
2-
|
2- 2 9278321500
2- 3 *927832 1400
2- 4 *9278321300
2-5 9278321600
2- 6 9278321700
2- 7 9278321800
2- 8 9278322000
2- 9 *92783 17400
2-10 *92783 17000
2-11 *92783 16900
2-12 *92783 16800
2-13 9278316500
2-14 *92783 16200
2-15 *92783 16300
2-16 9278318700
2-17 92783 18900
2-18 *92783 19300
2-19 9278319100
2-20 9278318500
2-21 *92783 19400
2-22 9278320000
2-23 9278321100
2-24 *9278320500
2-25 9278320300
DRIVE UNIT
PICK UP, KSS-2I10A
CENTER RING (LO)
SPRING (S)
TOOTH GEAR (A)
TT CHASSIS ASSY (MB)
MOTOR GEAR ASSY (MR)
SW, LEAF
ROLLER (SP)
CHUCKING YOKE (SP)
MAGNET
DAMPER
CHUCKING PULLEY (AU)
TRAY (SP)
DAMPER
LM BELT
LOADING PULLEY
TRAY HOLDER (R) SP
MIDDLE GEAR (SP)
DRIVER GEAR (SP)
TRAY HOLDER (L) SP
SW, LEAF
MOTOR ASSY
STOPPER LINK ASSY (AU)
CONTROL CAM (SP)
