CD-3
BREEN -—YURAR

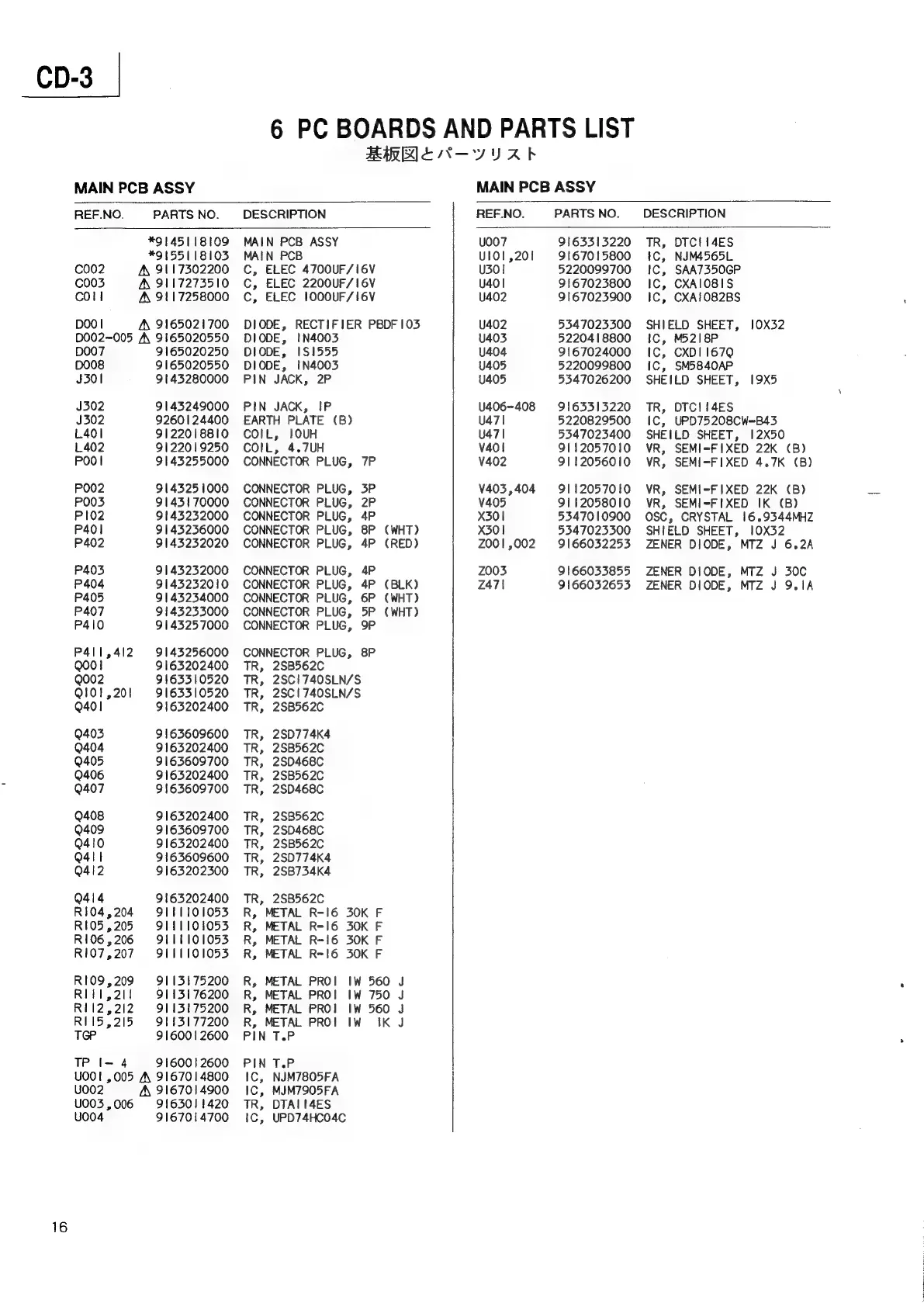

6 PC BOARDS AND PARTS LIST
MAIN PCB ASSY MAIN PCB ASSY
REF.NO. PARTS NO. DESCRIPTION REF.NO. PARTS NO. DESCRIPTION
*9145118109 MAIN PCB ASSY U007 9163313220 TR, DTCII4ES
*9155118103 MAIN PCB UIOI,201 9167015800 IC, NJM4565L
C002 A 9117302200 C, ELEC 4700UF/I6V U30] 5220099700 IC, SAA7350GP
C003 A 9117273510 C, ELEC 2200UF/16V U401 9167023800 IC, CXAIO8IS
coll A 9117258000 C, ELEC I000UF/I6V U402 9167023900 IC, CXAI082BS
DOO | A\ 9165021700 DIODE, RECTIFIER PBDF 103 U402 5347023300 SHIELD SHEET, 10X32
0002-005 A 9165020550 DIODE, !N4003 U403 5220418800 !C, M5218P
D007 9165020250 DIODE, 1S1555 U404 9167024000 IC, CXDI167Q
D008 9165020550 DIODE, IN4003 U405 5220099800 IC, SM5840AP
J30 9143280000 PIN JACK, 2P U405 5347026200 SHEILD SHEET, 19X5
J302 9143249000 PIN JACK, IP U406-408 9163313220 TR, DTCII4ES
J302 9260124400 EARTH PLATE (B) U47] 5220829500 IC, UPD75208CW-B43
L401 9122018810 COIL, IOUH U471 5347023400 SHEILD SHEET, 12X50
L402 9122019250 COIL, 4.7UH v401 9112057010 VR, SEMI-FIXED 22K (B)
POO| 9143255000 CONNECTOR PLUG, 7P Vv402 9112056010 VR, SEMI-FIXED 4.7K (B)
P002 9143251000 CONNECTOR PLUG, 3P V¥403,404 9112057010 VR, SEMI-FIXED 22K (B) =
POO3 9143170000 CONNECTOR PLUG, 2P V405 9112058010 VR, SEMI=-FIXED IK (B)
P102 9143232000 CONNECTOR PLUG, 4P X301 5347010900 OSC, CRYSTAL 16.9344MHZ
P40] 9143236000 CONNECTOR PLUG, 8P (WHT) X30] 5347023300 SHIELD SHEET, 10X32
P402 9143232020 CONNECTOR PLUG, 4P (RED) Z001,002 9166032253 ZENER DIODE, MTZ J 6.2A
P403 9143232000 CONNECTOR PLUG, 4P Z003 9166033855 ZENER DIODE, MTZ J 30C
P404 9143232010 CONNECTOR PLUG, 4P (BLK) Z471 9166032653 ZENER DIODE, MTZ J 9.1A
P405 9143234000 CONNECTOR PLUG, 6P (WHT)
P407 9143233000 CONNECTOR PLUG, 5P (WHT)
P410 9143257000 CONNECTOR PLUG, 9P
P4!1,412 9143256000 CONNECTOR PLUG, 8P
Q00} 9163202400 TR, 2SB562C
Q002 9163310520 TR, 2SCI740SLN/S
QI01,20!1 9163310520 TR, 2SC1740SLN/S
Q401 9163202400 TR, 2SB562C
Q403 9163609600 TR, 2SD774K4
Q404 9163202400 TR, 2SB562C
Q405 9163609700 TR, 2SD468C
Q406 9163202400 TR, 2SB562C
Q407 9163609700 TR, 2SD468C
Q408 9163202400 TR, 2SB562C
Q409 9163609700 TR, 2SD468C
Q410 9163202400 TR, 2SB562C
O41 9163609600 TR, 2SD774K4
Q412 9163202300 TR, 2SB734K4
Q414 9163202400 TR, 2SB562C
R104,204 9111101053 R, METAL R-I6 30K F
R105,205 9111101053 R, METAL R-I6 30K F
R106,206 9111101053 R, METAL R=16 30K F
R107,207 QIIII101053 R, METAL R-I6 30K F
R!I09,209 9113175200 R, METAL PROI IW 560 J
Rltl,20! 9113176200 R, METAL PROI IW 750 J
RII2,212 9113175200 R, METAL PRO! IW 560 J
RlII5,215 9113177200 R, METAL PROI IW IK J
TGP 9160012600 PIN T.P
TP I= 4 9160012600 PIN T.P
YOO! ,005 A 9167014800 IC, NJM7805FA
Uuoo2 A 9167014900 IC, MJM7905FA
U003,006 9163011420 TR, DTAII4ES
Uyo04 9167014700 {C, UPD74HCO4C
