CX-270/CX-210
8
LUBRICATION
AND
VOLTAGE
CONVERSION
—

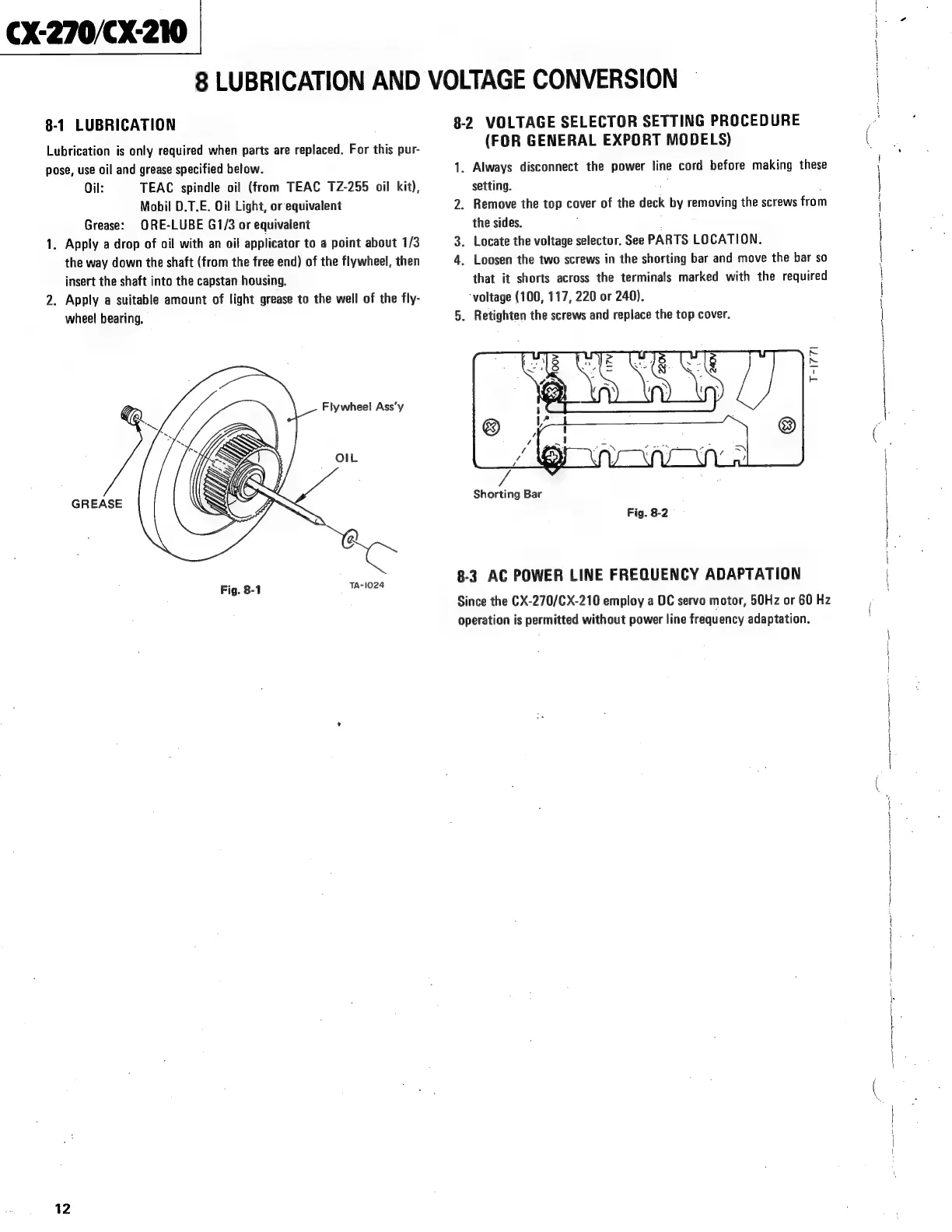

8-1 LUBRICATION
Lubrication is only required when parts are replaced. For this pur-
pose, use oil and grease specified below.
1.
2.
12
Oil: TEAC spindle oil (from TEAC TZ-255 oil kit),
Mobil D.T.E. Oi! Light, or equivalent
Grease: ORE-LUBE G1/3 or equivalent
Apply a drop of oil with an oil applicator to a point about 1/3
the way down the shaft (from the free end) of the flywheel, then
insert the shaft into the capstan housing.
Apply a suitable amount of light grease to the well of the fly-
wheel bearing.
Flywheel Ass’y
OIL
GREASE
Fig. 8-1
8-2 VOLTAGE SELECTOR SETTING PROCEDURE
(FOR GENERAL EXPORT MODELS)
.
Always
disconnect
the
power
line
cord
before
making
these
setting.
.
Remove
the
top
cover
of
the
deck
by
removing
the
screws
from
the sides,
. Locate the voltage selector. See PARTS LOCATION.
_ Loosen the two screws in the shorting bar and move the bar so
that
it
shorts
across
the
terminals
marked
with
the
required
voltage
(100,
117,
220
or 240).
. Retighten the screws and replace the top cover.
T-1771
Shorting Bar
8-3 AC POWER LINE FREQUENCY ADAPTATION
Since the CX-270/CX-210 employ a DC servo motor, 50Hz or 60 Hz
operation is permitted without power line frequency adaptation.
{
\
