Teac Esoteric R-9000 - Lubrication; Lubrication Procedure; Voltage Conversion; Voltage Selector Adjustment

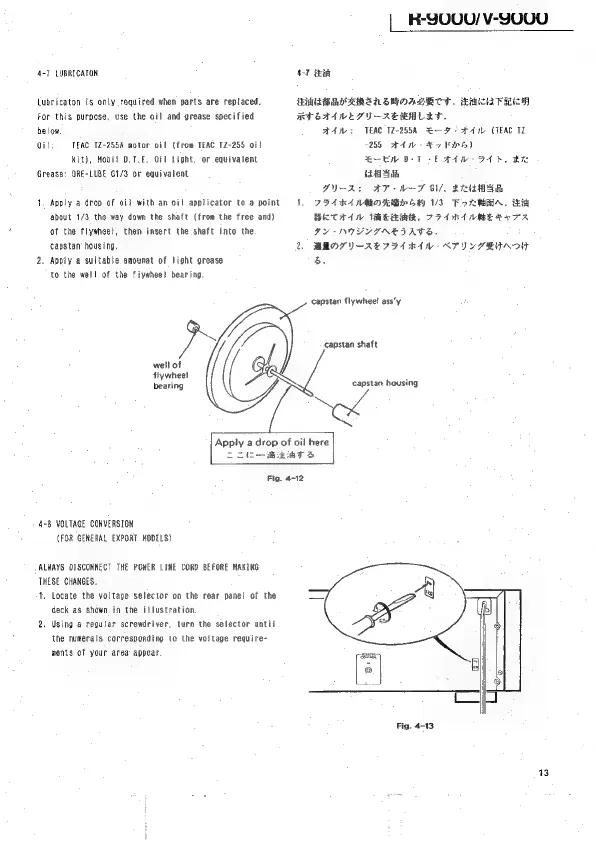

4-7 LUBRICATON
Cubricaton is only required when parts are replaced
For this purpose, use the oil and grease specified
below,
Gil: TEAC TZ-255A motor oi! (from TEAC [2-285 oi!
Kit), Mobil D.T.£. Gl Light, or equivalent
Grease: ORE-LUBE 61/3 or equivalent
1. Apply a drop of oii with an oil applicator to a point
about 1/3. the way down the shaft (from the free and)
of the flywheel, then insert the shaft into the
capstan’ housing.
2. Apply a suitable amounat of light grease
to the well of the fiywheel bearing
well of
flywheel
bearing
| K-90U0U/V-900U
4-7 ER
HABA RRANSHOAGCRCH. Raici FRe
MIE EAAWEFY-AEHALST.
HAM: TEAC T2-255A E—FH - AAP (TEAC TZ
255 AAI Xv KPH)
EUW DT EAA 4h, be
sce :
YVR: AK -W—-T CV, HAA
1. PPAR NAO SH 1/3 Fo tcRiii, HA
BOTA WER. PIA ANE TA
IY -INISYFREAKGS.
2. MEOSV-REDPIARAW- APUYFRINO
b.
capstan flywhee! ass’y
capstan shaft
capstan housing
Fig. 4-12
4-8 VOLTAGE CONVERSION
(FOR GENERAL EXPORT MODELS)
ALWAYS DISCONNECT THE POWER LINE CORD BEFORE MAKING
THESE CHANGES.
1. Locate the voltage selector on the rear pane! of the
deck as shown in the illustration
2, Using a regular screwdriver, Curn the selector unti
the numerals corresponding to the voitage require-
ments of your area appear
Fig. 4-13
13
