Teac Esoteric R-9000 - R;P AMP PCB Check and Adjustment Points

| R-9O00/V-9000
Ri29/R229 Playback dolby level R508/R608 Peak ievel
RI3O/R230 Playback EQ R543 Built-in OSC (1OkHz level}
R160 CPS level R554 Built-in OSC(400Rz level)
R330/R430 Record level L303/L403 Step-up coll
R360 Record bias(CrO.) L304 Bias OSC
R361 Record blas(NORMAL) U102/U202. Bias _trap(Playback)
R364/R464 Record bias U301/U401 MPX filter
R505 /R605 Meter level U305/U0405 Bias trap (Record)

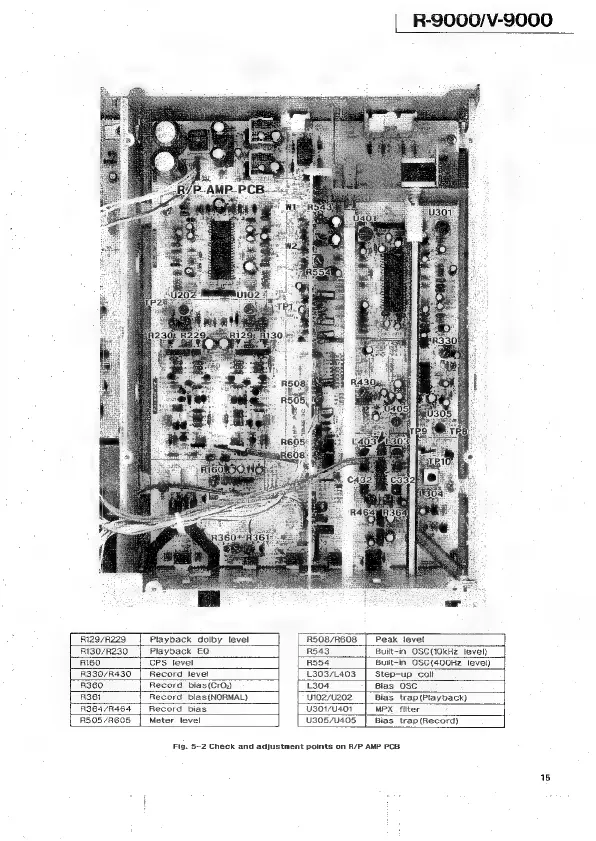

Fig. 5-2 Check and adjustment points on R/P AMP PCB
