Teac Esoteric R-9000 User Manual

R-9000/V-9000

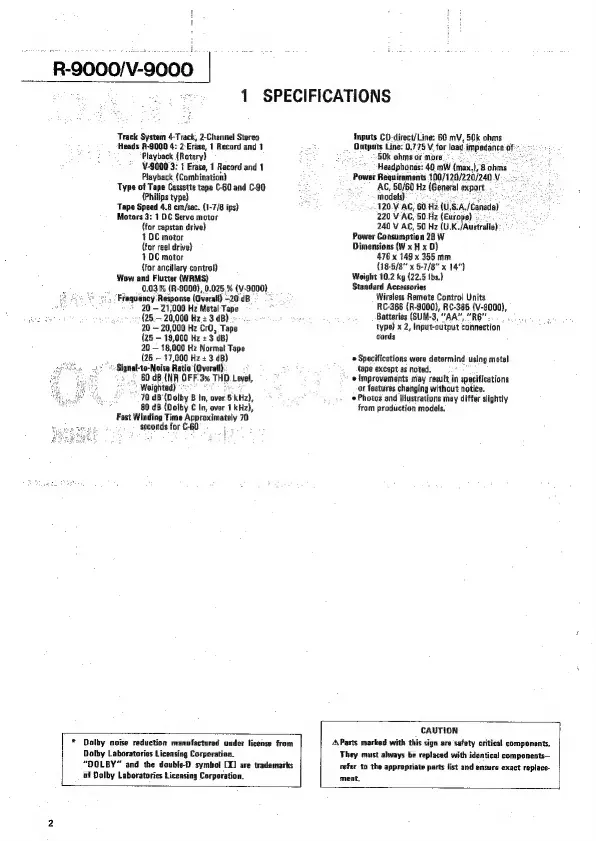

1 SPECIFICATIONS
Track System 4-Track, 2-Channel Stereo
Heads R-9000 4: 2-Erase, 1 Record and 1
Playback (Rotary)
V-9000 3: 1 Erase, 1 Record and 1
Playback (Combination)
Cassette tape C-60 and C-90
1s type)
4.8 cm/sec. (1-7/8 ips)
Motors 3: 1 DC Servo motor
(for capstan drive)
1 DC motor
(for reel drive}
1 DC motor
{for ancillary control)
Wow and Flutter (WRMS)
0.03 % (R-9000), 0.025 % {V-9000)
, Frequency Response (Overall) -20:dB
* 20 — 21,000 Hz Metal Tape
»{25,— 20,000 Hz 3 dB)
20 — 20,000 Hz CrO, Tape
(25 - 19,000 Hz +3 dB)
20 — 18,000 Hz Normat Tape
(25 — 17,000 Hz + 3 dB)
«Signal-to-Noise Ratio (Qverall)
60 dB (NR OFF'3% THD Level,
7 Weighted)
70 dB (Dolby B In, over § kHz),
80 dB (Dolby C In, over 1 kHz),
Fast Winding Time Approximately 70
seconds for C-60
Inputs CO-direct/Line: 60 mV, 50k ohms
Outputs Line: 0.775 V for load impedance of ene
50k ohms or more
Headphones: 40 mW (max.), ohms
Power Requirements 100/120/220/240 Mee
: AC, 50/60 Hz (General export.
models) :
120.V-AC, 60.Hz:(U.S:A., ‘eanada)
220 V-AG, 50 Hz (Europe)
240 V AC, 50 Hz (U.K./Australia):.*
Power Consumption 28 W
Dimensions (W x H x B)
476 x 149 x 355 mm
(18-5/8" x 5-7/8" x 14")
Weight 10.2 kg (22.5 Ibs.)
Standard Accessories
Wireless Remote Control Units
RC-366 (R-9000}, RC-365 (V-9000),
Batteries (SUM-3, “AA”, “R6"
type) x 2, Input-output connection
cords
© Specifications were determind using metal
tape except as noted. 4
improvements may result in specifications
or features changing without notice.
Photos and illustrations may differ slightly
from production models.
CAUTION
AParts marked with this sign are safety critical components,
Dolby Laboratories Licensing Corporation. They must always be replaced with identical components—
“ONOLBY” and the double-D symbol DO are trademarks refer to the appropriate parts list and ensure exact replace-
af Dolby Laboratories Licensing Corporation, anit
* Dolhy noise reduction manufactured under license from
