Teac Esoteric R-9000 - Exploded View 3 (R-9000)

9000
32

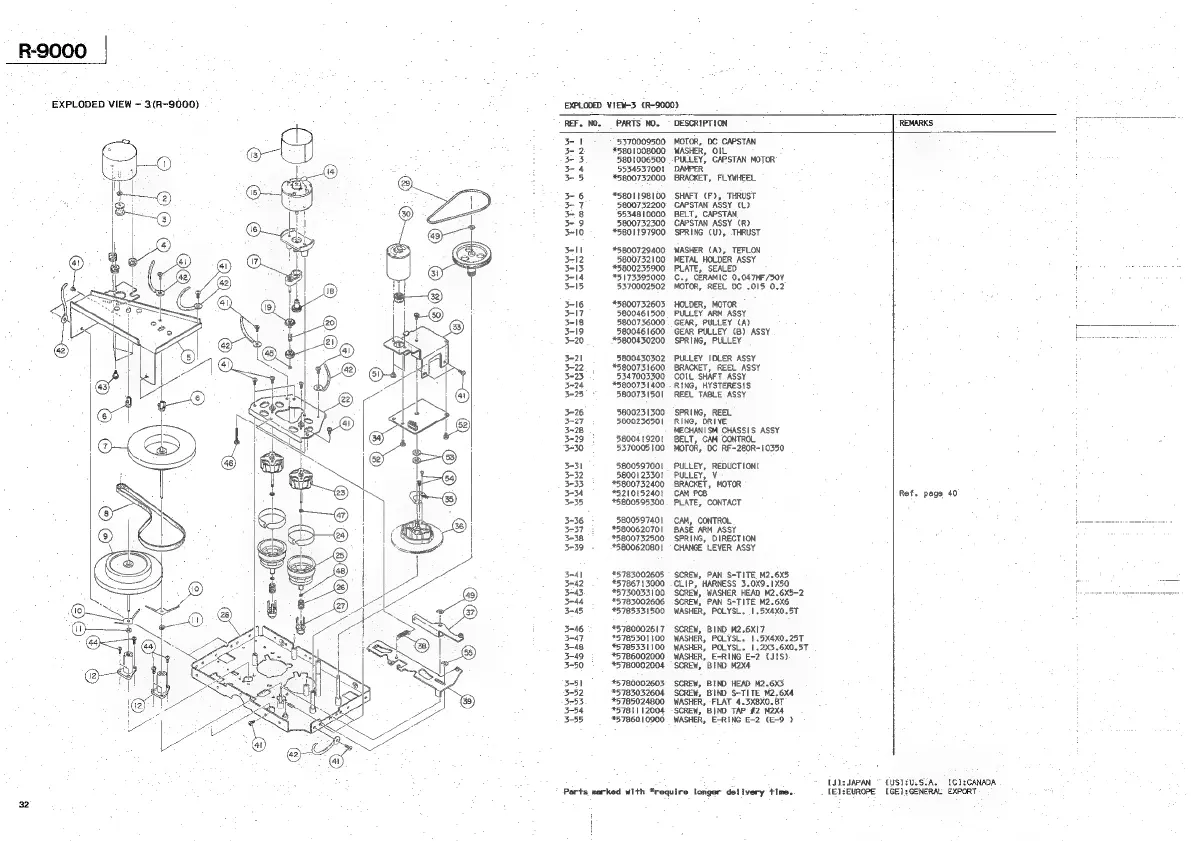

EXPLODED VIEW ~ 3(R-9000)
EXPLODED VIEW-3 {R-9000)
REF, NO. PARTS NO. ~ DESCRIPTION REMARKS
3-1 5370009500 MOTOR, DC CAPSTAN
3- 2 ¥*5801008000 WASHER, OIL
3-3 5801006500 -PULLEY, CAPSTAN MOTOR
3-4 553453700! DAMPER
3-5 *5800732000 BRACKET, FLYWHEEL
3-6 *5801198100 SHAFT (F), THRUST
3-7 5800732200 CAPSTAN ASSY (L)
3-8 5534810000 BELT, CAPSTAN
3-9 5800732300 CAPSTAN ASSY (R)
3-10 *5801!97900 SPRING (U), THRUST
31 *5800729400 WASHER (A), TEFLON
3-12 5800732100 METAL HOLDER ASSY
3-13 5800235900 PLATE, SEALED
3-14 *5173395000 C., CERAMIC 0.047MF/50V
3-15 5370002502 MOTOR, REEL DC .015 0.2
3-16 %*5800732603 HOLDER, MOTOR
3-17 5800461500 PULLEY ARM ASSY
3-18 5800736000. GEAR, PULLEY. (A)
3-19 5800461600 GEAR PULLEY (8) ASSY
3-20 *5800430200 SPRING, PULLEY
3-21 5800430302 PULLEY IDLER ASSY
3-22 *5800731600. BRACKET, REEL ASSY
3-23 5347003300 COIL SHAFT ASSY
3-24 *5800731400 . RING, HYSTERES!S
3-25 5800731501 REEL TABLE ASSY
3-26 5800231300 SPRING, REEL
3-27 5800236501 RING, DRIVE
3-28 MECHANISM CHASSIS ASSY
3-29 580041920! BELT, CAM CONTROL
3+30 5370005100 MOTOR, DC RF-280R-10350
3-31 580059700! PULLEY, REDUCTION!
3-32 580012330! PULLEY, V
3-33 *5800732400 BRACKET, MOTOR
3-34 *5210152401 CAM PCB Ref. page 40
3-35 *5800595300. PLATE, CONTACT
3-36 5800597401 CAM, CONTROL
3-37 *5800620701 BASE ARM ASSY.
3-38 *5800732500 SPRING, DIRECTION
3-39 *580062080! CHANGE LEVER ASSY
3-4) *5783002605 SCREW, PAN S-TITE, M2.6X5
3-42 *5786713000 CLIP, HARNESS 3.0X9. 1X50
3-43. *5730033100 SCREW, WASHER HEAD M2,6X5-2
3-44 *5783002606 SCREW, PAN S-TITE M2.6X6
3-45 *5785331500 WASHER, POLYSL. .1.5X4X0,5T
3-46 *5780002617 SCREW, BIND M2,6XI7
3-47 *5785301}00 WASHER, POLYSL. !.5X4X0.25T
3-48 *5785331100 WASHER, POLYSL. |.2X3.6X0.5T
3-49 *5786002000 WASHER, E-RING E-2 (JIS)
3-50 * *5780002004 SCREW, BIND M2X4
3-51 *5780002603 SCREW, BIND HEAD M2.6X3
3-52 *5783032604 SCREW, BIND S-TITE M2,6X4
anos *5785024800 WASHER, FLAT 4.3X8X0.8T
3-54 *5781112004 SCREW, BIND TAP #2 M2X4
3-55 *5786010900 WASHER, E-RING E-2 (E-9 )
y [J1:JAPAN © [US]:U.S.A. IC}:CANADA
Parts marked with *require longer delivery time. EEI:EUROPE (GE1:GENERAL EXPORT
