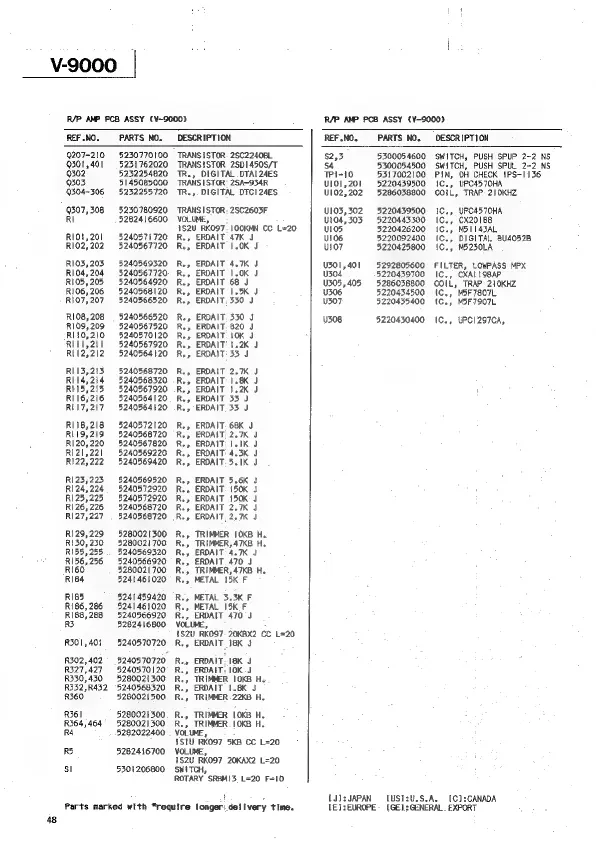

Teac Esoteric R-9000 - R;P Amp PCB Assy Parts List (V-9000) - Continued

v-9000
R/P AMP PCB ASSY (¥~9000)
R/P AMP PCB ASSY (¥-9000)
REFNO. PARTS NO. DESCRIPTION REFNO. PARTS NO. DESCRIPTION
Q207-210 5230770100 TRANSISTOR. 2SC2240BL
Q501,401 5231762020 TRANSISTOR 2SD1450S/T
9302 5232254820 TR., DIGITAL DTAI24ES
9303 5145085000 TRANSISTOR: 2SA-934R
Q304-306 5232255720 TR., DIGITAL DTCI24ES
Q307,308 5230780920 TRANSISTOR: 2SC2603F
RI 5282416600 VOLUME,
1S$2U RKO97. |OOKMN CC L=20
RIO}, 201 5240571720 R., ERDAIT 47K J
R102,202 5240567720 R., ERDAIT 1.0K J
R103,203 5240569320 R., ERDAIT 4.7K J
RI04,204 5240567720: R., ERDAIT 1.0K J
Rt05,205 5240564920 R., ERDAIT 68 J
R106,206 5240568120 R., ERDAIT 1.5K J
R107, 207 5240566520 R., ERDAIT, 330 J
R108,208 | 5240566520 R., ERDAIT. 330 J
R109,209 5240567520 R., ERDAIT, 820 J
RI30,210 5240570120 R., ERDAIT 10K J
RII1,211 5240567920 R., ERDAIT' 1.2K J
RI12,212 5240564120 R., ERDAIT 33 J
RI13,2!3 5240568720 R., ERDAIT 2.7K J
RI14,214 5240568320 .R., ERDAIT 1.8K J
RI15,215 5240567920 .R., ERDAIT 1.2K J
RI16,216 5240564120. R., ERDAIT 33 J
RUI7,217 5240564120 .R., ERDAIT 33 J
R1I18,218 5240572120 R., ERDAIT. 68K J
RI19,219 §240568720 R., ERDAIT 2.7K J
R1I20,220 5240567820 R., ERDAIT 1.1K J
RI21,221 5240569220 R., ERDAIT 4.3K J
R122,222 5240569420 R., ERDAIT.5.1K J
R123;223 5240569520 R., ERDAIT 5.6K
R124,224 5240572920 R., ERDAIT. 150K
R1I25,225 5240572920 R., ERDAIT 150K
R126,226 5240568720 R., ERDAIT 2.7K
RI27,227 | 5240568720 .R., ERDAIT, 2.7K
eecua
R129,229 5280021300 R., TRIMMER |0KB H.
R#30,230 5280021700 R., TRIMMER,47KB H.
Rt55,255 . 5240569320 R., ERDAIT 4.7K J
R156,256 5240566920 R., ERDAIT 470 J
RI60 5280021700 R., TRIMMER, 47KB H.
R184 5241461020 R., METAL 15K F
RI85 5241459420 R., METAL 3.3K F
R186,286 5241461020 R., METAL I5K F
R188,288 5240566920 R., ERDAIT 470 J
R3 5282416800 VOLUME, :
§$2U RKO97- 20KBX2 CC L=20
R301, 405 5240570720 R., ERDAIT J8K J
R302,402 5240570720 R., ERDAIT. 18K J
R327,427 5240570120 R., ERDAIT: 10K J
R330,430 5280021300 R., TRIMMER 1OKB H..
R332,R432 5240568320 R., ERDAIT 1.8K J
R360 5280021500 R., TRIMMER.22KB H.
R361 5280021300. R., TRIMMER LOKB H.
R364,464° 5280021300 R,, TRIMMER. 10KB H,
R4 5282022400 . VOLUME,
{SIU RKO97 5KB CC L=20
RS 5282416700 VOLUME,
1S2U RKOS7 20KAX2 L=20
SI 5303206800 SWITCH,
ROTARY SRBMI3 L=20 F=10
Parts marked with *require longer: delivery time.
$2,5 5300054600 SWITCH, PUSH SPUP 2-2 NS
S4 5300054500 SWITCH, PUSH SPUL 2-2 NS
TPI=10 5317002100 PIN, OH CHECK 1PS-1136
UICI,201 5220439500 1C., UPC4570HA
U102,202 5286038800 COIL, TRAP. 210KHZ
Ul03,302 5220439500 {1C., UPC4570HA
U104,303 5220443300 IC., CX20188
UL0S 5220426200 1C., M5I143AL
UL06 5220092400 1IC., DIGITAL BU4052B
U!07 5220425800 !C., M5230LA
U301,401 5292805600 FILTER, LOWPASS MPX
U304 5220439700 IC,, CXAI19B8AP
U305,405 5286038800 COIL, TRAP 210KHZ
U306 5220434500 1C,, MSF7807L
307 5220435400 [C., M5F7907L
308 5220430400 1C., UPCI297CA,
[J}:JAPAN [UST:U.S.A, [C]:CANADA
LTET:EUROPE [GE]1:GENERAL. EXPORT e
