Installation
Installing speakers correctly is extremely important. The
volume of low frequencies will seem to change accord-
ing to the positions where the speakers are installed. Test
various installation positions to find the best places for
maximizing the capabilities of the speakers.
• Place the active unit to the left and the passive unit
to the right.

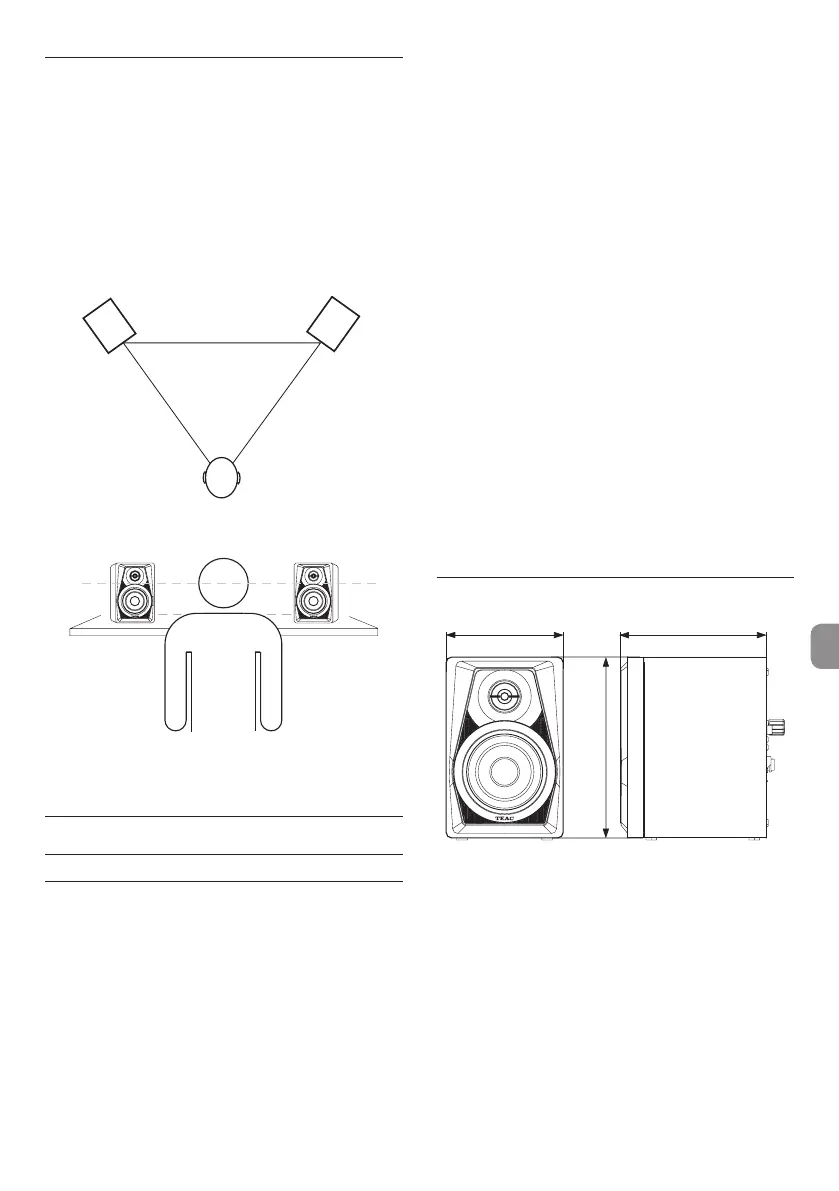

• Place the speakers so that they form an equilateral
triangle with the listening position.
LEFT: Active unit RIGHT: Passive unit
• Install each speaker so that the top of its woofer is
at ear height.
• Do not install speakers near mirrors, glass or other
surfaces that reflect sound. Do not place anything
between the speakers and the listening position.
Specifications
General
8
Maximum effective output (distortion: 10%)
14W + 14W
8
Speaker units
3-inch (76.2mm) woofer
0.5-inch (12.7mm) tweeter
8
Enclosure
Bass reflex type
8
Frequency response
80 Hz–22 kHz
8
Crossover frequency
8 kHz
8
External input jacks
RCA pin jacks, stereo mini jack
8
Input impedance
50 kΩ
8
Power
AC adapter (PS-P1524E)
Input voltage: AC 100–240 V (50–60 Hz)
Output voltage: DC 15 V
Output current: 2.4 A
8
Power consumption
6.2 W
8
Dimensions
110 × 170 × 138 mm (4 3/8” × 6 3/4” × 5 1/2”)
(width × height × depth, excluding protrusions)
8
Weight
Active unit: 1.1 kg (2 1/2 lb)
Passive unit: 1.0 kg (2 1/4 lb)
Dimensional drawing
170mm
• Illustrations in this manual might differ in part from
the actual product.
• Weight and dimensions are approximate.
• Specifications and external appearance might be
changed without notification to improve the product.
