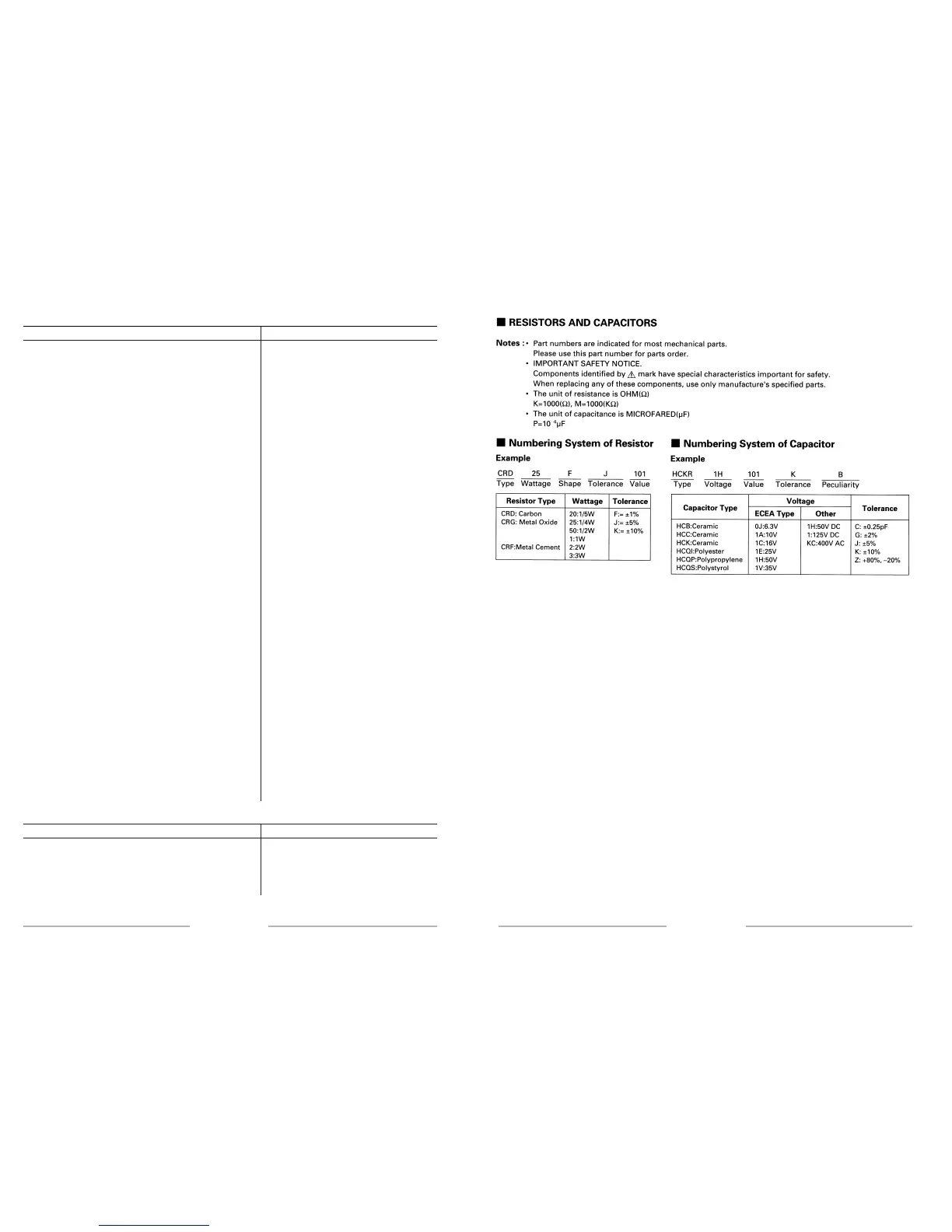

SERVICE MANUAL SERVICE MANUAL
37 38
EXPLODED VIEW
REF. NO. PARTS NO. DESCRIPTION REMARKS
1 9A08124900 WINDOW, FIP CGU1A224
2 9A08124800 DOOR, CD CGR1A173M9ZK87
3 9A08127900 BADGE, TEAC KGB1A080Z
4 9A08133100 ORNAMENT,FRONT(AL) KGK1A055ZC21
5 9A08163900 CAP , KNOB KGK2A056C21
6 9A08163800 KNOB , ROTARY KBN2A119
7 9A08128300 ORNAMENT, VOLUME KGR1A174MBC22
8 9A08125100 PANEL, SUB CGW1A271M9ZK87
9 9A08125000 WINDOW, SENSOR CGU1A225
10 9A08124500 KNOB, MODE CBT1A682M9K87
11 9A08124300 KNOB, POWER CBT1A680M9K87
12 9A08124700 INDICATOR, POWER CGL1A178
13 9A08124400 KNOB, FUNCTION CBT1A681M9K87
14 9A08124600 KNOB, BAND CBT1A683M9ZK87
15 9A08164000 VOLUME KNOB ASS’Y KGK2A056ZA
16 PCB POWER/SUB(CR-H80)
17 9A07872900 FOOT CKL1A059M9K63
18 9A07889500 CUSHION, FOOT KHG1A165
19 9A07873500 LOCKER, TOP CMH1A088
20 9A07878700 CHASSIS, BOTTOM CUA1A175
21 9A07873600 SUPPORT, MECHA CMH1A091
22 9A07870900 MECHANISM KSL2130CCM BJDKSL2130CCM
23 9A07891600 SUPPORT, PCB KMH1A092
24 CD PCB
25 POWER SUB PCB ASS’Y
26 9A08190800 PANEL, REAR TCA KKF3A177W
27
£ 9A06754900 BUSHING,AC CORD KHR1A028
28
£ 9A07872600 POWER,CORD CJA523FBY
29 9A07891700 SHEET,INSULATOR KMX1A094
30 9A08130200 CABINET,TOP KKC2B100S26
31 9A06252900 BRACKET , PCB KMD1A081
32 9A07873600 SUPPORT, MECHA CMH1A091
33 9A08877300 BRACKET,FLT CMD1A374
S1 9A01397400 SCREW, KTS3+8J KTS3+8J
S2 9A01377300 SCREW, KTB3+10GFZ KTB3+10GFZ
S3 9A01377400 SCREW, KTB3+10G KTB3+10G
S4 9A05985100 SCREW, KTW3+10G KTW3+10G
S5 9A05339200 SCREW, KTW3+8J KTW3+8J
S6 9A01535800 SCREW, KTB3+8J KTB3+8J
S7 9A01377200 SCREW, KTB3+8JFZ KTB3+8JFZ
S8 9A01420500 SCREW, KTB3+8G KTB3+8G
S9 9A06700000 SCREW, KTW3+10J KTW3+10J
S10 9A06028100 SCREW, KTW3+16J KTW3+16J
S11 9A01477800 SCREW, KTB4+8F KTB4+8F
S12 9A05966100 SCREW, KTW3+6J KTW3+6J
F 902
£ 9A07888700 FUSE 2A, 250V F902 KBA2C2000TLU
INCLUDED ACCESSORIES
REF. NO. PARTS NO. DESCRIPTION REMARKS
9A08164300 SPEAKER ASS'Y LS-H80A
9A06261200 ANT, FM T KSA1A010Z
9A07871200 REMOCON TRANSMITTER ASS'Y CARTCR-H100TCCC
9A07927700 OWNER'S MNL E/F, MC-D80 CQX1A568Y
9A08133400 AM LOOP ANTENNA ASS'Y KSA2A011Z
