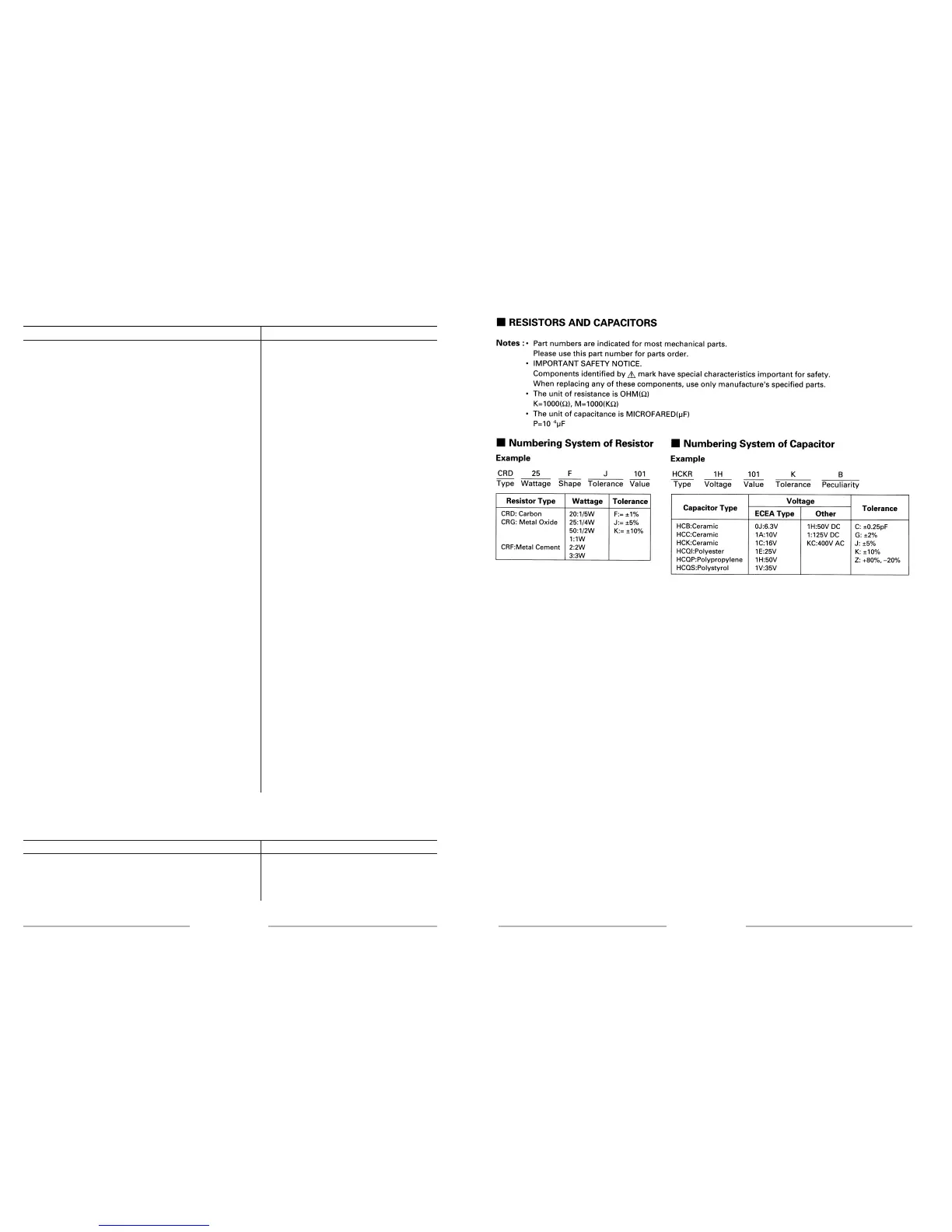

EXPLODED VIEW
REF. NO. PARTS NO. DESCRIPTION REMARKS
1 9A08124900 WINDOW,FIP CGU1A224
2 9A09330300 DOOR,CD CGR1A173YK122
3 9A08877500 BADGE,TEAC KGB1A080X
4 9A09331700 ORNAMENT,FRONT(AL) CGK1A055TCC18
5 9A09331200 KNOB,CAP KGK2A056C18
6 9A08163800 KNOB,ROTARY KBN2A119
7 9A08128300 ORNAMENT,VOLUME KGR1A174MBC22
8 9A09331800 PANEL,SUB CGW1A271WK122
9 9A08125000 WINDOW,SENSOR CGU1A225
10 9A09331500 KNOB,MODE CBT1A682K122
11 9A09331300 KNOB,POWER CBT1A680K122
12 9A09055900 INDICATIOR,POWER CGL2A178
13 9A09331400 KNOB,FUNCTION CBT1A681K122
14 9A09331600 KNOB,BAND CBT1A683YK122
15 9A09331110 VOLUME,KNOB ASS'Y KGK2A056XA
16
---------- PCB,SUB
17 9A07872900 FOOT CKL1A059M9K63
18 9A07889500 CUSHION,FOOT KHG1A165
19 9A07873500 LOCKER,TOP CMH1A088
20 9A07878700 CHASSIS,BOTTOM CUA1A175
21 9A07873600 SUPPORT,MECHA CMH1A091
22 9A09056400 MECHANISM HJDKSL2130CCM
23 9A07891600 SUPPORT,PCB KMH1A092
24
---------- PCB,CD
25
---------- PCB,POWER
26 9A09332200 REAR PANEL CKF3A177Q
27 £ 9A06754900 BUSHING,AC CORD KHR1A028
28
£ 9A07872600 POWER,CORD CJA523FBY
29 9A07891700 SHEET,INSULATOR KMX1A094
30 9A09332100 TOP CABINET CKC6B100S1
31 9A06252900 BRACKET,PCB KMD1A081
S 1 9A09332600 SCREW,CTS3+8J CTS3+8J
S 2 9A09330500 SCREW,CTB3+10GFZ CTB3+10GFZ
S 3 9A09331900 SCREW,CTB3+10G CTB3+10G
S 4 9A09332700 SCREW,CTW3+10G CTW3+10G
S 5 9A09333000 SCREW,CTW3+8J CTW3+8J
S 6 9A09330600 SCREW,CTB3+8J CTB3+8J
S 7 9A09330700 SCREW,CTB3+8JFZ CTB3+8JFZ
S 8 9A09332400 SCREW,CTB3+8G CTB3+8G
S 9 9A09330800 SCREW,CTW3+10J CTW3+10J
S10 9A09332800 SCREW,CTW3+16J CTW3+16J
S11 9A09332500 SCREW,CTB4+8F CTB4+8F
S12 9A09332900 SCREW,CTW3+6J CTW3+6J
F902
£ 9A07888700 FUSE,2A 250V KBA2C2000TLU
INCLUDED ACCESSORIES
REF. NO. PARTS NO. DESCRIPTION REMARKS
9A09330100 SPEAKER SYSTEM CLS-MC85CC
9A07871200 REMOCON TRANSMITTER ASS'Y CARTCR-H100TCCC
9A08886000 ANT,FM T CSA1A010Z
9A08886100 AM LOOP ANTENNA ASS'Y CSA3A011Z
9A08900900 OWNER'S MNL,E/F MC-D85 CQX1A568T
