The player has both analogue and digital audio output. The analogue
audio is two channel. The digital audio is outputted from the coaxial, and
sound quality is much better than the analogue audio.
Note:
The physical connection should come with audio output setup of this
unit. Please refer to Audio Setup in system setup.
2ch output
Use a pair of audio cable (red for right/white for left) to connect the
audio input of the TV or AV amplifier to the audio output of this unit .
Use the specified coaxial cable to connect the coaxial output of this unit
to the coaxial input of power Amplifier
Coaxial Digital Audio

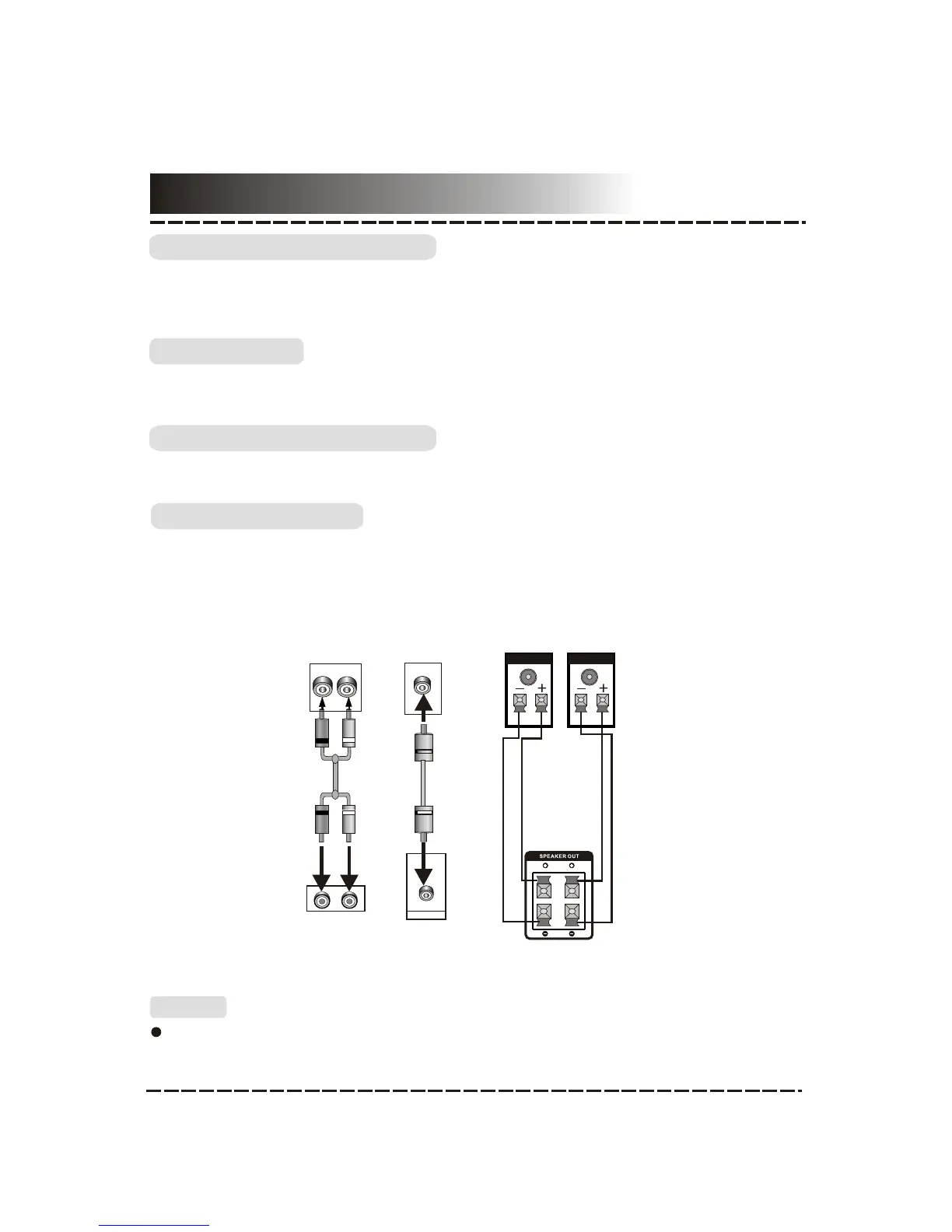

Audio system connection:
Speaker output
Connection
Use the specified cable(white+, black-) in the accessories to connect
this unit to the input of sound boxes.
Speaker
R L
DIGITAL AUDIO
COAXIAL
COAXIAL
Coaxial Output
Digital Audio Input
R
L
2CH Audio Output
-8-
The player has both analogue and digital audio output. The analogue
audio is two channel. The digital audio is outputted from the coaxial, and
sound quality is much better than the analogue audio.
Note:
The physical connection should come with audio output setup of this
unit. Please refer to Audio Setup in system setup.
2ch output
Use a pair of audio cable (red for right/white for left) to connect the
audio input of the TV or AV amplifier to the audio output of this unit .
Use the specified coaxial cable to connect the coaxial output of this unit
to the coaxial input of power Amplifier
Coaxial Digital Audio
Audio system connection:
Speaker output
Connection
Use the specified cable(white+, black-) in the accessories to connect
this unit to the input of sound boxes.
Speaker
R L
DIGITAL AUDIO
COAXIAL
COAXIAL
Coaxial Output
Digital Audio Input
R
L
2CH Audio Output
-8-
The player has both analogue and digital audio output. The analogue
audio is two channel. The digital audio is outputted from the coaxial, and
sound quality is much better than the analogue audio.
Note:
The physical connection should come with audio output setup of this
unit. Please refer to Audio Setup in system setup.
2ch output
Use a pair of audio cable (red for right/white for left) to connect the
audio input of the TV or AV amplifier to the audio output of this unit .
Use the specified coaxial cable to connect the coaxial output of this unit
to the coaxial input of power Amplifier
Coaxial Digital Audio
Audio system connection:
Speaker output
Connection
Use the specified cable(white+, black-) in the accessories to connect
this unit to the input of sound boxes.
Speaker
R L
DIGITAL AUDIO
COAXIAL
COAXIAL
Coaxial Output
Digital Audio Input
R
L
2CH Audio Output
2CH Audio Input
R L
TV/Monitor Input
DVD Output
Speaker output
