Connections
V
After all connections are complete, connect the power cord’s plug to the AC
wall outlet.
o Read the instructions of each device that you intend to use with this unit.
o Do not bundle connecting cables with power cords. Doing so could cause noise.
o Be sure to connect each plug securely.
D
B
B
A
C

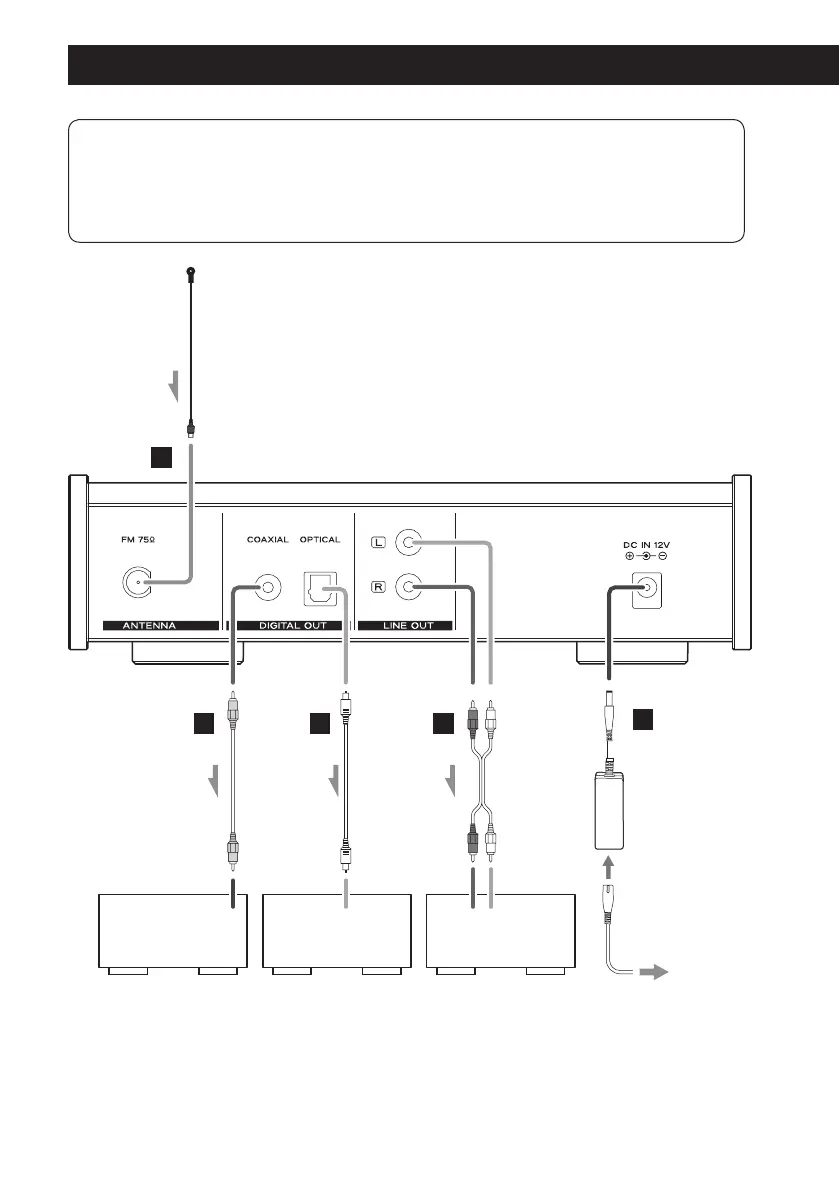

FM antenna
Optical digital cable
RCA coaxial digital cable
DIGITAL IN
(OPTICAL)
DIGITAL IN
(COAXIAL)
Digital audio input
device
Digital audio input
device
Wall outlet
Audio input
(LINE IN, etc.)
RCA audio cables
Audio input device
Included power cord
for AC adapter
