Teac R-919X Service Manual

V-970X/R-919X

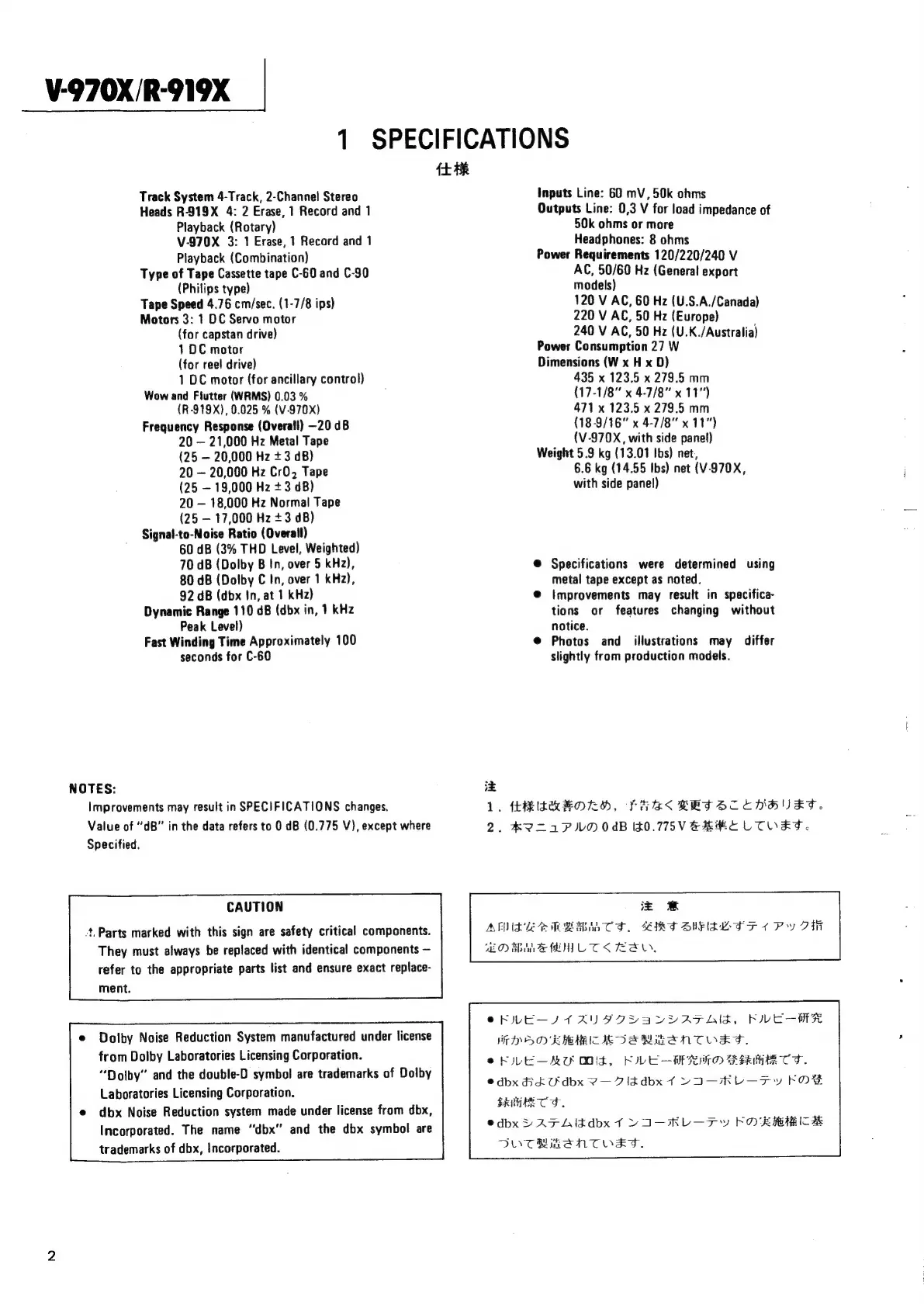

1 SPECIFICATIONS
Track System 4-Track, 2-Channel Stereo
Heads R-919X 4: 2 Erase, 1 Record and 1
Playback (Rotary)
V-970X 3: 1 Erase, 1 Record and 1
Piayback (Combination)
Type of Tape Cassette tape C-60 and C-90
(Philips type)
Tape Speed 4.76 cm/sec. (1-7/8 ips)
Motors 3: 1 OC Servo motor
(for capstan drive)
1 DC motor
(for reel drive)
1 DC motor (for ancillary control)
Wow and Flutter (WRMS) 0.03 %
(R-919X), 0.025 % (V-970X)
Frequency Response (Overatl) —20 dB
20 — 21,000 Hz Metal Tape
(25 — 20,000 Hz +3 dB)
20 — 20,000 Hz CrO, Tape
(25 — 19,000 Hz +3 dB)
20 — 18,000 Hz Normal Tape
(25 — 17,000 Hz +3 dB)
Signal-to-Noise Ratio (Overall)
60 dB (3% THD Level, Weighted)
70 dB (Dolby B In, over 5 kHz),
80 dB (Dolby C In, over 1 kHz),
92 dB (dbx In, at 1 kHz)
Dynamic Range 110 dB (dbx in, 1 kHz
Peak Level)
Fast Winding Time Approximately 100
seconds for C-60
NOTES:
Improvements may result in SPECIFICATIONS changes.
Value of “dB” in the data refers to 0 dB (0.775 V), except where
Specified.
CAUTION
+t. Parts marked with this sign are safety critical components.
They must always be replaced with identical components —
refer to the appropriate parts list and ensure exact replace-
ment.
e Dolby Noise Reduction System manufactured under license
from Dolby Laboratories Licensing Corporation.
“Dolby” and the double-D symbol are trademarks of Dolby
Laboratories Licensing Corporation.
dbx Noise Reduction system made under license from dbx,
Incorporated. The name ‘‘dbx” and the dbx symbol are
trademarks of dbx, Incorporated.
fi tk
Inputs Line: 60 mV, 50k ohms
Outputs Line: 0,3 V for load impedance of
50k ohms or more
Headphones: 8 ohms
Power Requirements 120/220/240 V
AC, 50/60 Hz (General export
models)
120 V AC, 60 Hz (U.S.A./Canada)
220 V AC, 50 Hz (Europe)
240 V AC, 50 Hz (U.K./Australia)
Power Consumption 27 W
Dimensions (W x H x D)
435 x 123.5 x 279.5 mm
(17-1/8" x 4-7/8" x 11")
471 x 123.5 x 279.5 mm
(18-9/16" x 4-7/8" x 11")
(V-970X, with side panel)
Weight 5.9 kg (13.01 Ibs) net,
6.6 kg (14.55 Ibs) net (V-970X,
with side panel)
@ Specifications were determined using
metal tape except as noted.
© Improvements may result in specifica-
tions or features changing without
notice.
@ Photos and illustrations may differ
slightly from production models.
iz
1. HHEISKBOED, PSK REFSCEMHVUET.
2. KVIAP IMO OGBld0.775V CHEE CTOETF.
i=
AMIEL E ABI CH, IRS SWAY SS 4 Py DHF
EO MW ARH TSC RA,
eRULE-—U fT ZUFFDVSALVVATAlS, KILE HR
FED OE EHEIC IRD ERLE SNTOES.
eKIVDE—RU OO1k, KIDEC EPR O FSR TT.
@dbx Hk Udbx V—Viddbx 1 VI—WHEL—-Fy FOE
SRE TSH.
edbx PAF Ald dbx 1 VI-RL—-Fy KOR WIECH
DUTHMSNTOEF.
