Teac R-919X Service Manual

V-970X/R-919X
3 PARTS LOCATION
3B an Bc im
POWER SW PCB Power transformer JOINT PCB D DBX PCB
SELECTOR PCB JOINT PCB C MAIN PCB
(General export)
70us sw METAL sw JOINT PCB A DISPLAY PCB
FWD Cassette sw REV JOINT PCB B
Rec safety sw Rec safety sw
(R-9I9X only)

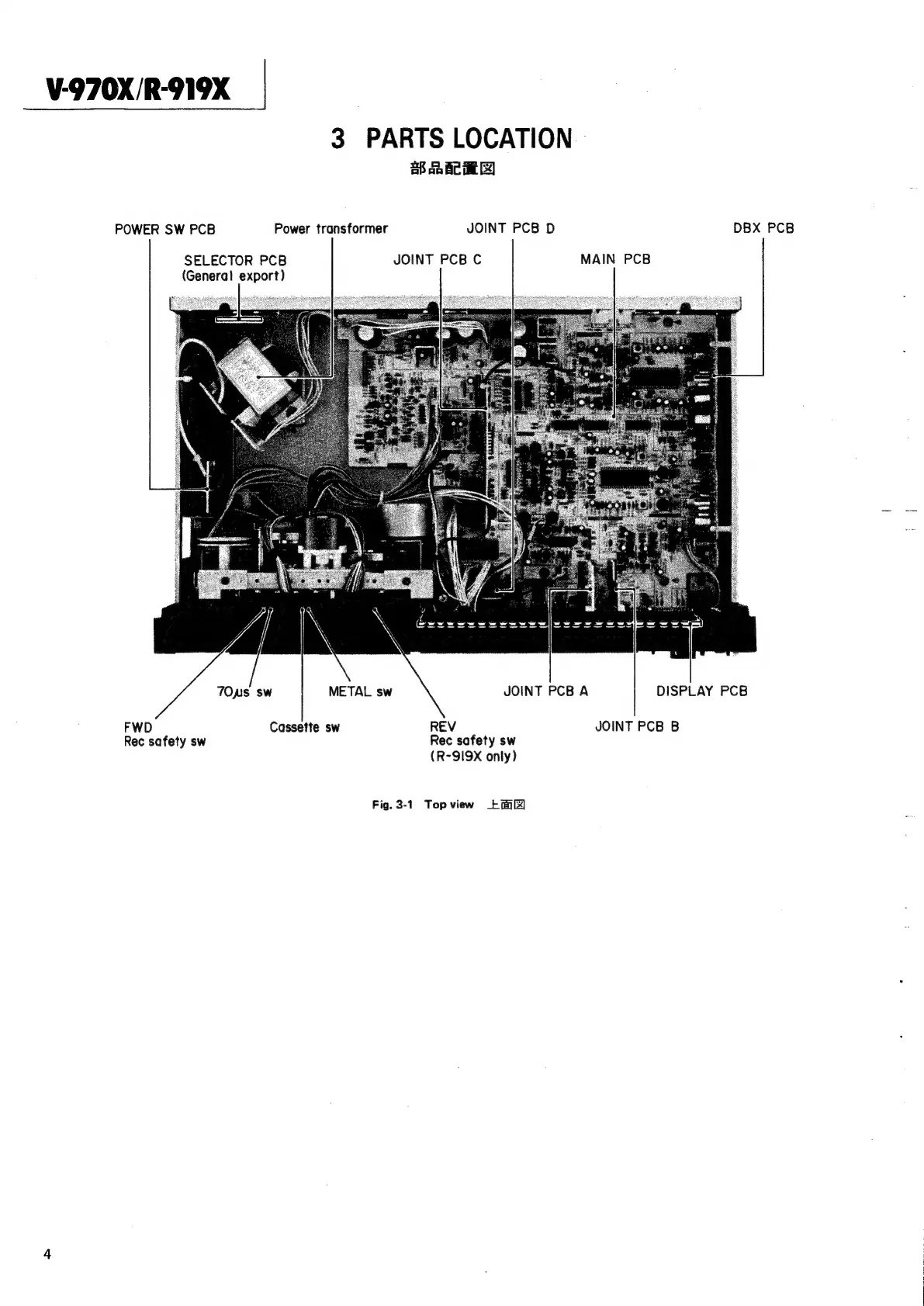

Fig. 3-1 Topview tm
