Teac SL-D910 - Page 6

6
SL-D910

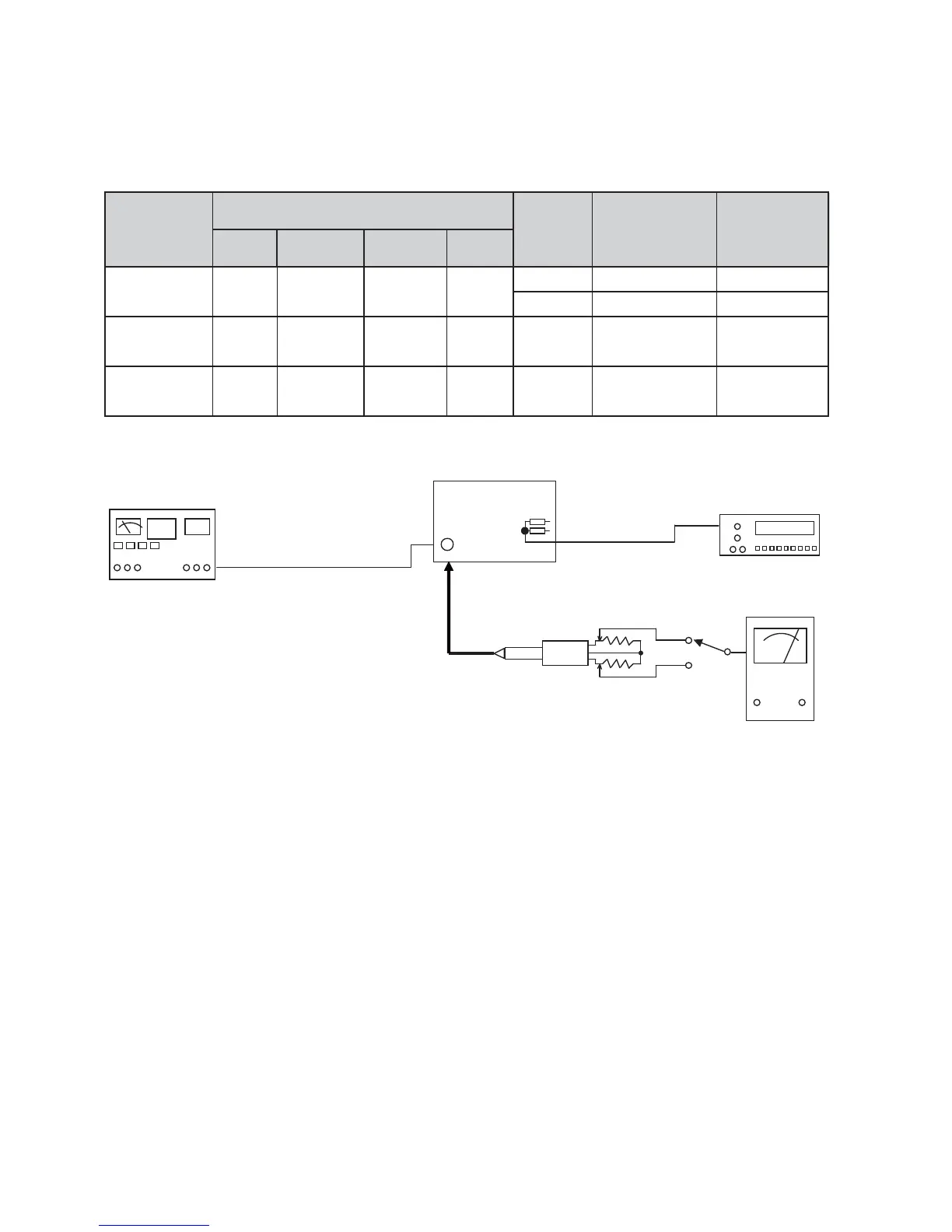

3-2-2. FM TUNER
ITEM
SG SETTING
TUNER
SETTING
ADJUSTMENTS
MEASURING
POINTS.
RESULT
Audio Modulation Frequency Output
1.VOLTAGE
108MHz Check VT 7 +/-0.5V
87.5MHz Check
2.ANT Coil 1KHz 22.5kHz 90.1MHz 76dBuV 90.1MHz Check
Maximun output
level
3.adjustment 1KHz 22.5kHz 106.1MHz 76dBuV 106.1MHz Check
Maximun output
level
Di
g
ital multimeter
S1
75 ohm
FM Signal generator
A
C voltmeter
FM
SL-D910
PHONES
C404
R450
VT voltage
1K Ω
1K Ω
