>[-X150

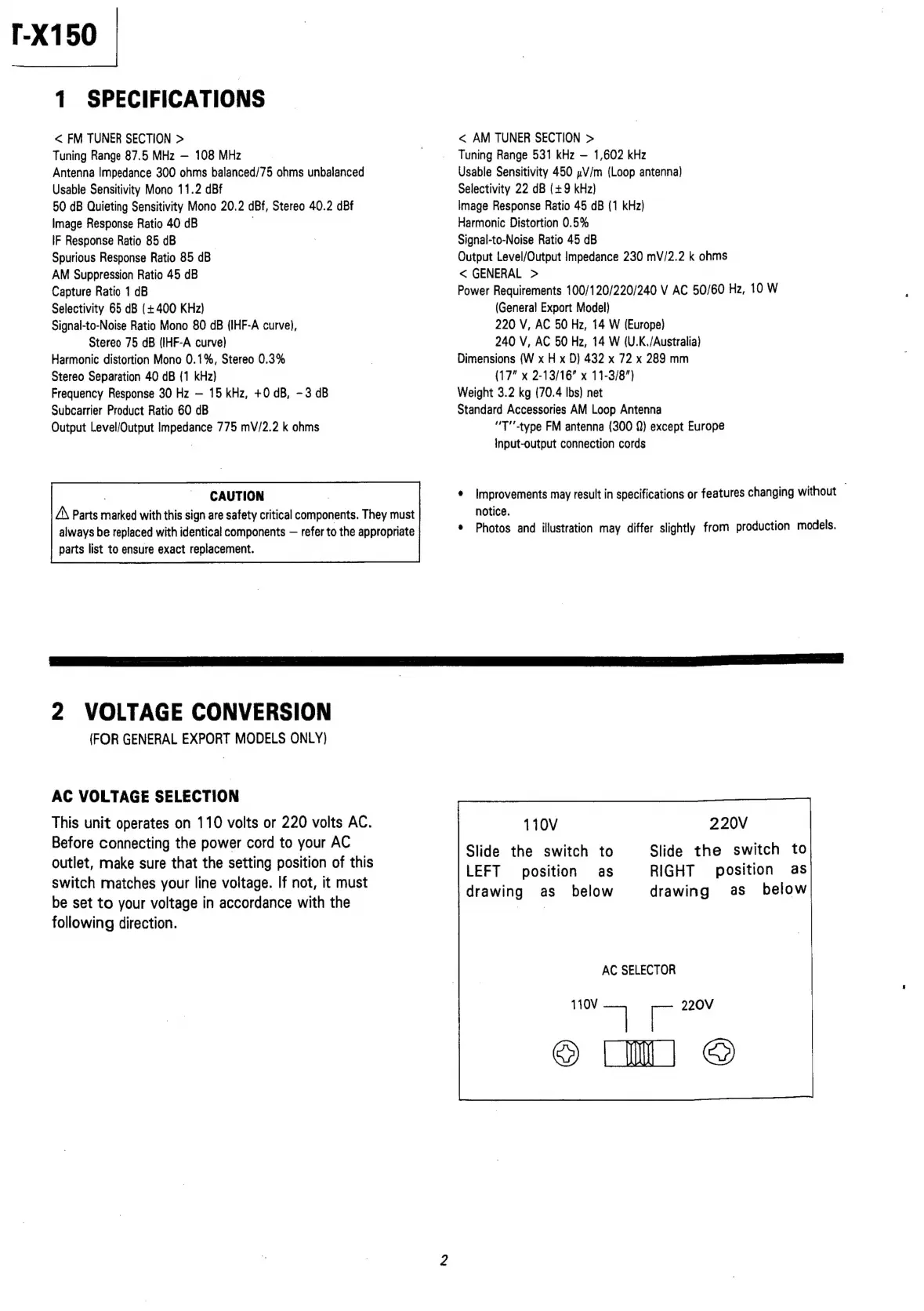

1 SPECIFICATIONS
< FM TUNER SECTION > < AM TUNER SECTION >
Tuning Range 87.5 MHz — 108 MHz : | Tuning Range 531 kHz — 1,602 kHz
Antenna Impedance 300 ohms balanced/75 ohms unbalanced Usable Sensitivity 450 pV/m (Loop antenna)
Usable Sensitivity Mono 11.2 dBf Selectivity 22 dB (+9 kHz)
50 dB Quieting Sensitivity Mono 20.2 dBf, Stereo 40.2 dBf Image Response Ratio 45 dB (1 kHz)
Image Response Ratio 40 dB Harmonic Distortion 0.5%
IF Response Ratio 85 dB | Signal-to-Noise Ratio 45 dB
Spurious Response Ratio 85 dB Output Level/Output Impedance 230 mV/2.2 k ohms
AM Suppression Ratio 45 dB < GENERAL >
Capture Ratio 1 dB Power Requirements 100/120/220/240 V AC 50/60 Hz, 10 W
Selectivity 65 dB (+400 KHz) (General Export Model)
Signal-to-Noise Ratio Mono 80 dB (IHF-A curve), 220 V, AC 50 Hz, 14 W (Europe)
Stereo 75 dB (IHF-A curve) 240 V, AC 50 Hz, 14 W (U.K./Australia)
Harmonic distortion Mono 0.1%, Stereo 0.3% | Dimensions (W x H x D) 432 x 72 x 289 mm
Stereo Separation 40 dB (1 kHz) (17" x 2-13/16" x 11-3/8")
Frequency Response 30 Hz — 15 kHz, +0 dB, —3 dB Weight 3.2 kg (70.4 lbs) net
Subcarrier Product Ratio 60 dB Standard Accessories AM Loop Antenna
Output Level/Output Impedance 775 mV/2.2 k ohms “T’’-type FM antenna (300 0) except Europe
Input-output connection cords
CAUTION
,
¢
Improvements
may
result
in
specifications
or
features
changing
without
.
notice.
¢
Photos
and
illustration
may
differ
slightly
from
production
models.
Z\ Parts marked with this sign are safety critical components. They must
always be replaced with identical components — refer to the appropriate
parts list to ensure exact replacement.
2 VOLTAGE CONVERSION
(FOR GENERAL EXPORT MODELS ONLY)
AC VOLTAGE SELECTION
This unit operates on 110 volts or 220 volts AC. 110V 220V
ie
ae
=
ae
ra
ded
2
this
ude:
wne
ewiteh
ne
Slide
the
ate
-
.
LEFT
position
as
RIGHT
position
as
switch matches your line voltage. If not, it must
be set to your voltage in accordance with the
following direction.
drawing as below drawing as_ below
AC SELECTOR
mu pom
© Ll ©
