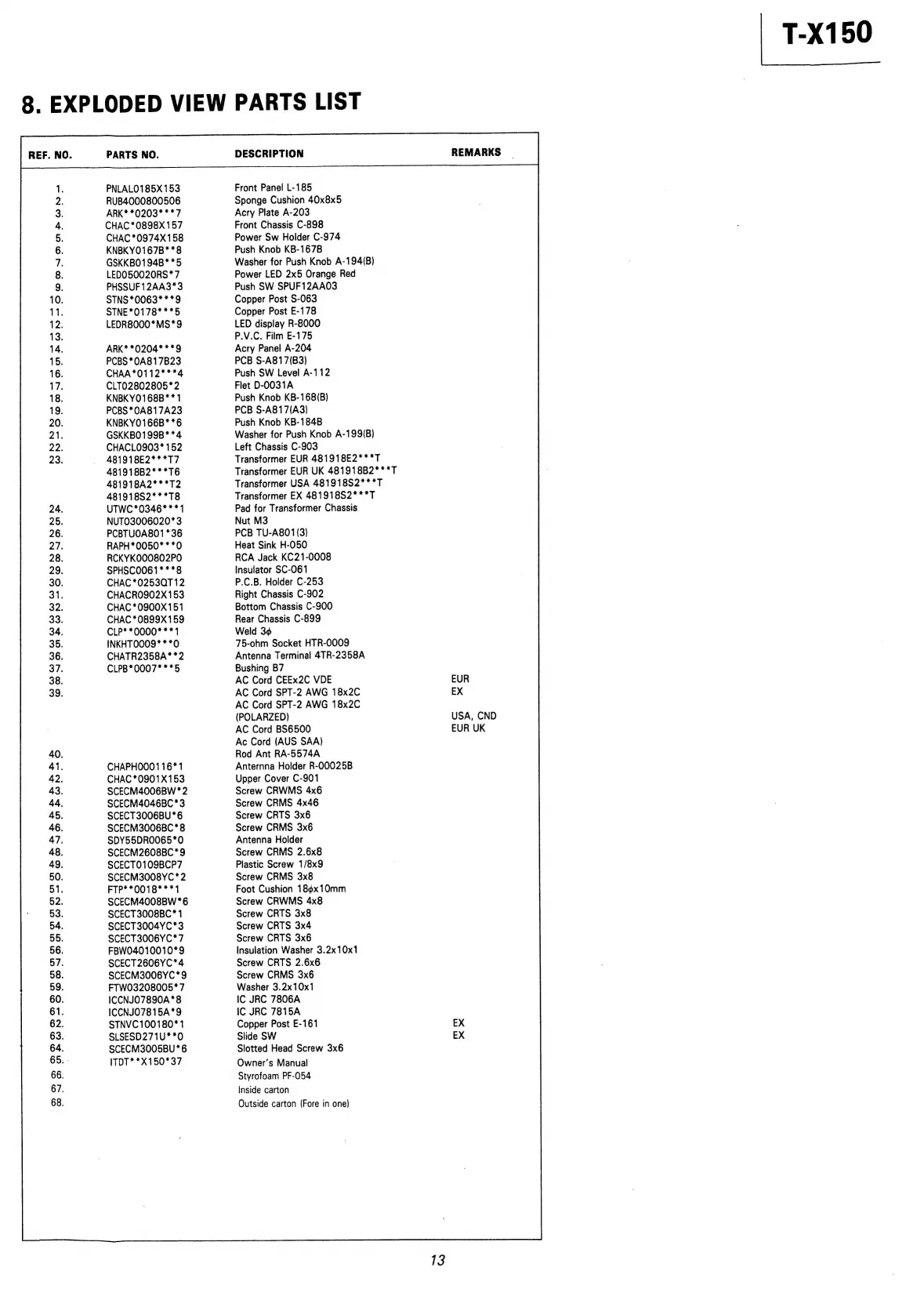

8.
EXPLODED
VIEW
PARTS
LIST
REF. NO.
Oo SSP Oe ta
PARTS NO.
PNLALO185X 153
RUB4000800506
ARK* *0203* **7
CHAC*0898X157
CHAC *0974X158
KNBKY0167B**8
GSKKB0194B**5
LEDO50020RS*7
PHSSUF12AA3*3
STNS*0063* **9
STNE*0178***5
LEDR8000*MS*9
ARK* *0204***9
PCBS *0A817B23
CHAA*0112***4
CLT02802805*2
KNBKY0168B** 1
PCBS *0A817A23
KNBKY0166B**6
GSKKB0199B* *4
CHACLO903* 152
481918E2***T7
481918B2***T6
481918A2***T2
481918S2***T8
UTWC*0346***1
NUT03006020*3
PCBTUOA801 *36
RAPH *0050* **0
RCKYKO00802P0
SPHSC0061***8
CHAC*02530T12
CHACRO902X153
CHAC*0900X151
CHAC*0899X159
CLP* *0000* ** 1
INKHTOO09* * *0
CHATR2358A * *2
CLPB*0007***5
CHAPHO00116* 1
CHAC *0901X153
SCECM4006BW * 2
SCECM4046BC *3
SCECT3006BU*6
SCECM3006BC*8
SDY55DRO065*0
SCECM2608BC *9
SCECTO109BCP7
SCECM3008YC*2
FTP**0018***1
SCECM4008BW *6
SCECT3008BC* 1
SCECT3004YC*3
SCECT3006YC*7
FBW04010010*9
SCECT 2606YC*4
SCECM3006YC*9
FTW03208005*7
ICCNJO7890A *8
ICCNJO7815A*9
STNVC100180* 1
SLSESD271U**0
SCECM3005BU*6
ITDT* *X150*37
DESCRIPTION
Front Panel L-185
Sponge Cushion 40x8x5
Acry Plate A-203
Front Chassis C-898
Power Sw Holder C-974
Push Knob KB-167B
Washer for Push Knob A-194(B)
Power LED 2x5 Orange Red
Push SW SPUF12AA03
Copper Post S-063
Copper Post E-178
LED display R-8000
P.V.C. Film E-175
Acry Panel A-204
PCB S-A817(B3)
Push SW Level A-112
Flet D-O031A
Push Knob KB-168(B)
PCB S-A817(A3)
Push Knob KB-184B
Washer for Push Knob A-199(B)
Left Chassis C-903
Transformer EUR 481918E2***T
Transformer EUR UK 481918B2***T
Transformer USA 481918S2***T
Transformer EX 481918S2***T
Pad for Transformer Chassis
Nut M3
PCB TU-A801(3)
Heat Sink H-050
RCA Jack KC21-0008
Insulator SC-061
P.C.B. Holder C-253
Right Chassis C-902
Bottom Chassis C-900
Rear Chassis C-899
Weld 3¢
75-ohm Socket HTR-0009
Antenna Terminal 4TR-2358A
Bushing B7
AC Cord CEEx2C VDE
AC Cord SPT-2 AWG 18x2C
AC Cord SPT-2 AWG 18x2C
(POLARZED)
AC Cord BS6500
Ac Cord (AUS SAA)
Rod Ant RA-5574A
Anternna Holder R-00025B
Upper Cover C-901
Screw CRWMS 4x6
Screw CRMS 4x46
Screw CRTS 3x6
Screw CRMS 3x6
Antenna Holder
Screw CRMS 2.6x8
Plastic Screw 1/8x9
Screw CRMS 3x8
Foot Cushion 18¢x10mm
Screw CRWMS 4x8
Screw CRTS 3x8
Screw CRTS 3x4
Screw CRTS 3x6
Insulation Washer 3.2x10x1
Screw CRTS 2.6x6
Screw CRMS 3x6
Washer 3.2x10x1
IC JRC 7806A
IC JRC 7815A
Copper Post E-161
Slide SW
Slotted Head Screw 3x6
Owner's Manual
Styrofoam PF-054
Inside carton
Outside carton (Fore in one)
13
REMARKS _
EUR
EX
USA, CND
EUR UK
EX
EX
T-X150
