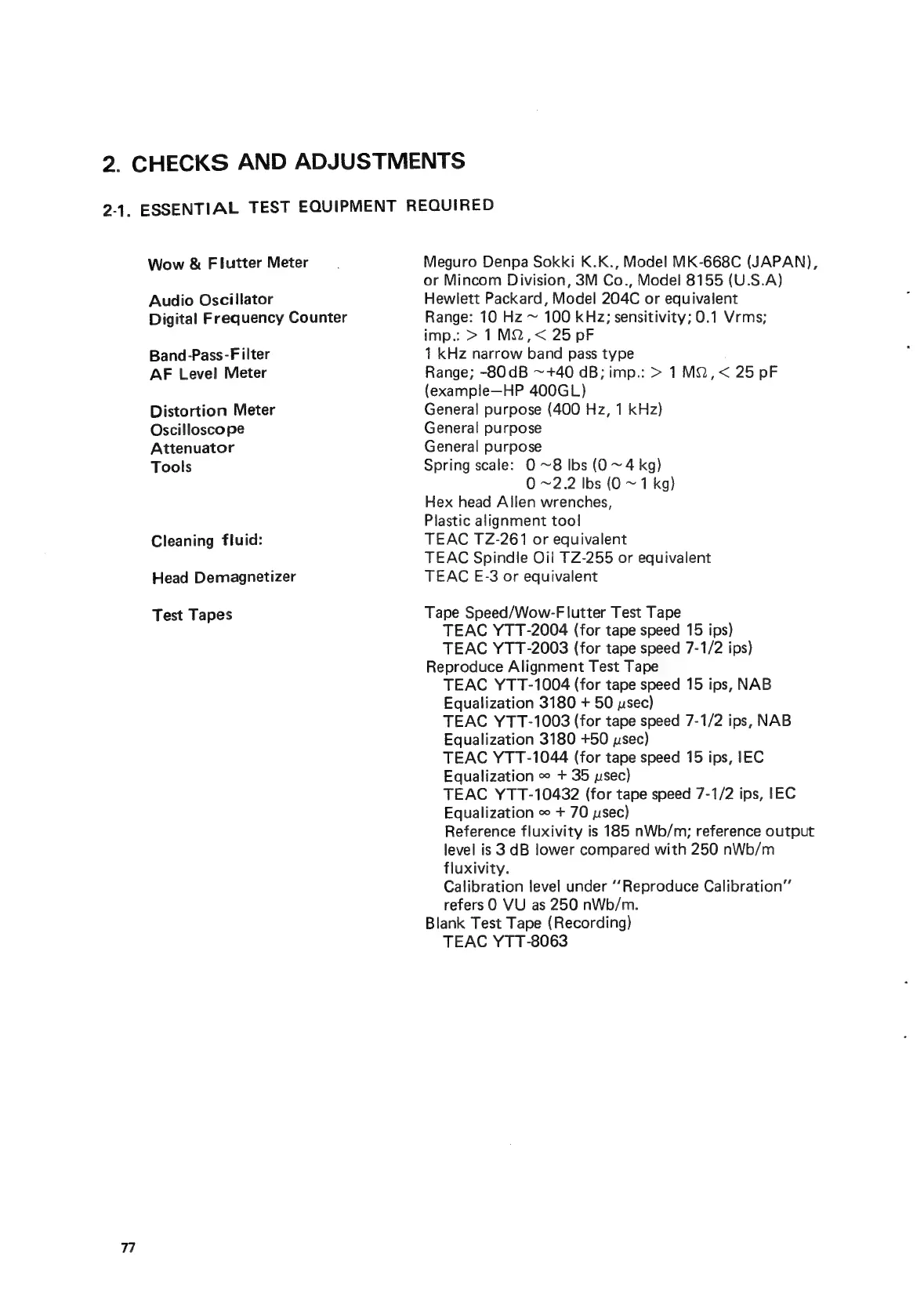

2.
CHECKS
AND
ADJUSTMENTS
2-1.
ESSENTIAL
TEST
EQUIPMENT
REQUIRED
77
Wow
&
Flutter
Meter
Audio Oscillator
Digital Frequency Counter
Band-Pass-Filter
AF Level Meter
Distortion Meter
Oscilloscope
Attenuator
Tools
Cleaning fluid:
Head Demagnetizer
Test Tapes
Meguro Denpa Sokki K.K., Model MK-668C (JAPAN),
or Mincom Division, 3M Co., Model 8155 (U.S.A)
Hewlett Packard, Model 204C or equivalent
Range: 10 Hz ~ 100 kHz; sensitivity; 0.1 Vrms;
imp. > 1MQ,< 25 pF
1 kHz narrow band pass type
Range; -80dB ~+40 dB; imp.: > 1 MQ, < 25 pF
(example—HP 400GL)
General purpose (400 Hz, 1 kHz)
General purpose
General purpose
Spring scale: O ~8 Ibs (0 ~4 kg)
0 ~2.2 Ibs (0 ~ 1 kg)
Hex head Allen wrenches,
Plastic alignment tool
TEAC TZ-261 or equivalent
TEAC Spindle Oil TZ-255 or equivalent
TEAC E-3 or equivalent
Tape Speed/Wow-F lutter Test Tape
TEAC YTT-2004 (for tape speed 15 ips)
TEAC YTT-2003 (for tape speed 7-1/2 ips)
Reproduce Alignment Test Tape
TEAC YTT-1004 (for tape speed 15 ips, NAB
Equalization 3180 + 50 usec)
TEAC YTT-1003 (for tape speed 7-1/2 ips, NAB
Equalization 3180 +50 usec)
TEAC YTT-1044 (for tape speed 15 ips, IEC
Equalization © + 35 psec)
TEAC YTT-10432 (for tape speed 7-1/2 ips, IEC
Equalization - + 70 usec)
Reference fluxivity is 185 nWb/m; reference output
level is 3 dB lower compared with 250 nWb/m
fluxivity.
Calibration level under “Reproduce Calibration”
refers 0 VU as 250 nWb/m.
Blank Test Tape (Recording)
TEAC YTT-8063
