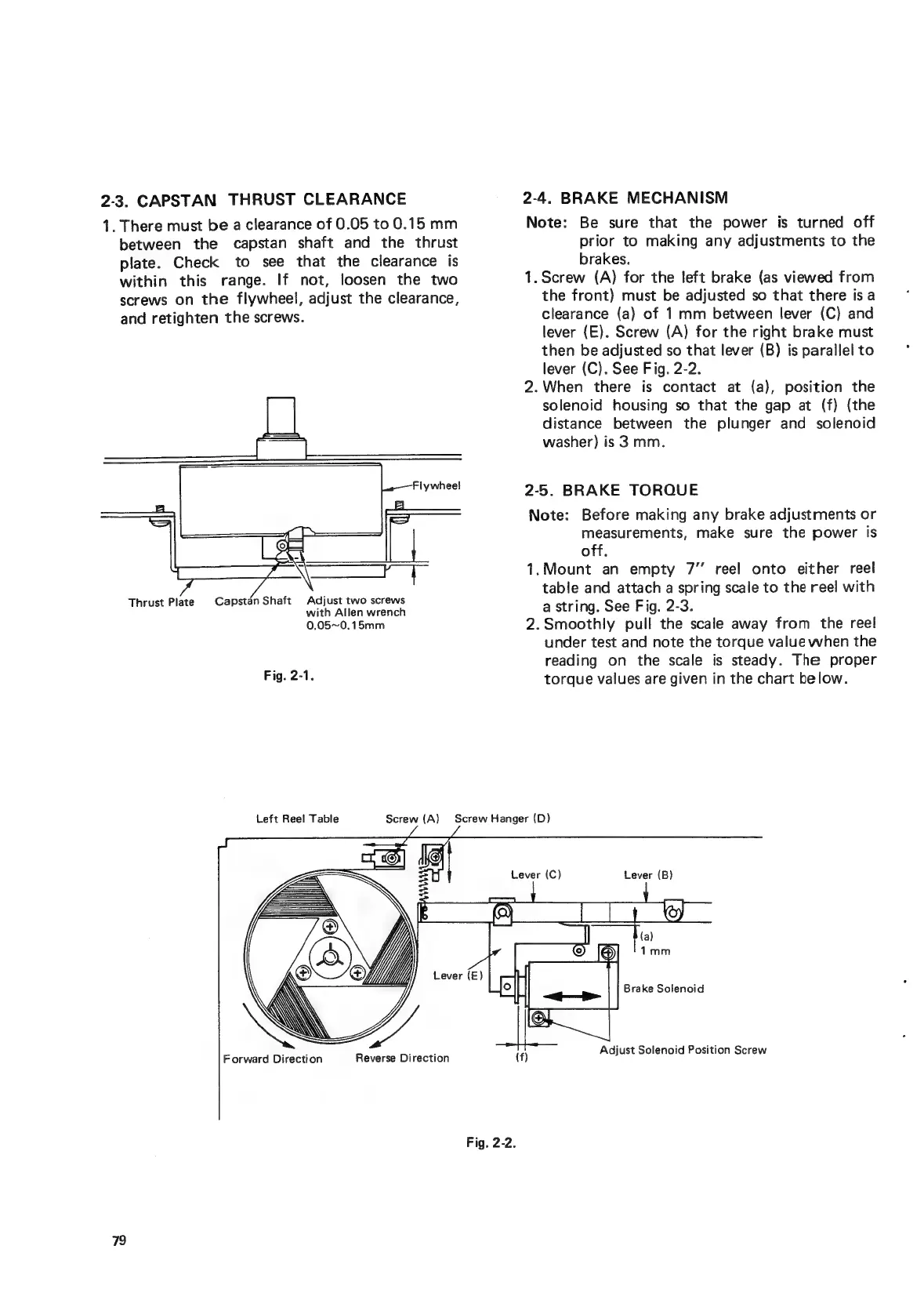

2-3.
CAPSTAN
THRUST
CLEARANCE
1.
There
must
be
a
clearance
of
0.05
to
0.15
mm
between
the
capstan
shaft
and
the
thrust
plate.
Check
to
see
that
the
clearance
is
within
this
range.
If
not,
loosen
the
two
screws
on
the
flywheel,
adjust
the
clearance,
and
retighten
the
screws.
Thrust
Plate
CapstanShaft
Adjust
two
screws
with
Allen
wrench
2-4.
BRAKE
MECHANISM
Note:
Be
sure
that
the
power
is
turned
off
prior
to
making
any
adjustments
to
the
brakes.
.Screw
(A)
for
the
left
brake
(as
viewed
from
the
front)
must
be
adjusted
so
that
there
isa
clearance
(a)
of
1
mm
between
lever
(C)
and
lever
(E).
Screw
(A)
for
the
right
brake
must
then
be
adjusted
so
that
lever
(B)
is
parallel
to
lever
(C).
See
Fig.
2-2.
2.
When
there
is
contact
at
(a),
position
the
solenoid
housing
so
that
the
gap
at
(f)
(the
distance
between
the
plunger
and
solenoid
washer)
is
3
mm.
teak
2-5.
BRAKE
TORQUE
Note:
Before
making
any
brake
adjustments
or
measurements,
make
sure
the
power
is
off.
1.Mount
an
empty
7”
reel
onto
either
reel
table
and
attach
a
spring
scale
to
the
reel
with
a
string.
See
Fig.
2-3.
0.05~0,
15mm
2.Smoothly
pull
the
scale
away
from
the
reel
under
test
and
note
the
torque
value
when
the
:
reading
on
the
scale
is
steady.
The
proper
Fig.
2-1.
torque
values
are
given
in
the
chart
below.
Left
Reel
Table
Screw
(A)
Screw
Hanger
(D)
Adjust
Solenoid
Position
Screw
Reverse
Direction
(f)
Forward
Direction
Fig.
2-2.
