Teac UD-501 - Connecting Equipment

8
LRLR

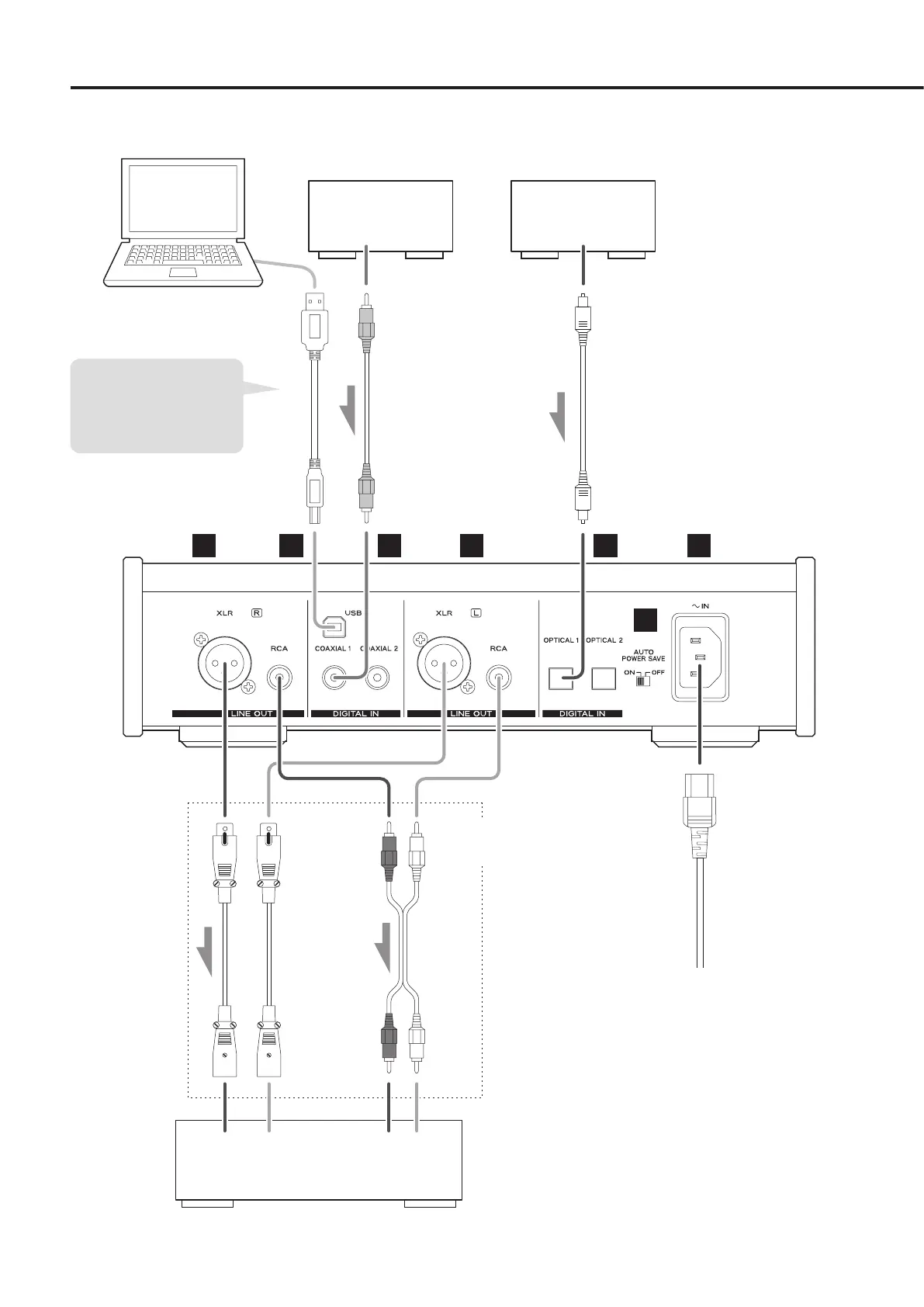

Connect a set of
cables of one type
or the other.
If using a Windows OS,
install the dedicated
driver on the computer
before connecting this
unit to it. (page 13)
Personal computer
Audio input
(LINE IN, etc.)
DIGITAL OUT
(COAXIAL)
Digital audio
output device
Digital audio
output device
DIGITAL OUT
(OPTICAL)
A
A
RCA coaxial digital cable
USB cable
Optical digital cable
Included power cord
B C D
E
RCA audio cable
XLR cable
Stereo amplier or powered speaker
F
The polarity of the
XLR connectors can
be set so that either
2 or 3 is HOT (p.16).
Wall socket
Connecting equipment
