V-7000/V-5000

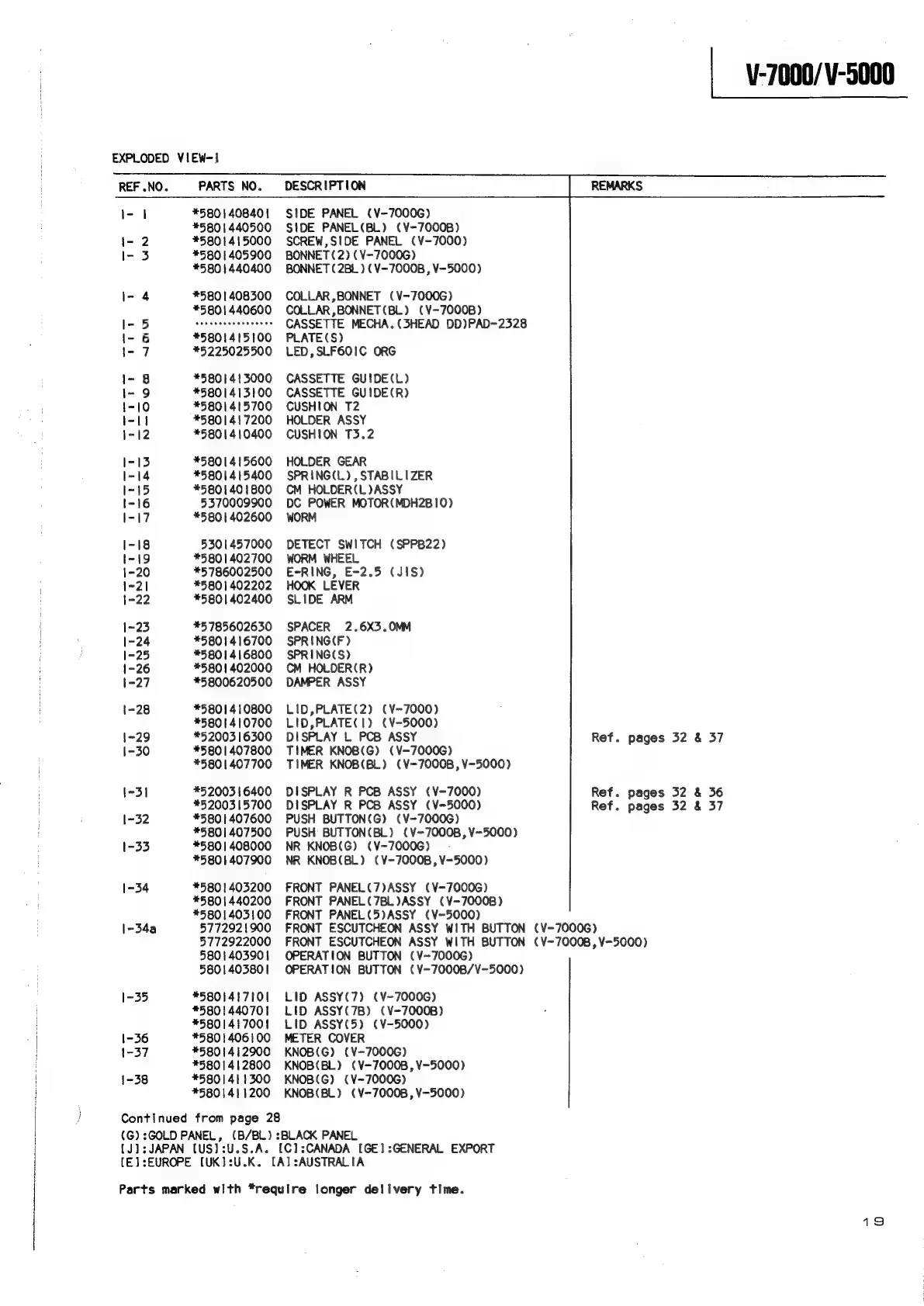

EXPLODED VIEW-1
REF .NO. PARTS NO. DESCRIPTION REMARKS
I- | *5801408401 SIDE PANEL (V¥-7000G)
*5801440500 SIDE PANEL(BL) (V¥-7000B)
I- 2 *5801415000 SCREW,SIDE PANEL (V-7000)
I- 3 *5801405900 BONNET(2) (V-7000G)
*580 1440400
BONNET ( 2BL ) (V-7000B , Y-5000)
I- 4 *5801408300 COLLAR,BONNET (V-70006)
*5801440600 COLLAR,BONNET(BL) (¥-7000B)
[= 5 ee Paseo snes atene CASSETTE MECHA. (3HEAD DD)PAD-2328
I- 6 *5801415100 PLATE(S)
\- 7 *5225025500 LED,SLF60IC ORG
I- 8 *5801413000 CASSETTE GUIDE(L)
I- 9 *5801413100 CASSETTE GUIDE(R)
1-10 *5801415700 CUSHION T2
I-11 *5801417200 HOLDER ASSY
1-12 *5801410400 CUSHION T3.2
I-13 *5801415600 HOLDER GEAR
I-14 *5801415400 SPRING(L), STABILIZER
I-15 *5801401800 CM HOLDER(L)ASSY
1-16 5370009900 DC POWER MOTOR(MDH2B10)
I-17 *5801402600 WORM
1-18 5301457000 DETECT SWITCH (SPPB22)
1-19 *5801402700 WORM WHEEL
1-20 *5786002500 E-RING, E-2.5 (JIS)
1-2] *5801402202 HOOK LEVER
1-22 *5801402400 SLIDE ARM
I-23 *5785602630 SPACER 2.6X3.0MM
1-24 *5801416700 SPRING(F)
1-25 *5801416800 SPRING(S)
1-26 *5801402000 CM HOLDER(R)
1-27 *5800620500 DAMPER ASSY
1-28 *5801410800 LID,PLATE(2) (¥-7000)
*5801410700 LID,PLATE(1) (V-5000)
1-29 *5200316300 DISPLAY L PCB ASSY Ref. pages 32 & 37
1-30 *5801407800 TIMER KNOB(G) (V-7000G)
*5801407700 TIMER KNOB(BL) (V-7000B, V-5000)
131 *5200316400 DISPLAY R PCB ASSY (V-7000) Ref. pages 32 & 36
*5200315700 DISPLAY R PCB ASSY (V-5000) Ref. pages 32 & 37
I~32 *5801407600 PUSH BUTTON(G) (V-7000G)
*5801407500 PUSH BUTTON(BL) (V~7000B, V-5000)
1-35 *5801408000 NR KNOB(G) (V-7000G) -
*5801407900 NR KNOB(BL) (V-7000B, V-5000)
1-34 *5801403200 FRONT PANEL(7)ASSY (V-7000G)
*5801440200 FRONT PANEL(7BL)ASSY (V¥-70008)
*5801403100 FRONT PANEL(5)ASSY (V-5000)
|-34a 5772921900 FRONT ESCUTCHEON ASSY WITH BUTTON (V-70006)
5772922000 FRONT ESCUTCHEON ASSY WITH BUTTON (V~7000B, V-5000)
580140390| OPERATION BUTTON (V-7000G)
5801403801 OPERATION BUTTON (V-7000B/V¥-5000)
1-35 *5801417101 LID ASSY(7) (V~-7000G)
*5801440701 LID ASSY(7B) (V-7000B)
*5801417001 LID ASSY(5) (V-5000)
|-36 *5801406100 METER COVER
1-37 *5801412900 KNOB(G) (V-7000G)
*5801412800 KNOB(BL) (V-7000B, V¥-5000)
1-38 *5801411300 KNOB(G) (V-7000G)
*5801411200 KNOB(BL) (V-7000B, ¥-5000)
Continued from page 28
(G) :GOLD PANEL, (B/BL) :BLACK PANEL
[J]:JAPAN (US1]1:U.S.A. [C]:CANADA [GE]:GENERAL EXPORT
(E]:EUROPE [UK}:U.K. [A] sAUSTRALIA
Parts marked with *require longer delivery time.
193
