Teac V-5000 - Page 25

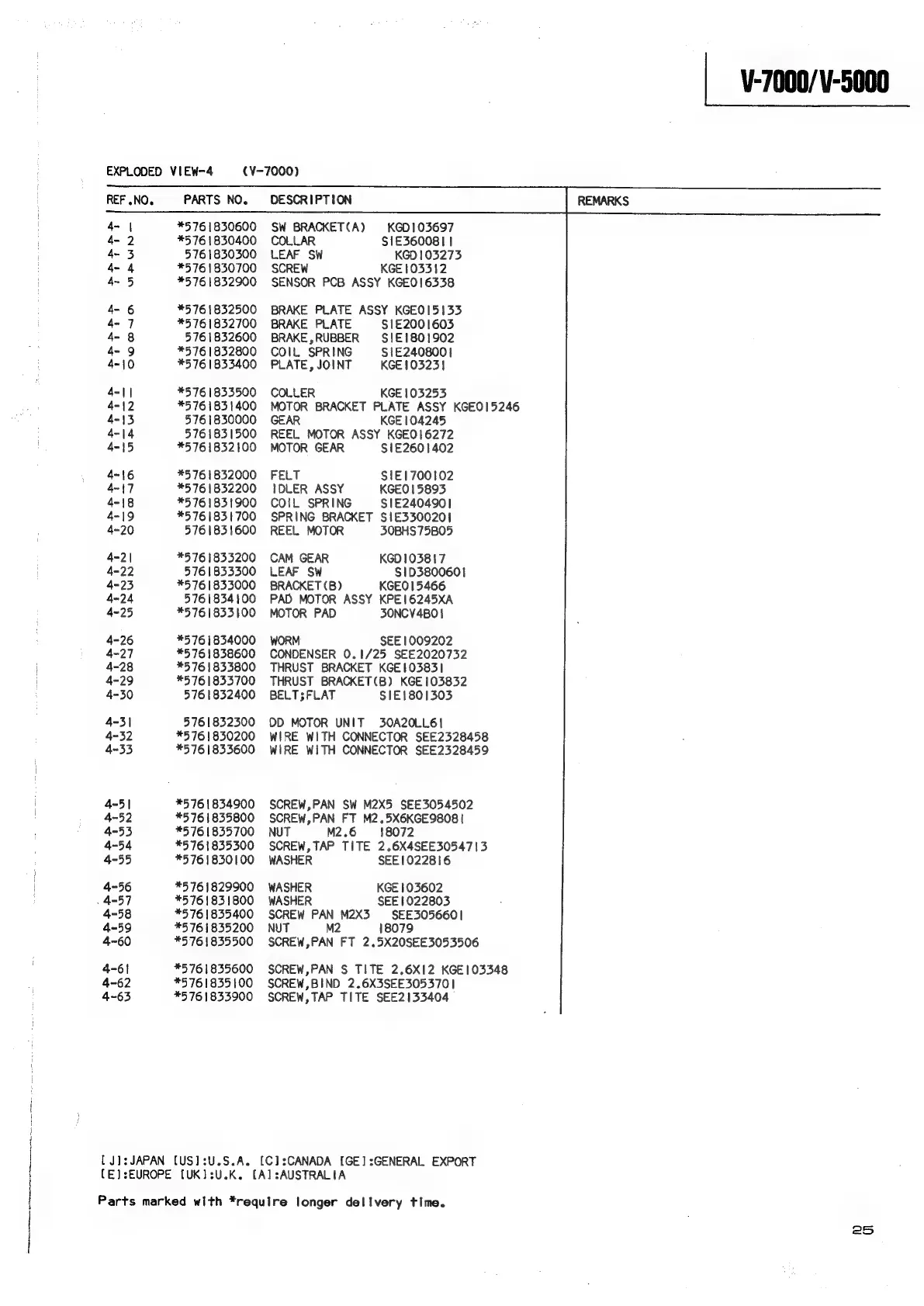

EXPLODED VIEW-4
?
CWOOYWHA VWRUWN—
4-|
REF .NO.
PARTS NO.
*576 1830600
*576 1830400
576 1830300
*576 1830700
*576 1832900
*576 1832500
*576 1832700
576 | 832600
*576 1832800
*576 1833400
*576 1833500
*576 1831400
576 1830000
5761831500
*576 1832100
*576 1832000
*576 1832200
*576 1831900
*576 1831700
5761831600
*576 1833200
5761833300
*5 761833000
5761834100
*576 1833100
*576 1834000
*576 1838600
*576 1833800
*576 1833700
576 1832400
576 | 832300
*576 1830200
*576 1833600
*576 1834900
*576 1835800
*576 1835700
*576 1835300
*576 1830100
*5 761829900
*576 1831800
*576 1835400
*576 1835200
*576 |835500
*576 1835600
*5761835 100
*576 1833900
[J}:JAPAN (US1:U.S.A.
CE]:EUROPE [UK]:U.K.
(V-7000)
DESCRIPTION
SW BRACKET(A) KGD103697
COLLAR $1E360081 |
LEAF SW KGD 103273
SCREW KGE 103312
SENSOR PCB ASSY KGE0!16338
BRAKE PLATE ASSY KGEOI5133
BRAKE PLATE $1E2001603
BRAKE,RUBBER $!E1801902
COIL SPRING S1E2408001
PLATE, JOINT KGE 103231
COLLER KGE 103253
MOTOR BRACKET PLATE ASSY KGE015246
GEAR KGE 104245
REEL MOTOR ASSY KGEO16272
MOTOR GEAR $1&260 1402
FELT S1E1700102
IDLER ASSY KGE0 15893
COIL SPRING $1E240490]
SPRING BRACKET S1E£3300201
REEL MOTOR 30BHS75B05
CAM GEAR KGD 103817
LEAF SW $1D3800601
BRACKET (B) KGE0 15466
PAD MOTOR ASSY KPEI6245XA
MOTOR PAD 3ONCV4B0 |
WORM: SEE 1009202
CONDENSER 0.1/25 SEE2020732
THRUST BRACKET KGE103831
THRUST BRACKET(B) KGE 103832
BELT; FLAT S1E1801303
OD MOTOR UNIT 30A20LL61
WIRE WITH CONNECTOR SEE2328458
WIRE WITH CONNECTOR SEE2328459
SCREW,PAN SW M2X5 SEE3054502
SCREW,PAN FT M2.5X6KGE9808 |
NUT M2.6 18072
SCREW, TAP TITE 2.6X4SEE3054713
WASHER SEE 1022816
WASHER KGE 103602
WASHER SEE 1022803
SCREW PAN M2X3 SEE3056601
NUT M2 18079
SCREW,PAN FT 2.5X20SEE3053506
SCREW,PAN S TITE 2.6X12 KGE103348
SCREW,BIND 2,6X3SEE3053701
SCREW,TAP TITE SEE2133404
(C]:CANADA [GE]:GENERAL EXPORT
(Al :AUSTRALIA
Parts marked with *require longer delivery time.
V-7000/V-5000
25
