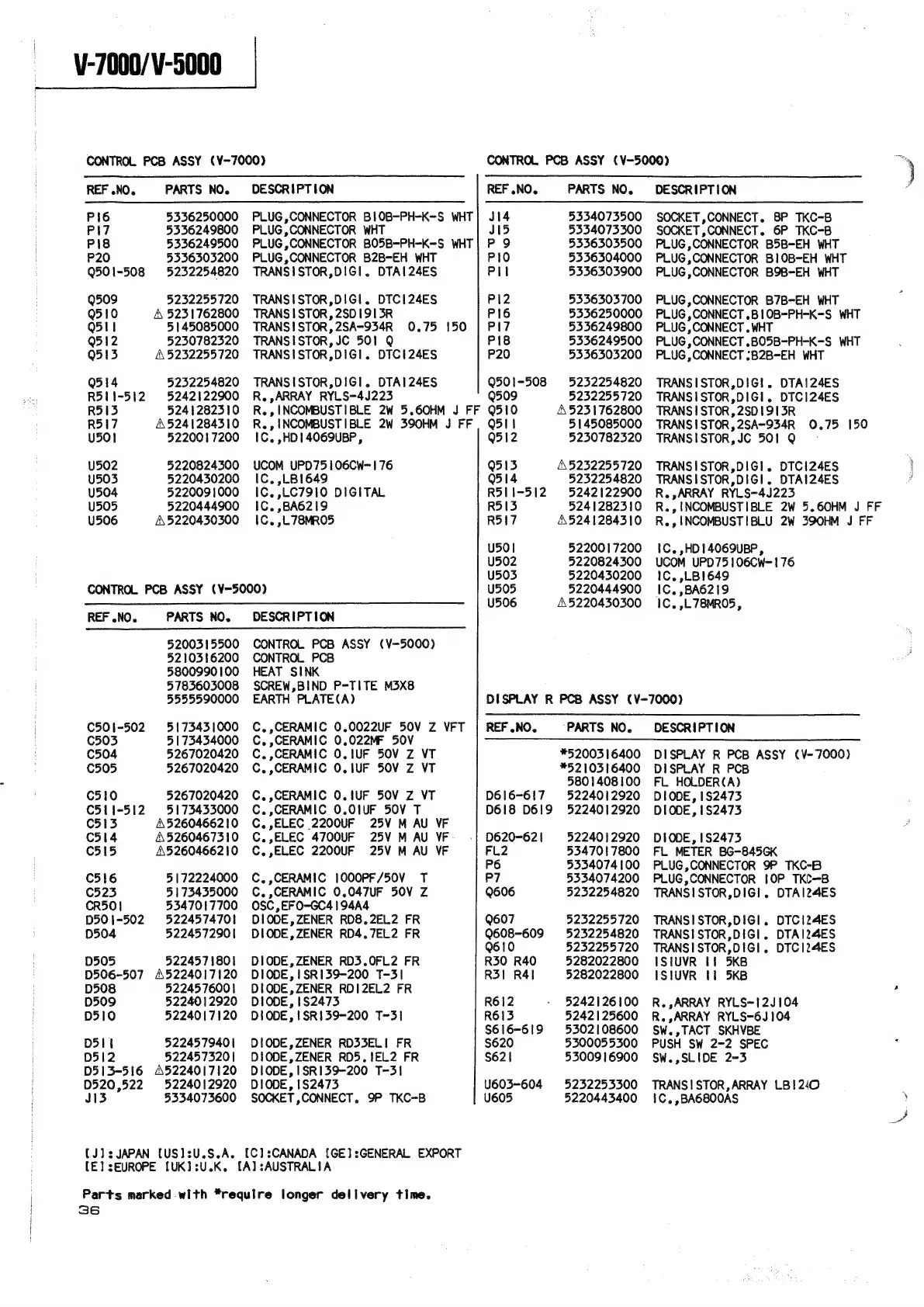

V-7000/V-5000
CONTROL PCB ASSY (V-7000)
REF .NO. PARTS NO. DESCRIPTION
P16 5336250000 PLUG,CONNECTOR BIOB-PH-K~S WHT
PI7 5336249800 PLUG,CONNECTOR WHT
PI8 5336249500 PLUG,CONNECTOR BOSB-PH-K-S WHT
P20 5336303200 PLUG,CONNECTOR B2B-EH WHT
Q501-508 5232254820 TRANSISTOR,DIGI. DTAI24ES
Q509 5232255720 TRANSISTOR,DIGI. DTCI24ES
Q510 A 5231762800 TRANSISTOR, 2SDI913R
Q511 5145085000 TRANSISTOR,2SA-934R 0.75 150
Q512 5230782320 TRANSISTOR,JC 501 Q
Q513 45232255720 TRANSISTOR,DIGI. DTCI24ES
Q514 5232254820 TRANSISTOR,DIGI. DTAI24ES
R511-512 5242122900 R.,ARRAY RYLS-4J223
R513 5241282310 R.,INCOMBUSTIBLE 2W 5.60HM J FF
R517 A5241284310 R.,INCOMBUSTIBLE 2W 390HM J FF
U501 5220017200 IC.,HDI4069UBP,
Uu502 5220824300 UCOM UPD75106CW-176
U503 5220430200 IC.,LBI649
Uu504 5220091000 1IC.,LC7910 DIGITAL
U505 5220444900 IC.,BA6219
U506 A5220430300 IC.,L78MRO5
CONTROL PCB ASSY (¥-5000)
REF .NO. PARTS NO. DESCRIPTION
5200315500 CONTROL PCB ASSY (V-5000)
5210316200 CONTROL PCB
5800990100 HEAT SINK
5783603008 SCREW,BIND P-TITE M3X8
5555590000 EARTH PLATE(A)
C501-502 5173431000 C.,CERAMIC 0.0022UF 50V Z VFT
C503 5173434000 C.,CERAMIC 0.022MF 50V
C504 5267020420 C.,CERAMIC O.IUF 50V Z VT
C505 5267020420 C.,CERAMIC O.1UF 50V Z VT
C510 5267020420 C.,CERAMIC O.IUF 50V Z VT
C511-512 5173433000 C.,CERAMIC O.OIUF 50V T
C513 A5260466210 C.,ELEC 2200UF 25V M AU VF
C514 A5260467310 C.,ELEC 4700UF 25V M AU VF
C515 A5260466210 C.,ELEC 2200UF 25V M AU VF
C516 5172224000 C,,CERAMIC |O00PF/50V T
C523 5173435000 C.,CERAMIC 0.047UF 50V Z
CR501 5347017700 OSC,EFO-GC4194A4
D501-502 522457470! DIODE,ZENER RD8.2EL2 FR
D504 5224572901 DIODE,ZENER RD4.7EL2 FR
D505 5224571801 DIODE,ZENER RD3.0FL2 FR
D506-507 A5224017120 DIODE, 1ISR1I39-200 T-31
D508 5224576001 DIODE,ZENER RDI2EL2 FR
0509 5224012920 DIODE, 1S2473
D510 5224017120 DIODE, 1SR1I359-200 T-3)
D5II 5224579401 DIODE,ZENER RD33EL! FR
D512 5224573201 DIODE,ZENER RD5.1EL2 FR
D513-516 A5224017120 DIODE,ISRI39-200 T-31
D520,522 5224012920 DIODE, 1S2473
J13 5334073600 SOCKET,CONNECT. 9P TKC-B
(J]3 JAPAN [US]:U.S.A. [C]:CANADA [GE]:GENERAL EXPORT
[E] sEUROPE [UK]:U.K.
[A] sAUSTRALIA
Parts marked with *require longer delivery time.
36
CONTROL PCB ASSY (V-5000)
REF .NO. PARTS NO.
J14 5334073500
JIS 5334073300
P 9 5336303500
PIO 5336304000
Pil 5336303900
Pl2 5336303700
PI6 5336250000
PI7 5336249800
P18 5336249500
P20 5336303200
Q501-508 5232254820
Q509 5232255720
Q510 45231762800
Q5l1 5145085000
Q512 5230782320
Q515 45232255720
Q514 5232254820
R511-512 5242122900
R513 5241282310
R517 A5241284310
U501 5220017200
U502 5220824300
U505 5220430200
U505 5220444900
U506 45220430300
DESCRIPTION
SOCKET ,CONNECT. 8P TKC-B
SOCKET ,CONNECT. 6P TKC-B
PLUG,CONNECTOR B5B-EH WHT
PLUG,CONNECTOR BIOB-EH WHT
PLUG,CONNECTOR B9B-EH WHT
PLUG,CONNECTOR B7B-EH WHT
PLUG, CONNECT .BIOB-PH-K-S WHT
PLUG , CONNECT . WHT
PLUG ,CONNECT .BOSB-PH-K-S WHT
PLUG, CONNECT .B2B-EH WHT
TRANSISTOR,DIG!. DTAI24ES
TRANSISTOR,DIGI. DTCI24ES
TRANSISTOR, 2SD1913R
TRANSISTOR,2SA-934R 0.75 150
TRANSISTOR, JC 501 Q
TRANSISTOR,DIGI. DTCI24ES
TRANSISTOR,DIGI. DTAIZ4ES
R.,ARRAY RYLS~-4J223
R., INCOMBUSTIBLE 2W 5.60HM J FF
R., INCOMBUSTIBLU 2W 390HM J FF
IC. ,HD 1 4069UBP,
UCOM UPD75 1 06CW-176
IC. ,LBI649
IC. ,BA6219
IC. ,L78MRO5,
DISPLAY R PCB ASSY (V-7000)
REF .NO. PARTS NO. DESCRIPTION
¥*5200316400 DISPLAY R PCB ASSY (V-7000)
*5210316400 DISPLAY R PCB
5801408100 FL HOLDER(A)
D616-617 5224012920 DIODE, 1S2473
D618 D619 5224012920 DIODE, 1S2473
0620-621 5224012920 DIODE, 1S2473
FL2 5347017800 FL METER BG-845GK
P6 5334074100 PLUG,CONNECTOR 9P TKC-B
P7 5334074200 PLUG,CONNECTOR I0P TKC—B
Q606 5232254820 TRANSISTOR,DIGI. DTAI2Z4ES
Q607 5232255720 TRANSISTOR,DIGI. DTCI24ES
Q608-609 5232254820 TRANSISTOR,DIGI. DTAI24ES
Q610 5232255720 TRANSISTOR,DIGI. DTCI24ES
R30 R40 5282022800 ISIUVR II 5KB
R31 R4i 5282022800 ISIUVR II 5KB
R612 5242126100 R.,ARRAY RYLS-12J104
R613 5242125600 R.,ARRAY RYLS-6J104
$616-619 5302108600 SW.,TACT SKHVBE
$620 5300055300 PUSH SW 2-2 SPEC
$621 5300916900 SW.,SLIDE 2-3
U603-604 5232253300 TRANSISTOR,ARRAY LBI2/O
U605 5220443400 1C.,BA6800AS
