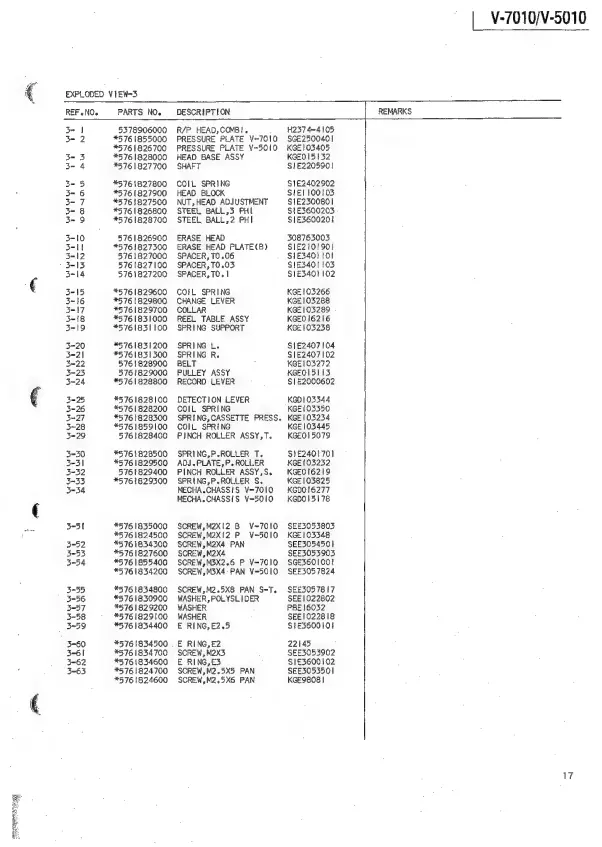

| _V-7010/V-5010
EXPLODED YIEW=3
REFNO. PARTS NO. DESCRIPTEON REMARKS
3~ J 5378906000 R/P HEAD,COMB!. H237 4~4 105 |
ae *576)855000 PRESSURE PLATE Y-7010 $SGE2500401
*5761826700 PRESSURE PLATE Y=5010 KGEI03405
3- 3 *5761828000 HEAD BASE ASSY KGEO15 132
3- 4 *5761827700 SHAFT S!E220590 |
3- 5 *5761827800 COIL SPRING $1E2402902
3- 6 *576(827900 HEAD BLOCK SIE! 100103
weap. *5761827500 NUT,HEAD ADJUSTMENT $1E230080 |
3- 8 *576(826800 STEEL BALL,3 PHI $1E3600203 -
3m 9 *5761828700 STEEL BALL,2 PH] $1E3600203
3-10 5761826900 ERASE HEAD 308763003
3-11 *576!1827300 ERASE HEAD PLATE(B) SIE2101901
3-12 5761827000 SPACER, TO.06 SiE3401 101
' 3-13 5761827100 SPACER,TO.03 SIE35401 03
3-14 5761827200 SPACER,TO. I $1£3401 102
3-15 *5761829600 COfL SPRING KGE 103266
3~ 16 *5761829800 CHANGE LEVER KGE 103288
3-17 *5761829700 COLLAR KGE103289 .
3-18 ¥5761831000 REEL TABLE ASSY KGEO 16216
3-19 *57618351100 SPRING SUPPORT KGE 103238
3-20 *5761831200 SPRING L. $1£2407 104
3-2) *5761831300 SPRING R. $1E2407102
3=22 576$828900 BELT KGE103272
3-23 5761829000 PULLEY ASSY KGEOI5113
3-24 *5761828800 RECORD LEVER $ | £2000602
€ 3-25 *5761828100 DETECTION LEVER KGDI 03344
3-26 *5761828200 COIL SPRING KGE103350
3-27 *576!828300 SPRING,CASSETTE PRESS. KGEI03234
3-28 *5761859100 COIL SPRENG KGE 103445
3=29 5761828400 PINCH ROLLER ASSY,T. KGEOI5079
3-30 *5761828500 SPRING,P.ROLLER T. S}E2401701
3-31 *5761829500 ADJ.PLATE,P.ROLLER KGE103232
3-32 5761829400 PINCH ROLLER ASSY,S. KGEOI6219
3433 *5761829300 SPREING,P.ROLLER S. KGE 103825
3-34 MECHA.CHASS!S ¥=7010 KGDO!6277
MECHA. CHASSIS ¥=50I0 KGNOI5178
3~5 *5761835000 SCREW,M2XI2 B V~70I10 SEE35053803
*5761824500 SCREW,M2XI2 P V=50I0 KGEI03348
3-52 *5761834300 SCREW,M2X4 PAN SEE305450|
3-53 *5761827600 SCREW,M2X4 SEE3053903
3-54 *5761855400 SCREW,M3X2.6 P Y-7010 SGE360100!
*5761834200 SCREW,M3X4-PAN V-50I0 SEE5057824
3+55 *5761834800 SCREW,M2.5X8 PAN S-T. SEE3057817
3-56 *5761830900 WASHER,POLYSLIDER SEE 1022802
3-57 *5761829200 WASHER PBE 16032
3-58 = *5761829100 WASHER SEE1022818
3-59 *5761834400 £E RING,E2.5 $1E3600101
3-60 *5761834500 . E RING,E2 22145
3-61 *5761834700 SCREW,M2X3 SEE3053902
3-62 *5761834600 & RING,E3 $1£3600 102
3-63 *5761824700 SCREW,M2.5X5 PAN SEE3053501
*5761824600 SCREW,M2.5X6 PAN KGE9808 |
17
